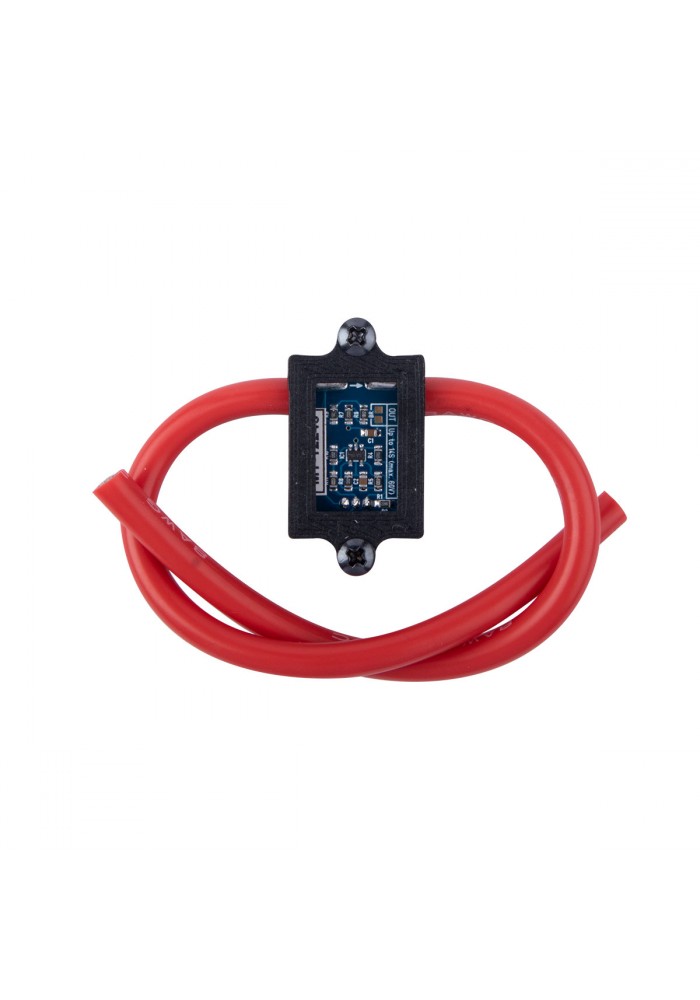

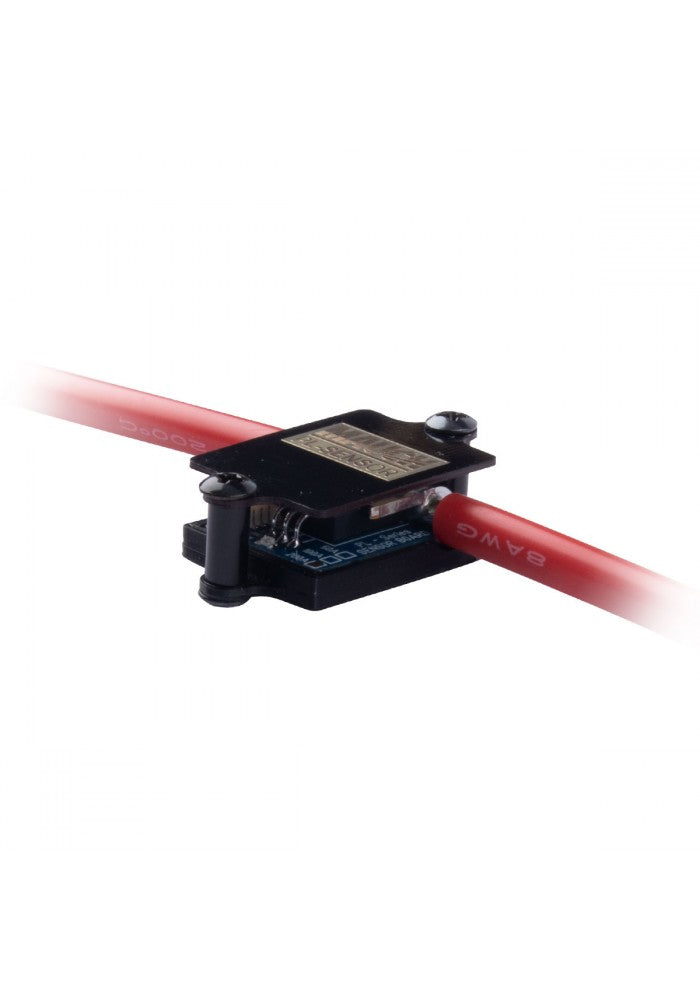

Mauch 004: PL-200/8 Sensor Board with CFK enclosure


SKU: MH004Categories: Power & converters

200A - Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS758-200U.


Voltage range is up to 20S (85V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the maual page for more details.


This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2.


Connected to the sensor are 2x15cm AWG8 wire (red) as a standard.

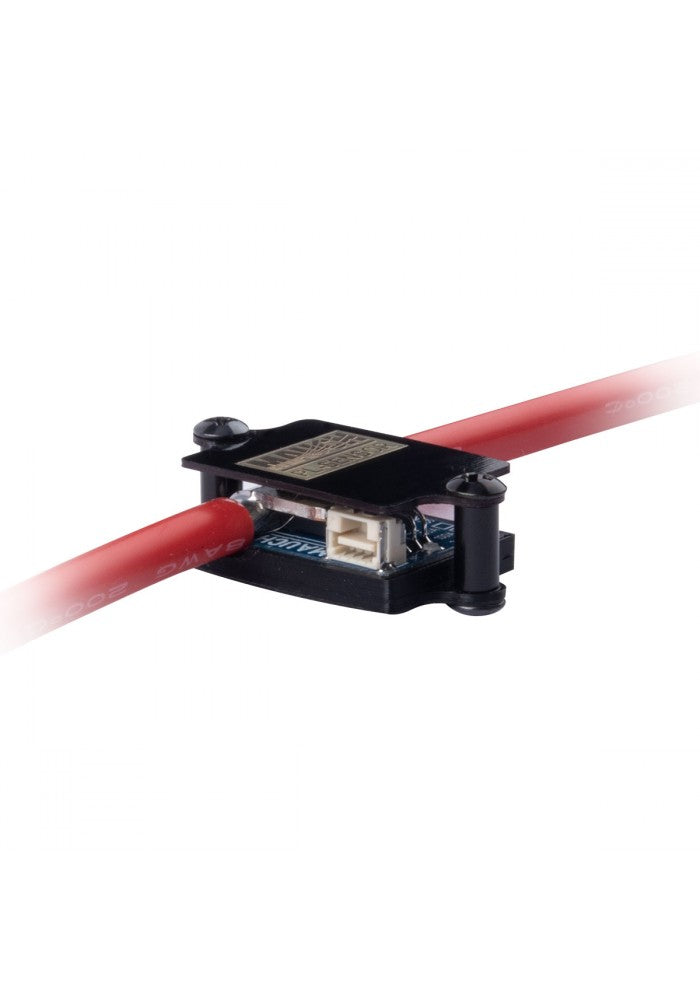

REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400)


Without CFK enclosure = 27.5 x 19.5 x 10.5mm / 39g (with 2x 15cm 8AWG)

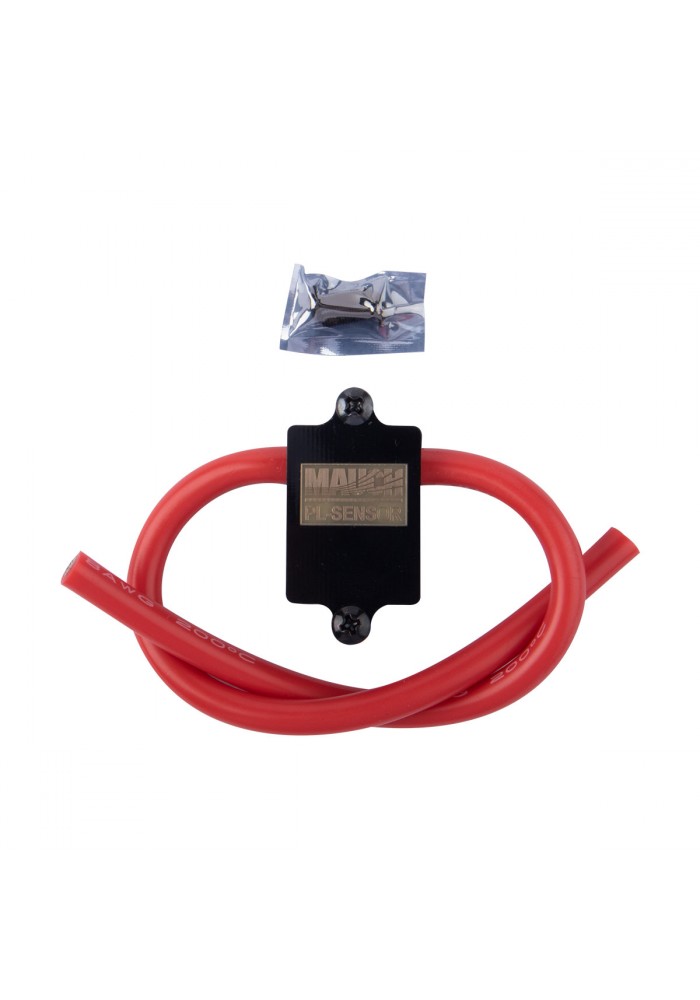

With CFK enclosure = 43.5 x 23.0 x 15mm / 44g (with 2x 15cm 8AWG)

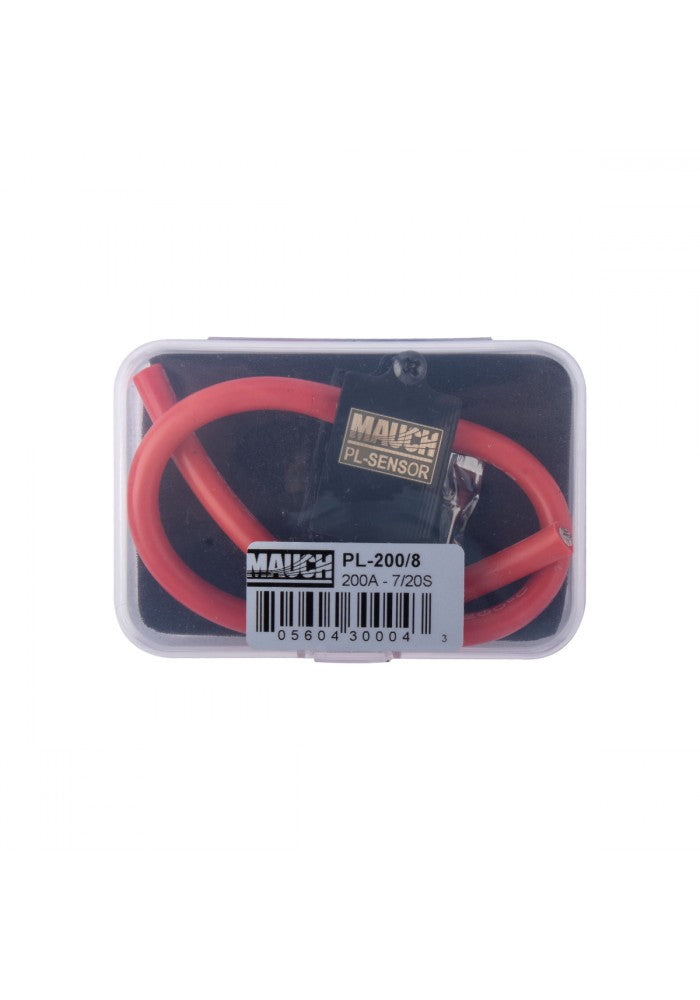

Delivery in PP box: 88 x 60 x 20mm / 59g


Delivery without sensor cable (comes with the BEC's), with CFK enclosure


REM: If you want to use your own BEC, then please order a sensor cable (040) and ensure that the supplied voltage is within 4.95-5.05V.


Ships in 4 to 7 working days from order placement
