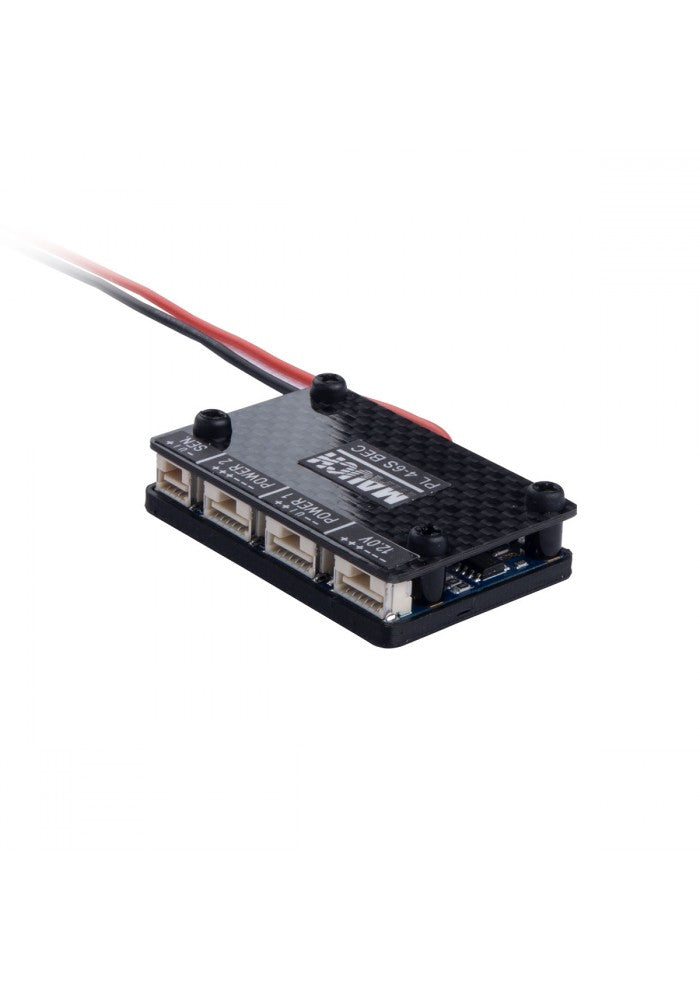

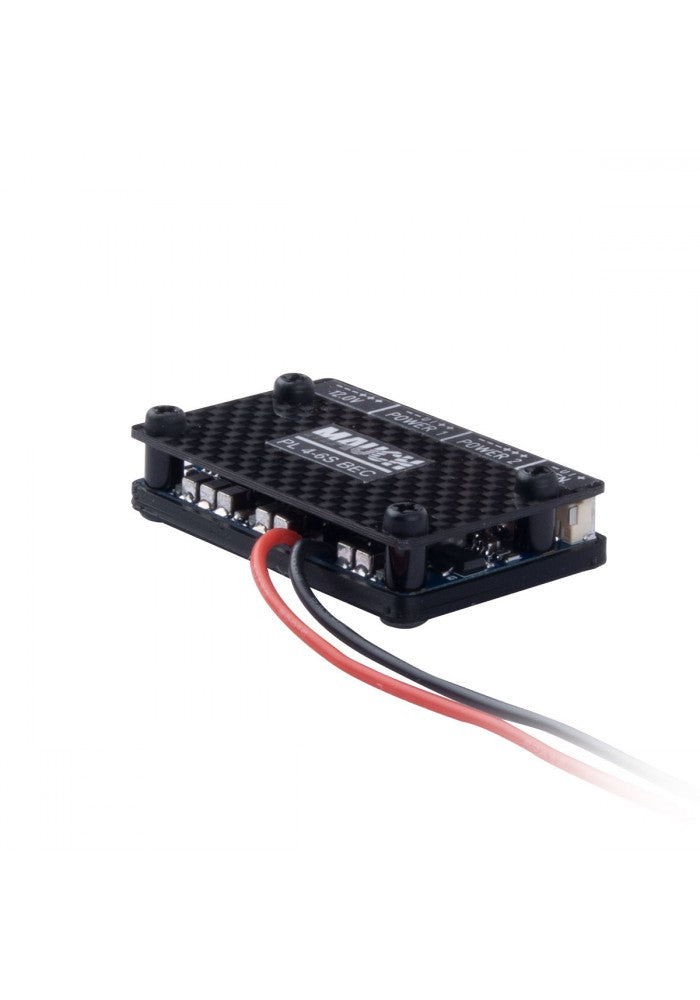

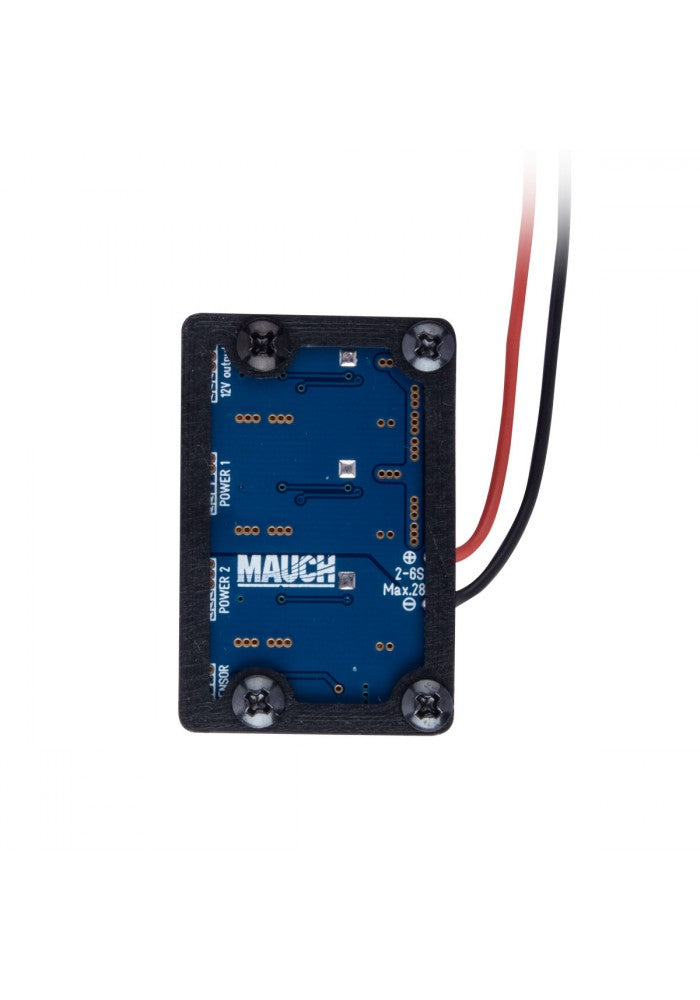

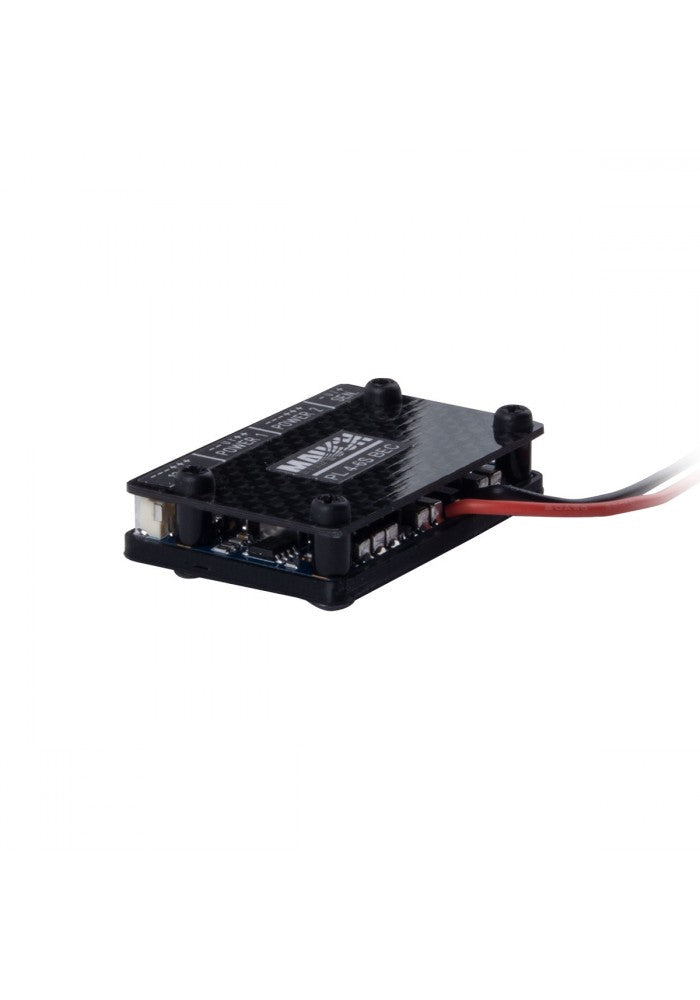

Mauch 017: PL 4-6S BEC 2x5.35V 1x12.0V with CFK enclosure


SKU: MH017Categories: Power & converters

Input 4-6S LiPo / max. 28V.


Output 2x 5.35V / 3A  + 1x 12.0V / 3A -> +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A output current.


Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2 and output conector with Molex Clik-Mate 4p.


Input wrong polarity protection, as well as TDK input and output capacitors to prevent burn out of the UBEC from voltage spikes.


Blue power "ON' LED. (3x)


32mm x 50mm x 7mm / 19g without CFK enclosure


34mm x 52mm x 10mm / 24g with CFK enclosure

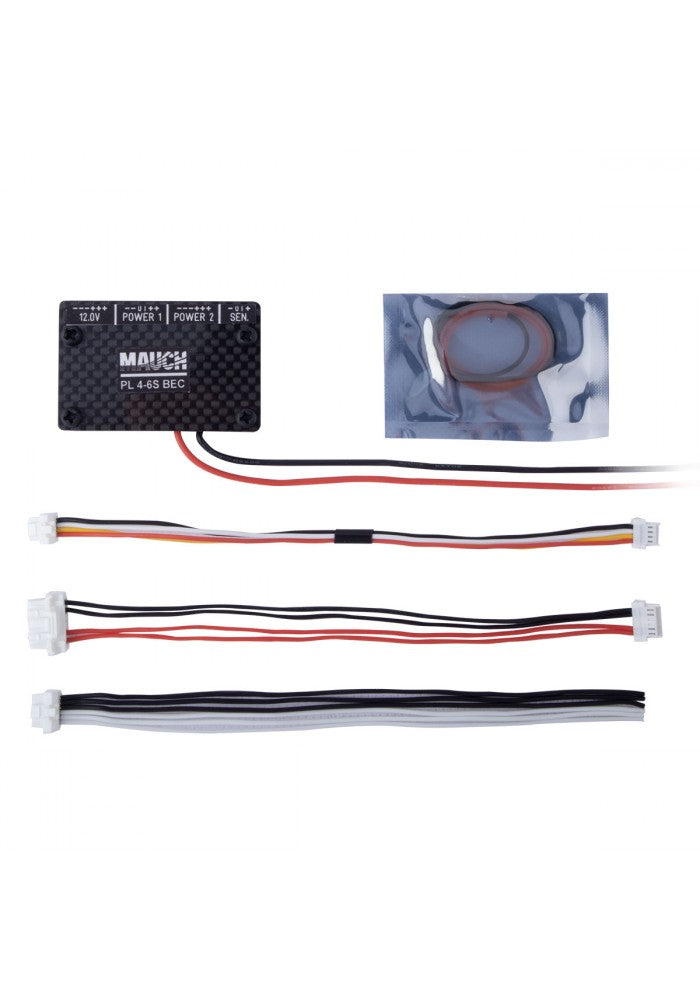

Scope of delivery:


1x PL-4-6S BEC 3x


1x CFK enclosure


1x Sensor cable (040) Molex Clik-Mate 4p / L = 150mm


1x Backup cable (050) for Pixhawk 2.1 / Molex Clik-Mate 2.0-6p / L = 150mm


1x 12.0V output cable one site Molex Clik-Mate 1.25mm-4p, the other site open. / L = 150mm


REM: The BEC is delivered without an flight controller cable, so please selct the correct cable to match your FC:


041: DF13-6p -> Pixhawk 1 / APM... etc.


042: Molex Clik-Mate 2.0 - 6p -> Pixhawk 2.1


043: JST-GH-6p -> Pixhawk 3... etc


Ships in 4 to 7 working days from order placement
