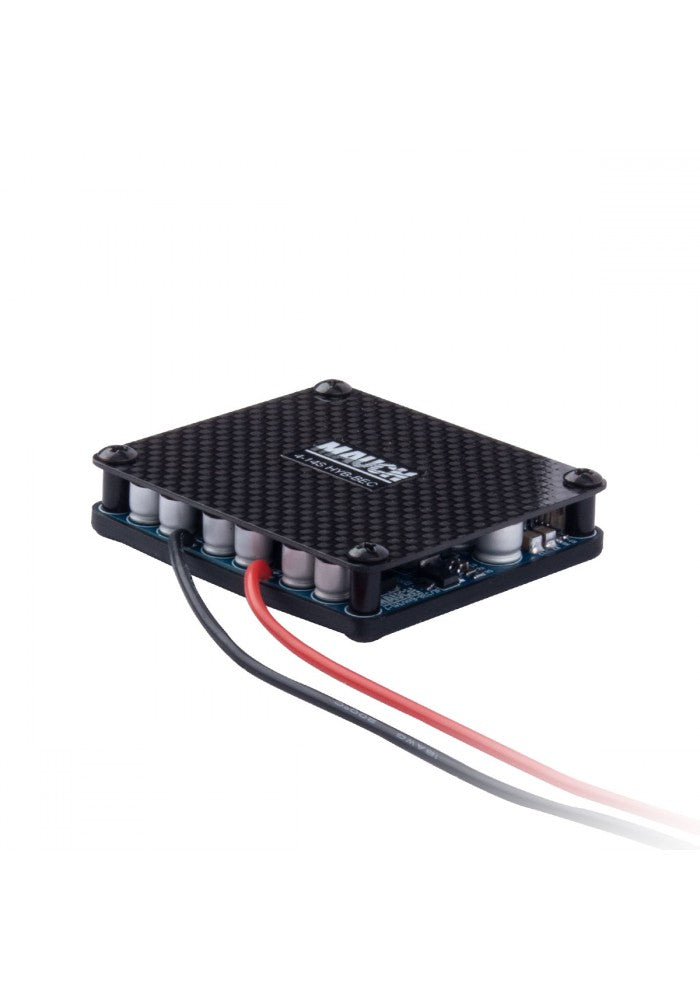

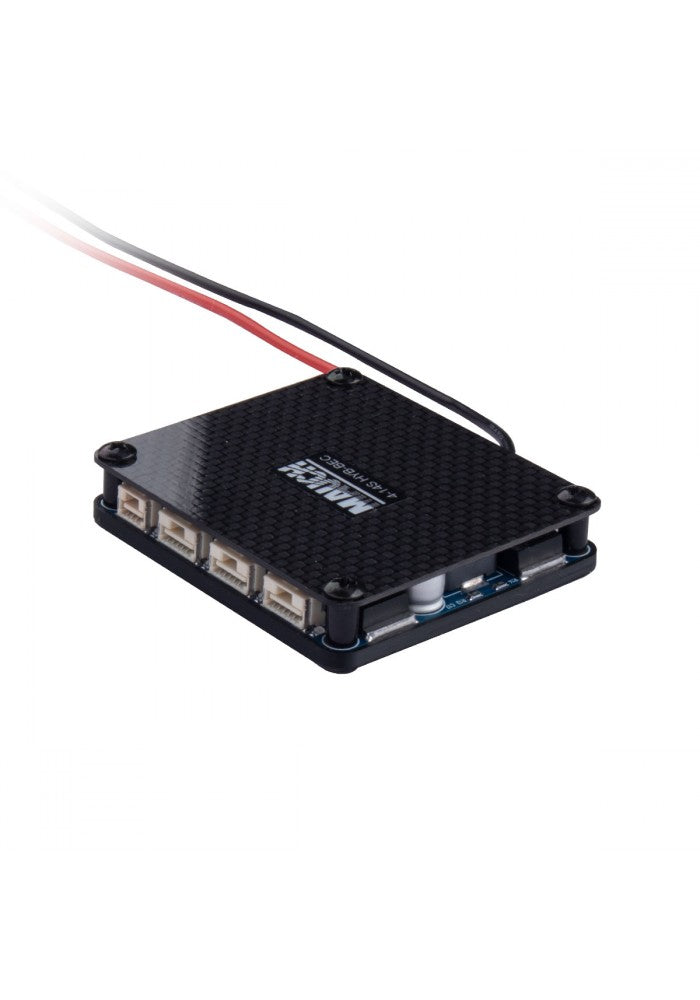

Mauch 023: PL 4-14S HYB-BEC / 2x5.3V + 1x5.0V

€137.99

SKU: MH023Categories: PixHawk, autopilot and OSD
Description

Input 4-14S LiPo / max. 60V.



Output 2x 5.30V / 1x 5.0V / 3A -> +/- 0.05V –> Ripple 1mV @ 1.5A output current.



Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2/X8 and output conector with Molex Clik-Mate 4p.



Blue power "ON' LED.



59mm x 66mm x 13mm / 57g with enclosure(without cables)

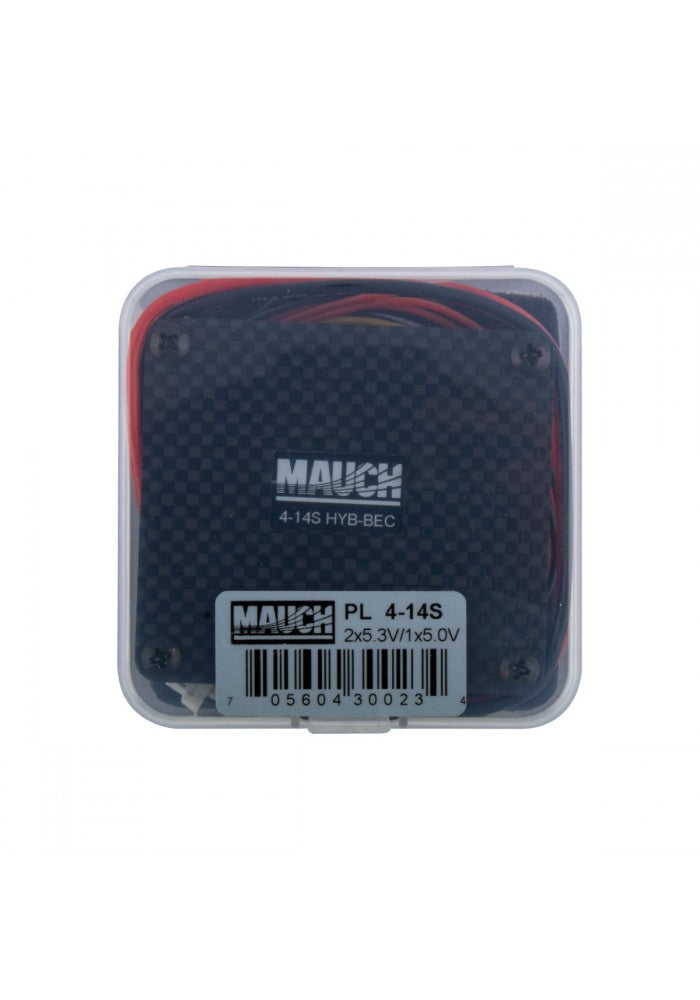

Delivery in PP box:

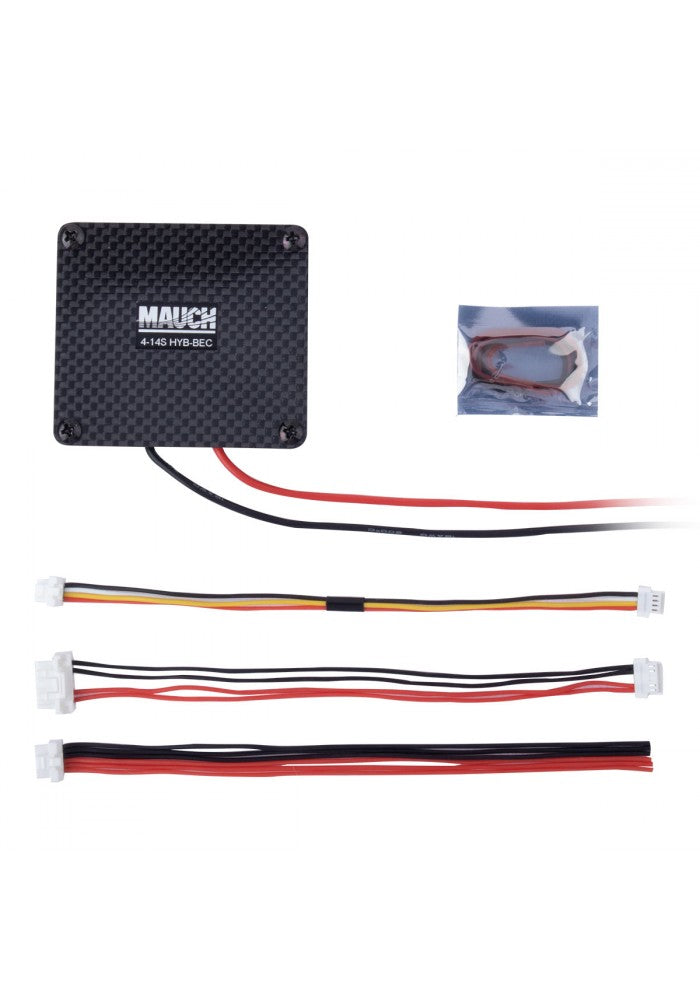

Scope of delivery:



1x 021: PL 4-14S HYB-BEC / 1x 5.3V / 3A



1x 040: PL - Series sensor cable / L=150mm



1x 050: Backup cable for Pixhawk 2.1 / L=150mm



1x  5.0V output cable (red/black) one site Molex Clik-Mate 1.25mm-6p, the other site open. / L = 150mm



1x Enclosure



REM: The BEC is delivered without a flight controller cable, so please selct the correct cable to match your FC:



041: DF13-6p -> Pixhawk 1 / APM... etc.



042: Molex Clik-Mate 2.0 - 6p -> Pixhawk 2.1



043: JST-GH-6p -> Pixhawk 3... etc



Ships in 4 to 7 working days from order placement
