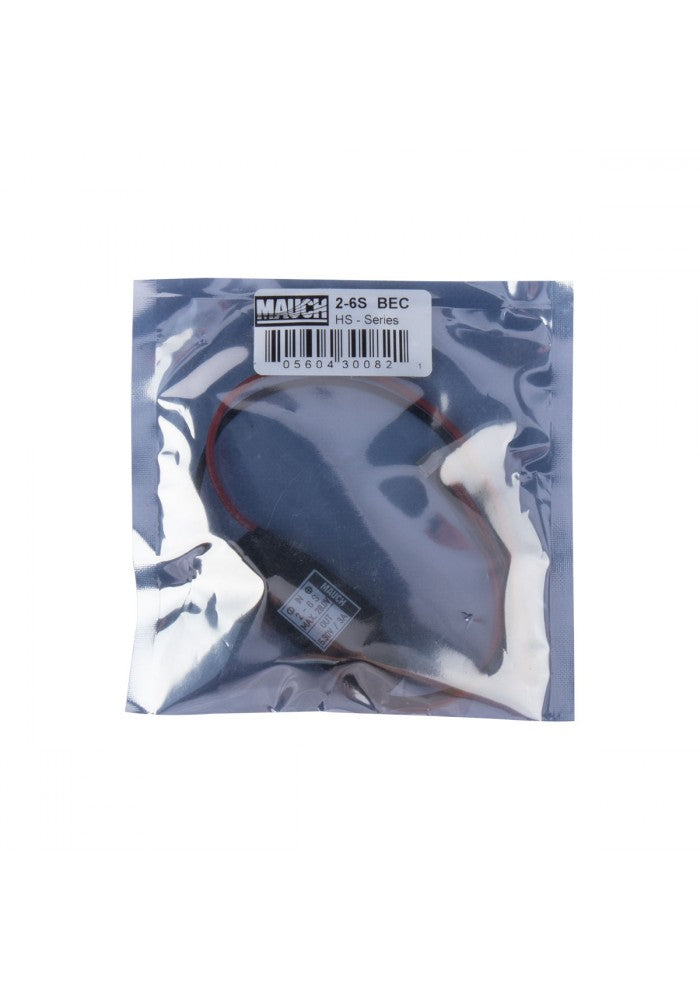

Mauch 082: 2-6S BEC / 5.35V / DF-13-4P

€19.99

SKU: MH082Categories: PixHawk, autopilot and OSD
Description

Input 2-6S LiPo / max. 28V.



Output 5.35V / 3A -> +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A output current.



Input wrong polarity protection, as well as Panasonic FM input and output capacitors to prevent burn out of the UBEC from voltage spikes.



4 pole cable with DF-13 connector .

(To connect to any HS-xxx-xx current sensor board or to Sensor Hub X2)



47mm x 18mm x 11mm / 8g with cables and shrinking tube.



Ships in 4 to 7 working days from order placement
