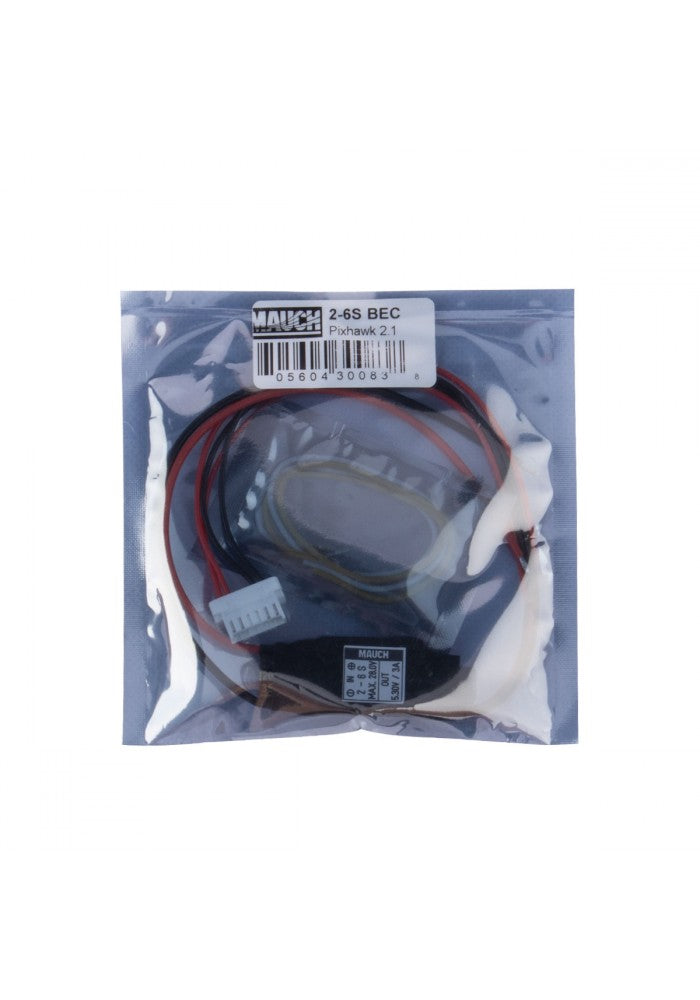

Mauch 083: 2-6S Backup BEC for Pixhawk 2

€22.50

SKU: MH083Categories: PixHawk, autopilot and OSD
Description

Input 2-6S LiPo / max. 28V.



Output 5.35V / 3A -> +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A output current.



Input wrong polarity protection, as well as Panasonic FM input and output capacitors to prevent burn out of the UBEC from voltage spikes.



20cm output cable with Molex / 6p / Clik-Mate 2.0mm. (To connect to Pixhawk 2 / Battery 2)



2x 20cm spare wires with Clik-Mate 2.0mm crimp, for Battery 2 current and voltage sence.



 47mm x 18mm x 11mm / 9g with cables and shrinking tube.



Ships in 4 to 7 working days from order placement
