PingRX

€269.00 €249.00

SKU: UA001Categories: PixHawk, autopilot and OSD
Description

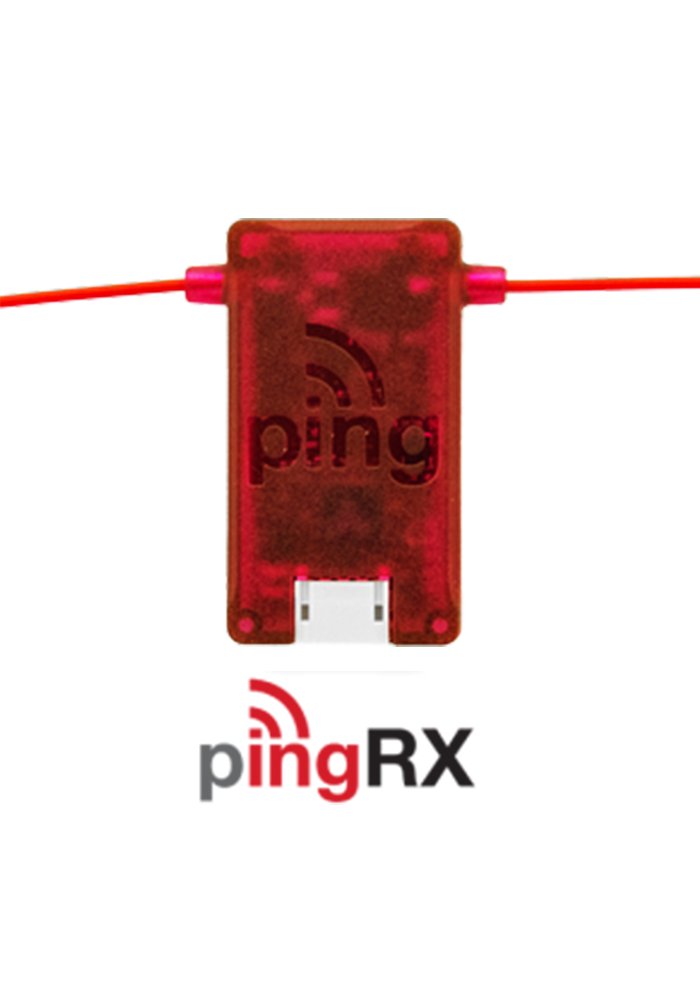

PingRX is the world’s smallest and lightest ADS-B receiver. At just 5 grams pingRX receives position reports from surrounding aircraft in real-time.

Remote pilots receive audio and visual alerts* as aircraft enter the surrounding airspace. The small footprint and low weight of pingRX results in greatly enhanced situational awareness with zero impact on performance.

*Alerts and avoidance capability vary with installed autopilot.

Detects commercial aircraft threats on 1090MHz and 978MHz within a 100 statute mile radius in real time

User programmable spherical radius for threat reporting

Implements ‘Sense and Avoid’ for drone operations in the national airspace

Direct MAVLink integration with Pixhawk autopilot and APM Mission Planner

Integration with DJI using the DJI SDK

Cross-Platform Support

Increased awareness and safe operation is not limited to one platform.

Integrate pingRX with DJI Onboard SDK

Integrate pingRX with Arudpilot

ADS-B (Automatic Direct Surveillance Broadcast) is the foundation of the next generation airspace.  ADS-B allows aircraft to exchange position and course information directly in real-time.  pingRX receives the position reports from surrounding aircraft and provides the information to the drone autopilot and remote pilot.  The FAA is requiring all manned aircraft be equipped with ADS-B by the year 2020.

PingRX receives the aircraft ADS-B broadcast automatically.

When an aircraft reaches a specified distance from the drone the remote pilot receives an audio/visual alert via telemetry down-link.

PingRX continues to update the remote pilot and autopilot with threat aircraft position and course in real-time.

Using the incoming information the drone autopilot calculates remaining time until threat aircraft will be within the programmable threat radius.

Remote pilot analyzes information and moves to avoid the threat aircraft.

If no action is taken by the remote pilot, the autopilot can be programmed to perform automatic avoidance.



    Specification                                               Value

    Input Voltage / Power                                  4,6V / 80mA

    Size                                                                 34x19x8mm

    Weight                                                            5 grams



    Receive

    MTL 1090 MHz                                             -84dBm

    Dynamic Range                                          -81 to 0dBm



    MTL 978 MHz                                               -93dBm

    Dynamic Range                                          -90 to -3dBm



    Interface                                                   MavLINK Serial 57600bps
