Description

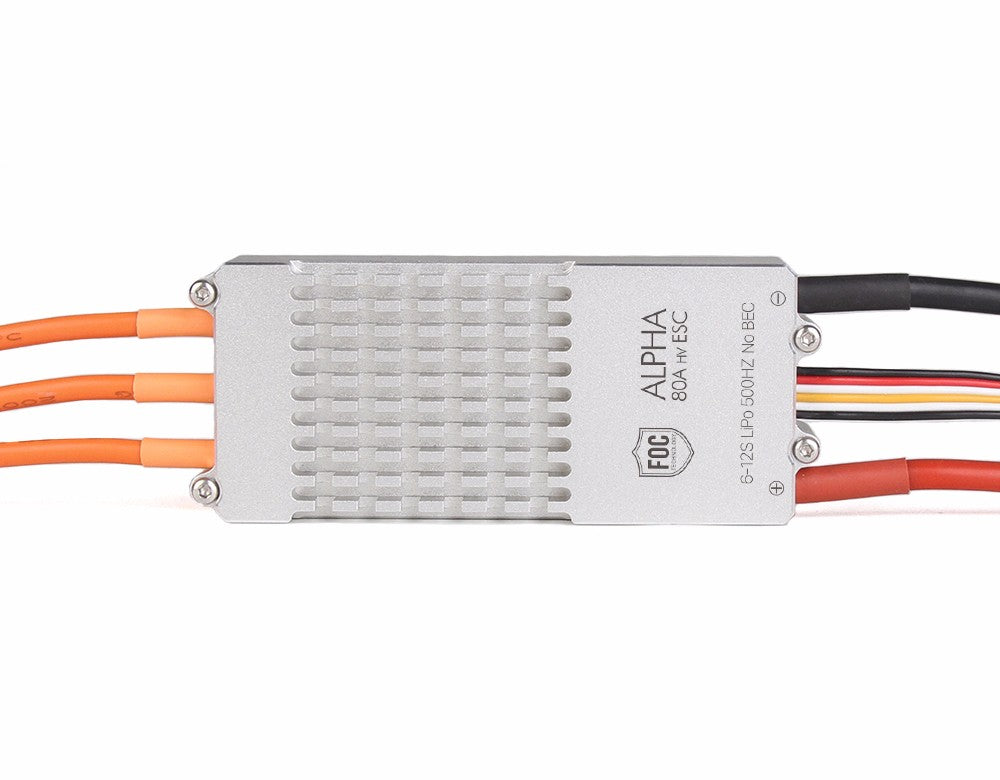

About T-MOTOR ALPHA 80A 12S Multi-Rotor Drone FOC ESC
T-MOTOR Alpha 80A 12S ESC is designed for professional UAVs, featuring FOC (Sine Wave) technology and intelligent algorithms for precise, efficient, and stable motor control. It delivers low noise, low temperature, and minimal interference, ensuring reliable performance. With fast throttle response, high efficiency, and advanced protection, the Alpha 80A meets the demands of large UAVs, making it a trusted choice for professional applications.
ALPHA 80A 12S ESC Highlights:
• Low Noise, Temperature and Interference
• Fast Response, High Efficiency
ALPHA ESC has faster responses with less pulse current and steady startup as compared with traditional square wave driving.
This T-MOTOR ESC contains over current/Motor Lock-up/short circuit/Low voltage protection.
Packing List Includes:
1x T-Motor ALPHA 80A 12S ESC
1x Hardware Kit
Matching Guide:
P60 Pin Motor KV170 / P60 Without Pin Motor KV170
Alternatively, Alpha ESC can be programmed by the end user with Alpha Data Link.
Specifications
| Size | 88.5*36.6*19mm（L*W*H） |
|---|---|
| Power Cable | Silicone wire-red/black-12AWG-180MM |
| Weight(Incl. cables) | 110g |
| Signal Cable | PVC flat cable-30 core wires--2-450MM (white, blank, black/JP 3P male connector) |
| Motor Cable | Silicone wire-deep orange-14AWG-110MM*3PCS |
| programming Cable | PVC flat cable-30 core wires--3-50MM (black, red, white/JP 3P male connector) |
