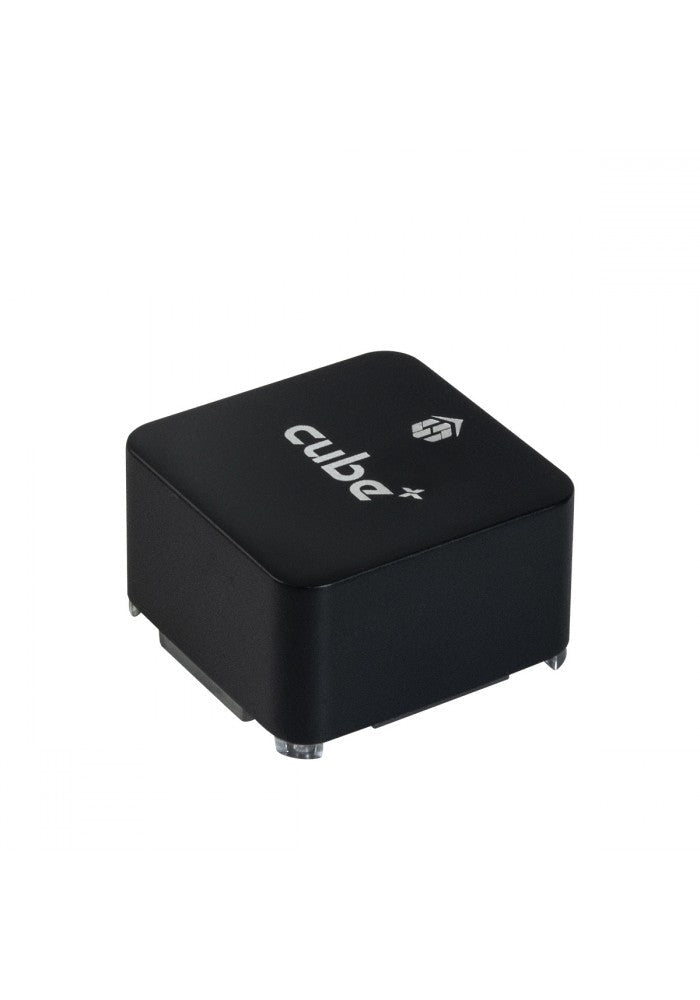

The Cube Black PLUS

€475.00

Hurry, there are only 4 item(s) left!
SKU: HX4-06118Categories: Flight control & GPS
Description

Compatible with ArduCopter, ArduPlane and ArduRover flight control software.





Performance test video

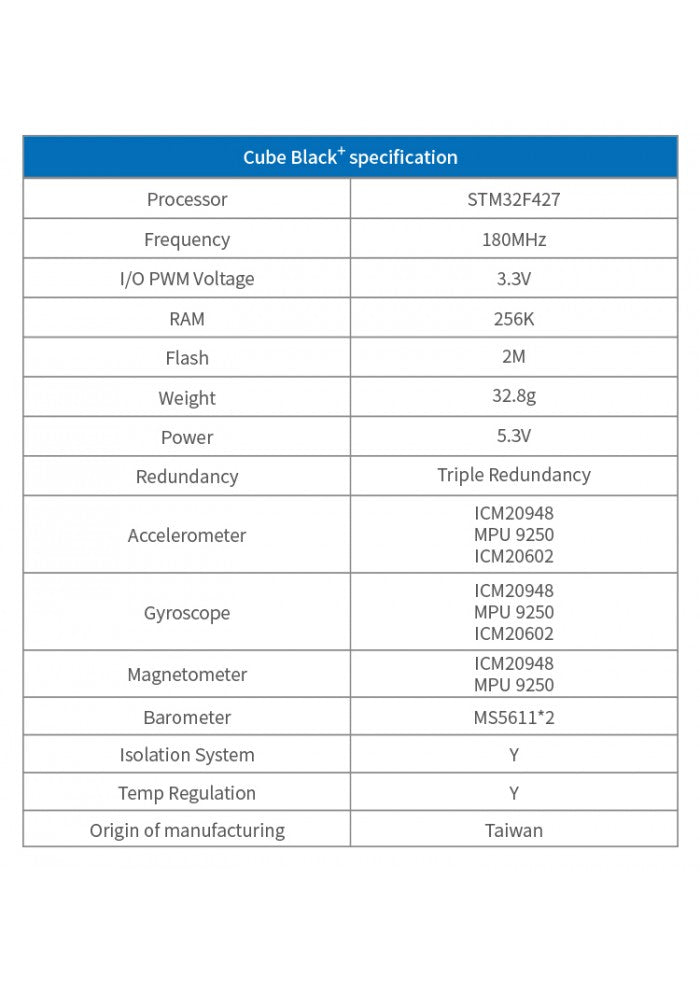

Pixhawk FMU Main Board

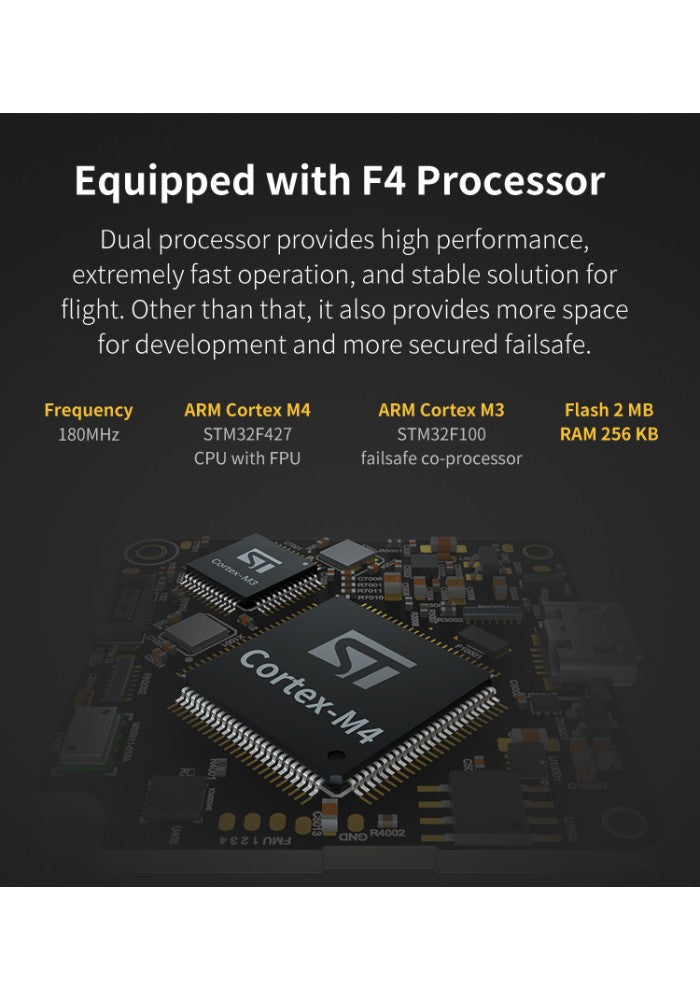

  • STM32F427 180MHz Cortex-M4 microcontroller: 2MiB flash, 256KB RAM
  • On-board 16KiB SPI FRAM
  • MPU9250 / ICM 20602 accelerometer and gyro
  • MS5611*2 Barometer
  • Micro SD interface

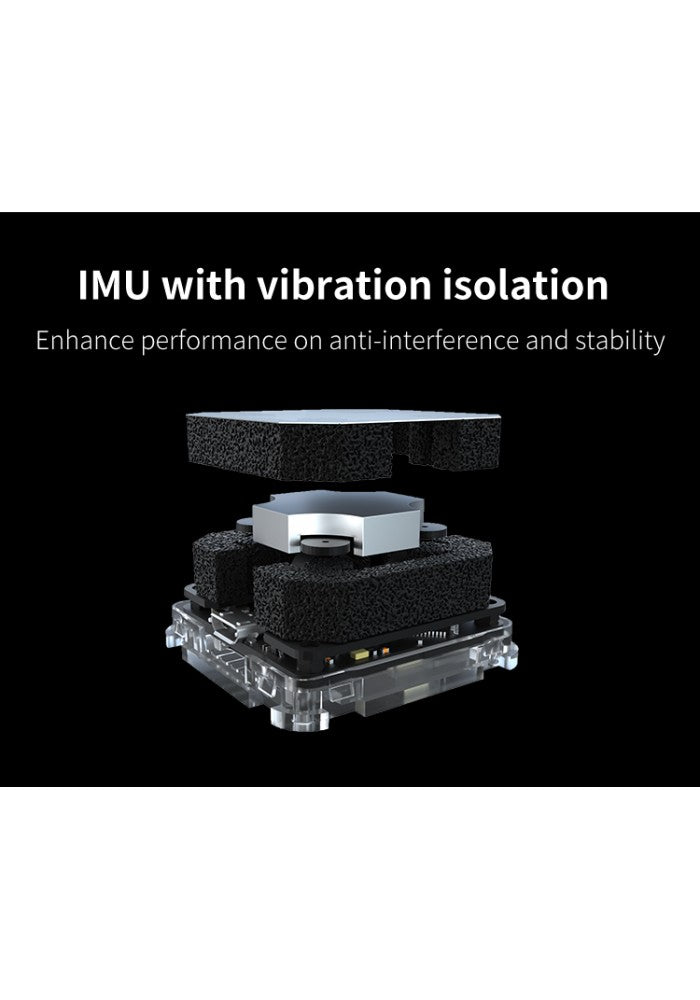

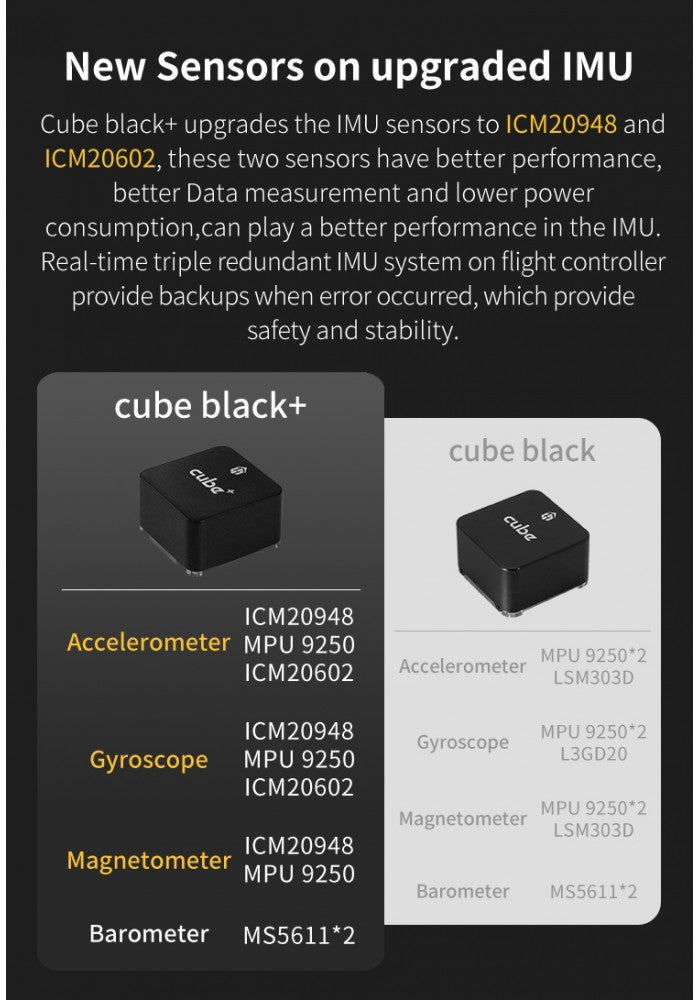

Vibration Damped IMU board

  • LSM303D integrated accelerometer / magnetometer
  • L3GD20 gyro
  • MPU9250 / ICM 20602 accelerometer and gyro
  • MS5611*2 Barometer



I/O ports

  • 14x PWM servo outputs (8x from IO, 6x from FMU)
  • R/C inputs for CPPM, Spektrum / DSM and S-BUS
  • Analogue / PWM RSSI input
  • S-BUS servo output
  • 5x general purpose serial ports (2x with full flow control)
  • 2x I2C ports
  • SPI port
  • 2x CAN Bus interface
  • 3x analog inputs
  • High-powered piezo buzzer driver
  • High-power I2C RGB LED port
  • Safety switch with LED



Plane setup walk-through





In the box

  • 1x PixHawk 2.1 Black Cube
  • 1x SD Card

 Ships in 4 to 7 working days from order placement
