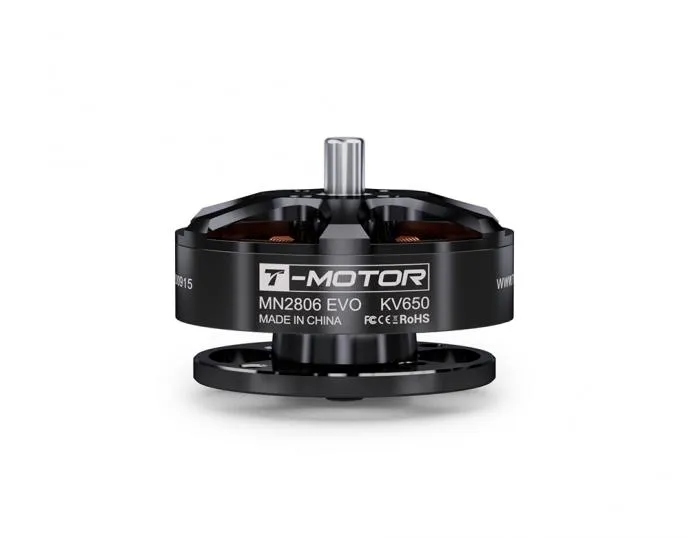

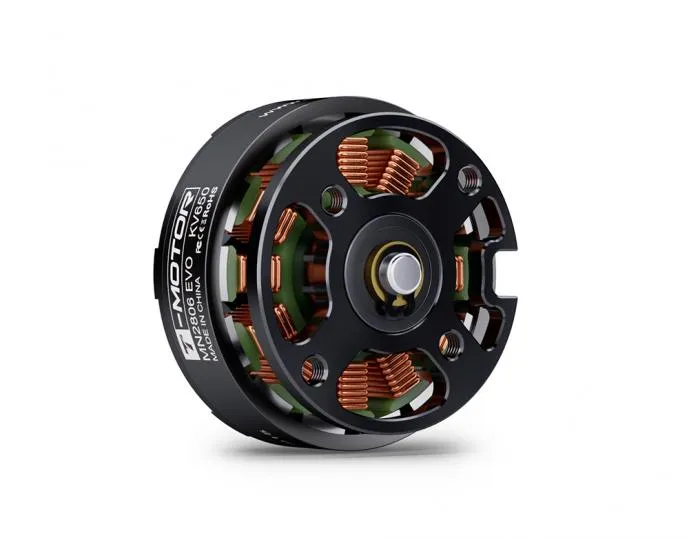

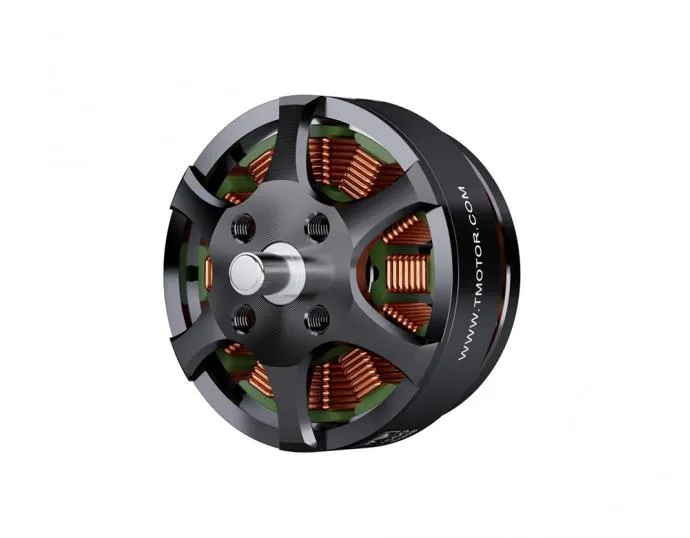

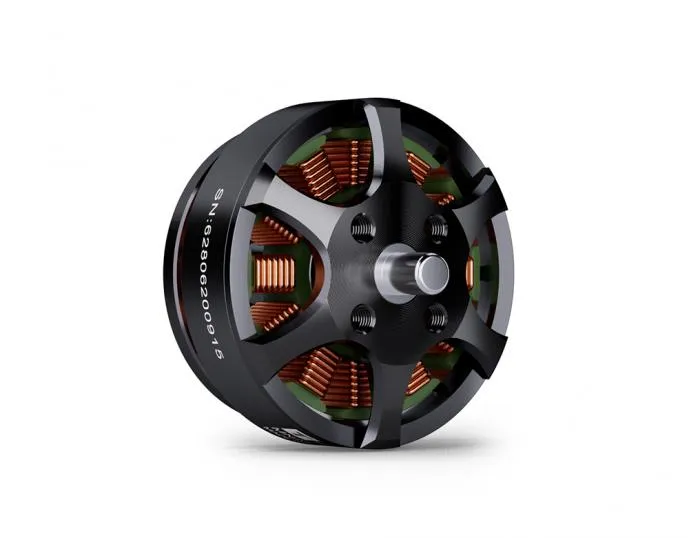

TMotor MN2806 Antigravity EVO (KV650)

About T-MOTOR Antigravity MN2806 EVO KV650

T-MOTOR has advanced the Antigravity MN2806 to the latest Antigravity MN2806 EVO KV650, featuring arc-shaped magnets that tightly conform to the steel ring, effectively reducing the air gap with the stator. This design enhances the uniformity of magnetic flux distribution, minimizes magnetic leakage, and optimizes both magnetic field efficiency and motor performance. The enameled wire has been upgraded to withstand temperatures of up to 220℃, ensuring the motor maintains stability under extreme conditions, including high RPM, heavy loads, and elevated temperatures. This significantly reduces the risk of motor failures and damage due to wire breakage, thereby enhancing reliability and lifespan. The new Antigravity MN2806 EVO KV650 boasts a 16% increase in maximum thrust to 1390g, with an efficiency improvement of over 0.3g/W at similar thrust levels (above 400g).

Antigravity MN2806 EVO KV650 Highlights:

Upgraded with arc-shaped magnets for optimal fit to the steel ring, precisely minimizing the stator air gap, optimizing magnetic flux distribution, and improving motor efficiency.
High-temperature resistant enameled wire rated for 220℃, reducing the likelihood of motor failures and enhancing reliability and longevity.
Maximum thrust increased by 16% to 1390g.
Efficiency improvement of over 0.3g/W at similar thrust levels (above 400g).

Technical Drawing


Specification

Motor Size	Φ34*26mm	Magnet Level	150℃ high temperature resistance
Stator	180℃ high temperature-resisting coatings	Lead	Enameled Wire 50mm
Configuration	12N14P	Copper Wire	220℃ high temperature resistance
Shaft Diameter	IN：4mm，OUT：4mm	Coil Insulation Test	500V
Bearing	Imported 694ZZ*2	Package Size	917341mm

KV	650	Rated Voltage (LiPo)	4S
Idle Current(10V)	0.45A	ESC Recommendation	AIR40A 6S
Peak Current(180s)	16A	Propeller Recommendation	P124/P134.4
Max Power (180S)	160W	Weight (Incl. Cable)	45g
Internal Resistance	201mΩ	Package Weight	105g

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
MN2806 EVO	P12	30%	16.04	161.96	0.03	0.69	2620	11.03	14.68	/
		35%	16.03	214.53	0.04	0.99	2990	15.91	13.49
		40%	16.02	288.66	0.05	1.49	3445	23.88	12.09
		45%	16.01	358.77	0.06	2.04	3824	32.72	10.99
		50%	16.00	431.93	0.07	2.65	4184	42.42	10.18
		55%	15.99	510.53	0.08	3.38	4542	54.03	9.45
		60%	15.97	593.18	0.10	4.19	4887	66.88	8.87
		65%	15.95	680.02	0.11	5.16	5236	82.25	8.27
		70%	15.93	766.48	0.12	6.19	5558	98.66	7.77
		75%	15.91	854.42	0.14	7.31	5863	116.21	7.35
		80%	15.88	947.68	0.15	8.57	6164	136.05	6.97
		85%	15.86	1036.95	0.17	9.90	6448	157.02	6.60
		90%	15.83	1126.54	0.18	11.32	6716	179.17	6.29
		95%	15.80	1212.80	0.19	12.77	6958	201.86	6.01
		100%	15.78	1275.96	0.20	13.95	7131	220.12	5.80
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
MN2806 EVO	P13	30%	16.04	186.98	0.03	0.78	2563	12.48	15.00
		35%	16.03	247.73	0.04	1.15	2911	18.50	13.40
		40%	16.02	335.22	0.06	1.75	3343	28.05	11.96
		45%	16.00	419.61	0.07	2.40	3711	38.41	10.93
		50%	15.99	501.17	0.08	3.08	4046	49.26	10.18
		55%	15.97	591.89	0.10	3.97	4393	63.44	9.33
		60%	15.96	678.03	0.11	4.85	4699	77.42	8.76
		65%	15.94	775.62	0.13	5.93	5016	94.49	8.21
		70%	15.91	867.18	0.14	7.06	5307	112.34	7.72
		75%	15.89	961.47	0.16	8.33	5582	132.37	7.26
		80%	15.86	1058.89	0.17	9.74	5845	154.44	6.86
		85%	15.83	1153.05	0.19	11.20	6092	177.27	6.50
		90%	15.80	1244.47	0.20	12.73	6320	201.21	6.18
		95%	15.77	1332.54	0.22	14.30	6530	225.59	5.91
		100%	15.75	1389.45	0.23	15.48	6679	243.81	5.70
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
