Power Distribution Board


SKU: HS011Categories: Power & converters



W/ BEC 5V & 12V

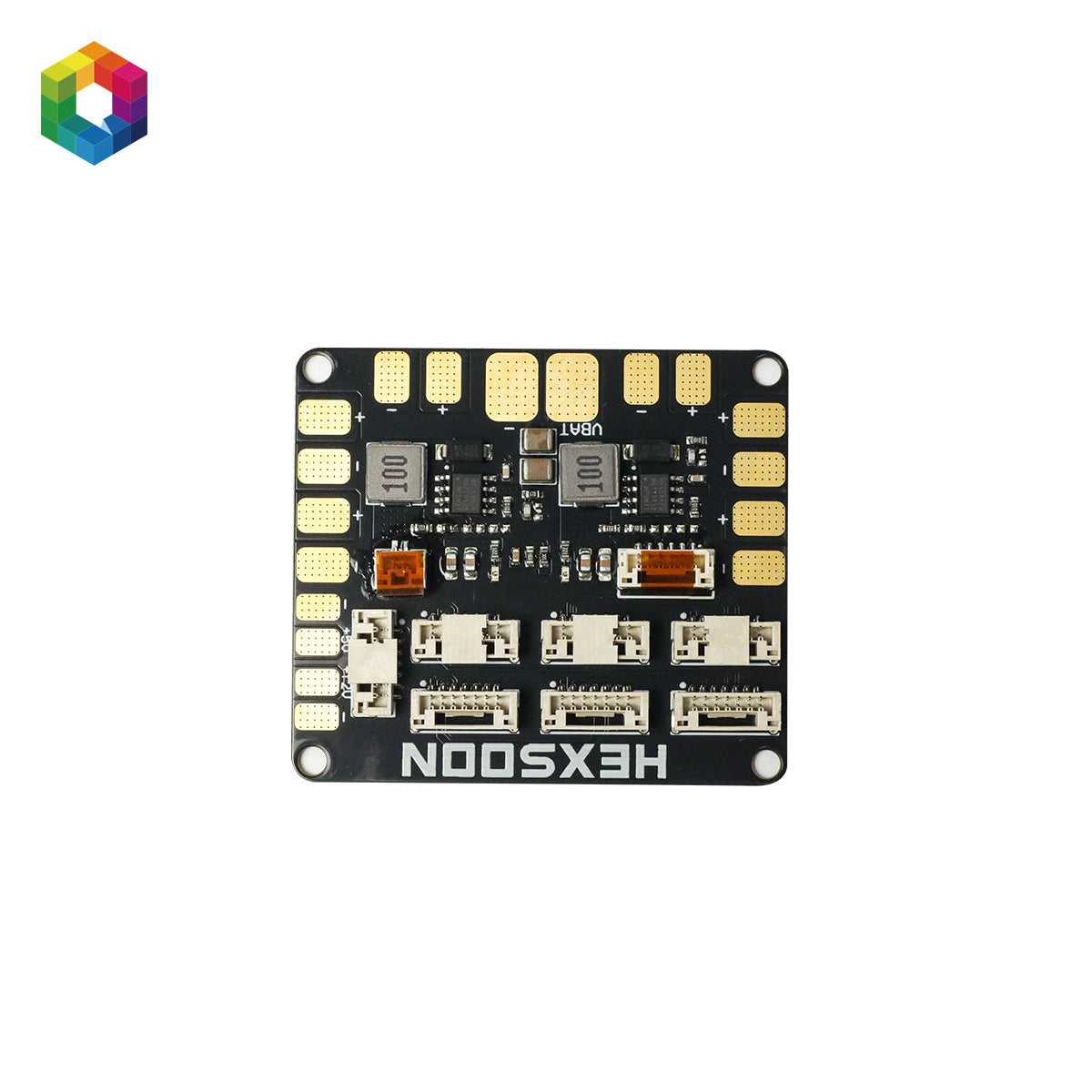

The PDB-40A has been engineered to provide the highest possible performance and reliability in a 36*57mm & 4 layers PCB. lt distributes power from a Li Po pack to 6 ESCs, as well as providing Switching Regulator DC 5V outputs & Switching Regulator DC 12V tor powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.



• 4oz copper, 4-layers &1.0mm PCB. • Built-in 40A Socket • Tota I 6 pairs ESC solder tabs are fit tor H or X type frame • 5V & 12V Output LED indicators & Short circuit tolerant






- Input voltage range (3S-6S LiPo operation): 9 - 26V DC

- Regulated 5V and 12V outputs

- LED power indicators ( 5V & 12V outputs )

- 6 ESC outputs & 1 pair VCC/GND pads


ESC outputs:

- Continuous current: 40A*6

- Peak current (10 seconds/minute): 50A*6


BEC 5V output:

- Designed for RC Receivers, Flight controllers, OSO, and Servos.

- DC/DC synchronous buck regulator.

- Voltage: 5.3 +/- 0.lVDC

- Continuous current: 3 Amps

- Output Ripple: 40mV (Vln=16V, VOut=5V@2A load)

- Short-circuit tolerant (5 seconds/minute)

- This connector has the same definition as the cube's carrier board.


BEC 12V output:

- Designed for Video TX or FPV camera with switching regulator.

- The battery should be 4-6S LiPo (13~26V DC)

- Voltage: 12.0 +/- 0.3VDC

- Continuous current: 2A

- Short-circuit tolerant (2 seconds/minute)


BEC 12V@ 3S LiPo
-Output voltage= 3S LiPo voltage -lV



- Dimensions: 57.2 x 50.5 x 5.2mm

- Mounting: 52 x 45.3mm, ©3mm

- Weight: 14.5g(w/o 40A)
