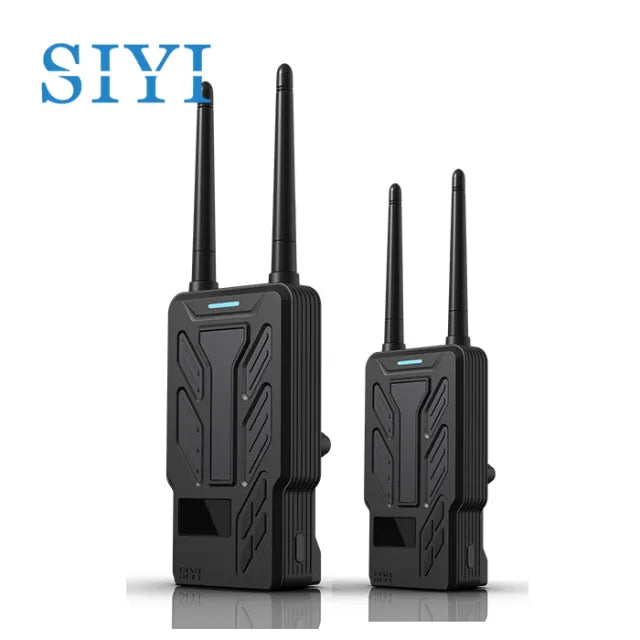

SIYI HM30 Long Range Full HD Digital Image Transmitter

Model: HM30
Max Transmission Range: 30 kilometers (unobstructed, free of interference)
Channels: 16 communication channels
Compatible Flight Controllers:
- Pixhawk Based Flight Controller or APM
- SN-L+ Fixed Wing Flight Controller
- MATEK H743 / F405
   or any flight controllers with UART datalink output
Compatible Android GCS (standard RTSP video stream):
- SIYI FPV
- QGroundControl
Compatible Windows GCS (standard RTSP video stream):
- QGroundControl
- Mission Planner

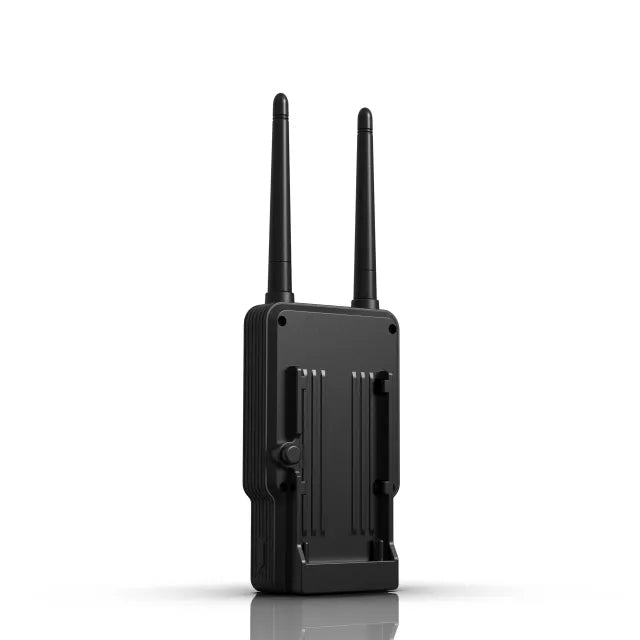

Ground Unit

Monitor Display: 0.96-inch OLED Screen
Dimensions (antennas and battery excluded): 109 x 61 x 28 mm
Weight (antenna and battery excluded): 132 g
Compatible Battery Type:
- NP-F550 / F750 / F770 / F950 / F970 series quick release batteries
   (HM30 Fly More Combo comes with NP-F750 battery)
Fast Charging Protocol: PD 30W
Antenna Gain:
- Standard Omni Antennas: 5 dBi
- Standard Long Range Antennas: 11 dBi
Power Consumption: 5 W
Interface & Ports:
- S.Bus / PPM RC Signal Input: RC (GH1.25 4-Pin)
- Datalink Output: UART (GH1.25 4-Pin)
- Ethernet Port: LAN (GH1.25 4-Pin)
- Power Output: VCC (GH1.25 4-Pin)
- USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C
- Power Input: PWR (XT30)
- Tripod Connector: 1/4-inch Screw Hole
Waterproof Level: IP53
Working Temperature: -10 to 50℃

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃

FPV Camera
Frame & Bitrate: 720p 30fps 1.57Mbps H.265 (or 1080p 30fps 2.3 Mbps H.265 only as the reference to DIY configuration)
Sensor: 1/2.9" CMOS
Effective Reolution: 3 MP
Lens: 3.2 mm, F/2.8
Camera Angle: FOV 105°
Dimensions: 42 x 42 x 25 mm
Weight: 23 g
Cable Lens: 1000 mm
Working Temperature: -10 to 55℃

Ground Unit HDMI Output Converter (Optional)
HDMI Port Type: Standard HDMI
Power Consumption: 2.5 W
Dimensions: 52 x 52 x 16 mm
Weight: 150 g
Working Temperature: -10 to 55℃
