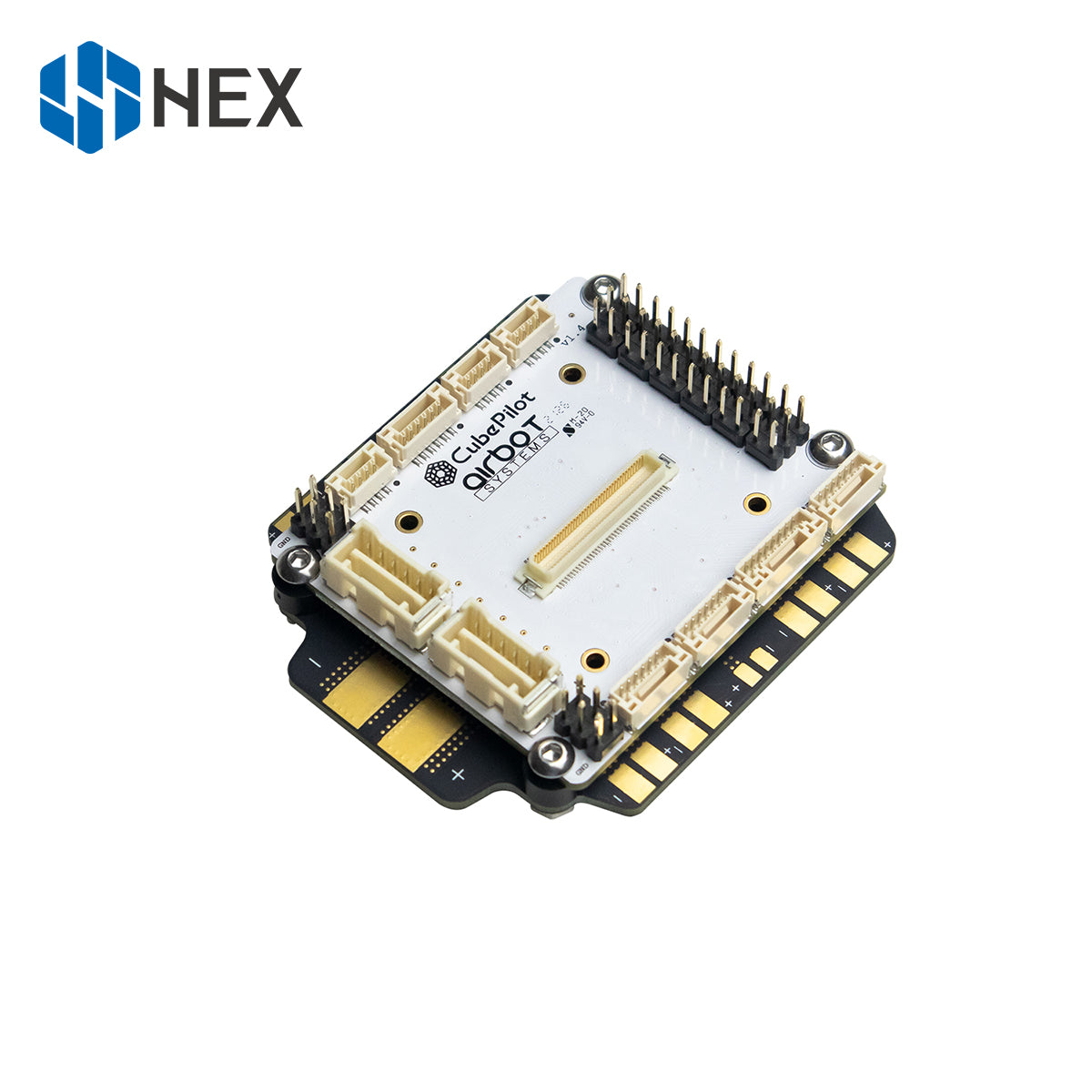

Airbot Mini Carrier Board – PDB Combo

€119.00

SKU: HX4-06200Categories: PixHawk, autopilot and OSD
Description
GENERAL
The Airbot Mini carrier board is one of the way to install a Cube on a drone. The Mini carrier board encapsulate all the wiring in a 50.5x57.5mm board, in order to save space and weight for applications which have size limits.

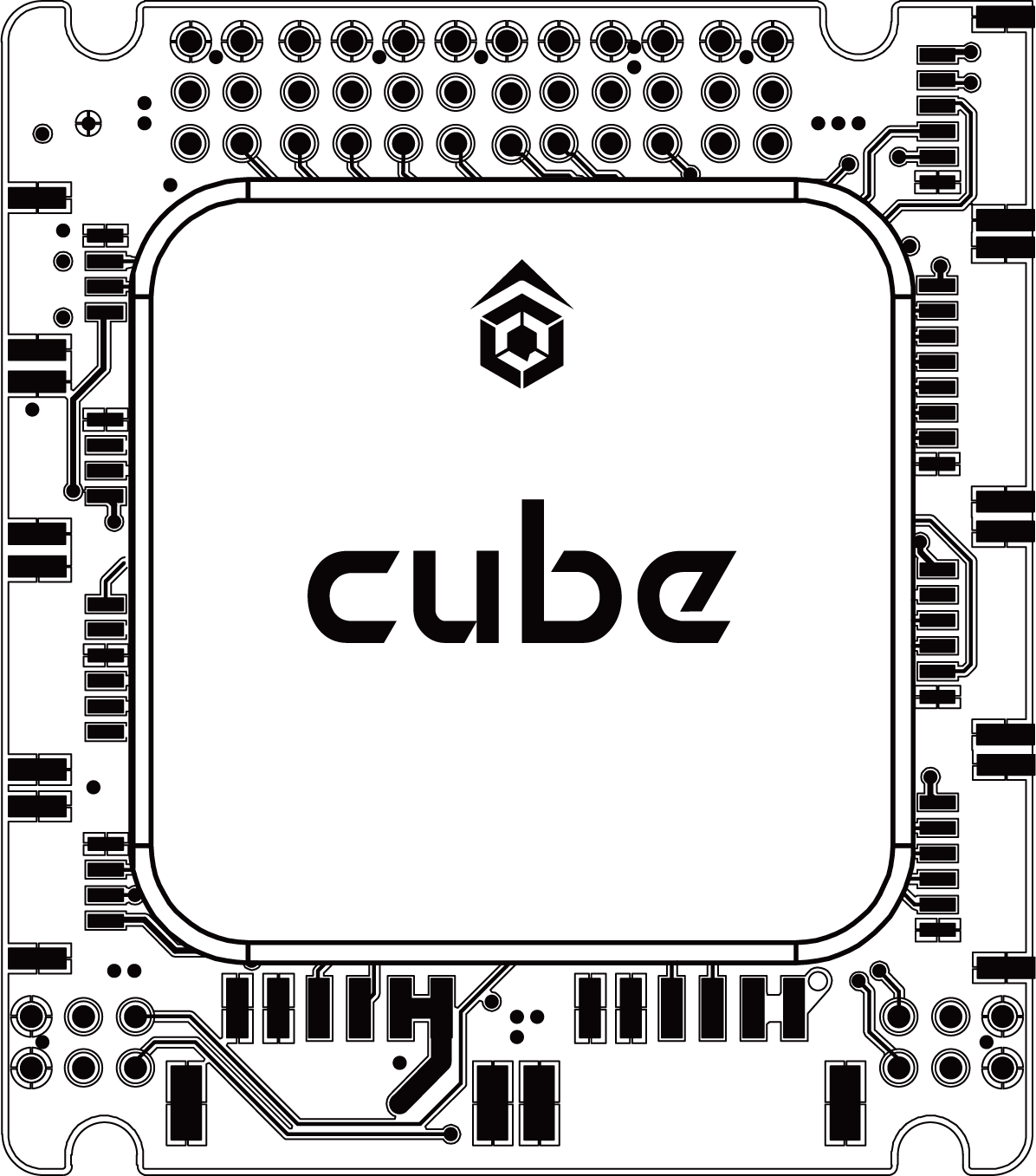

DIMENSIONS
FEATURES
● Dual power inputs (redundant power with automatic switch to the second power source when first one fails)
● Easy to install on drone (see the mounting pattern above)
● Power distribution & voltage protection (providing current to each connector)
● Motor PWM signal distribution (up to 8 motors - distributed on corners)
● Standard 2.54mm servo PPM/S.BUS/Spectrum RC input (+5v/+3.3v selectable power from carrier board)
● AUX VCC pins are connected together. This allows powering the AUX rail externally.
INTERFACES

PORT

CONNECTOR ON BOARD

CONNECTOR TO PLUG IN

I2C_2 - CAN1 - CAN2

JST GH : BM04B-GHS-TBT

GHR-04V-S

USB - TELEM1 - TELEM2 - GPS2

JST GH : BM06B-GHS-TBT

GHR-06V-S

GPS1

JST GH : BM08B-GHS-TBT

GHR-08V-S

POWER1 - POWER2

Molex CLIKMATE : 502443-0670

502439-0600

*All connectors are the same as Cube Standard carrier board



PINOUT




RC SIGNAL AND POWER SELECTION



POWER DISTRIBUTION BOARD

The Airbot Power Distribution Board Set can be installed directly under Airbot Mini carrier board set. The PDB allows up to 180A through ESC interface and four pairs of low power pads (2 on top/ 2 on bottom). The mounting hole are aligned with Airbot carrier board, so the board can be stacked together while separated by small nylon spacers.


ATTENTION ! : The PDB can not be attached to any conductive materials. Beware to distance from any conductive material by

When using nylon spacers or insulations(e.g PlastiDIP), remember to leave enough spacing distance away from conductors.

INSTALLATION DIAGRAM
In the box:
  • 1 x Airbot Mini Carrier Board
  • 1 x Airbot Power Distribution board
  • 1 x Nylon Set
  • 1 x Screw Set
  • 1 x Micro USB Cable
  • 1 x I2C Cable
  • 1 x Power Cable
  • 1 x Power2 Cable
  • 1 x GPS1 Cable
  • 1 x GPS2 Cable
  • 1 x Telem Cable
  • 1 x Buzzer

Minumum Order Quantity 10 pcs

Ships in 4 to 7 working days from order placement
