SIYI HM30 Long Range Full HD Digital Image Transmitter

€364.00 – €1,020.00

StandardStandard
DualDual
Fly More ComboFly More Combo
€364.00
SKU: SYHM30Categories: Datalink & digital video
Description

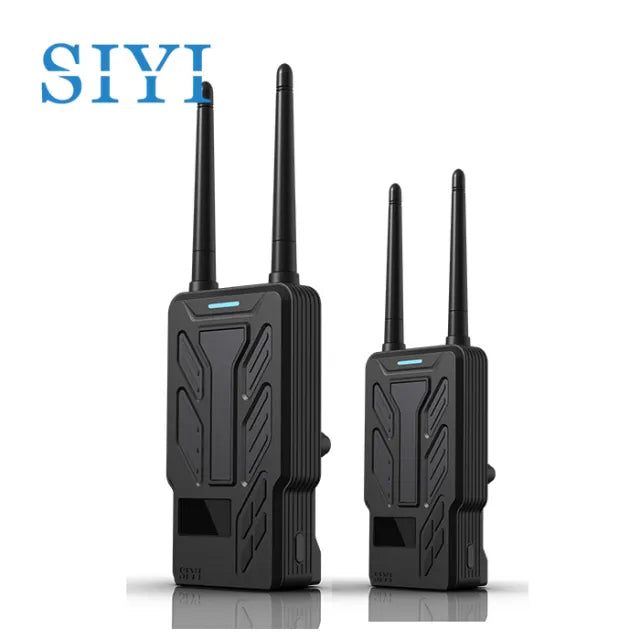

SIYI HM30 Long Range Full HD Digital Image Transmission System

Air unit receiver is ALWAYS included with this product!

FPV System 1080p 60fps 150ms SBUS PWM Mavlink Telemetry OSD 30KM CE FCC
Dual-Way Full HD Digital Image Transmission | 30KM Range | 150ms Low Latency 1080p@60fps H.264 & H.265 Decoding | OLED Touchscreen | FPV OSD | Dual RC & RC Relay | IP Camera | Long Range Antenna | PD Fast Charging | Supports PIX and QGC

SPECIFICATION

Overall

Model: HM30
Max Transmission Range: 30 kilometers (unobstructed, free of interference)
Channels: 16 communication channels
Compatible Flight Controllers:
- Pixhawk Based Flight Controller or APM
- SN-L+ Fixed Wing Flight Controller
- MATEK H743 / F405
   or any flight controllers with UART datalink output
Compatible Android GCS (standard RTSP video stream):
- SIYI FPV

- QGroundControl
Compatible Windows GCS (standard RTSP video stream):
- QGroundControl
- Mission Planner

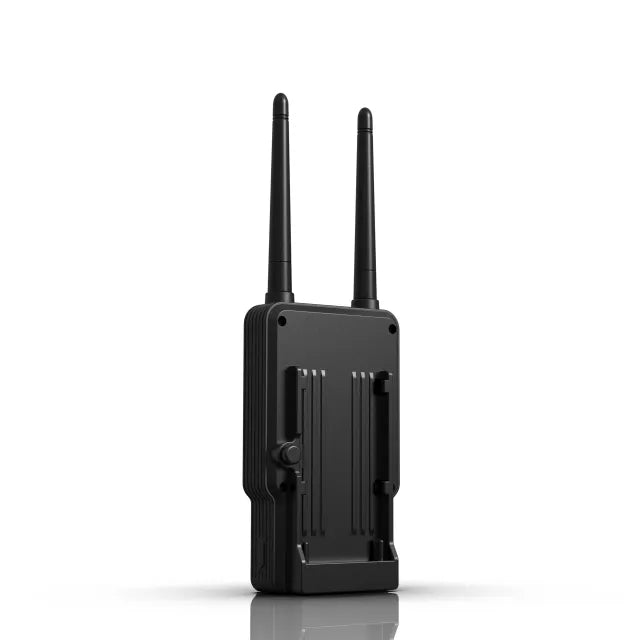

Ground Unit

Monitor Display: 0.96-inch OLED Screen
Dimensions (antennas and battery excluded): 109 x 61 x 28 mm
Weight (antenna and battery excluded): 132 g
Compatible Battery Type:
- NP-F550 / F750 / F770 / F950 / F970 series quick release batteries
   (HM30 Fly More Combo comes with NP-F750 battery)
Fast Charging Protocol: PD 30W
Antenna Gain:
- Standard Omni Antennas: 5 dBi
- Standard Long Range Antennas: 11 dBi
Power Consumption: 5 W
Interface & Ports:
- S.Bus / PPM RC Signal Input: RC (GH1.25 4-Pin)
- Datalink Output: UART (GH1.25 4-Pin)
- Ethernet Port: LAN (GH1.25 4-Pin)
- Power Output: VCC (GH1.25 4-Pin)
- USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C
- Power Input: PWR (XT30)
- Tripod Connector: 1/4-inch Screw Hole
Waterproof Level: IP53
Working Temperature: -10 to 50℃

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃

FPV Camera
Frame & Bitrate: 720p 30fps 1.57Mbps H.265 (or 1080p 30fps 2.3 Mbps H.265 only as the reference to DIY configuration)
Sensor: 1/2.9" CMOS
Effective Reolution: 3 MP
Lens: 3.2 mm, F/2.8
Camera Angle: FOV 105°
Dimensions: 42 x 42 x 25 mm
Weight: 23 g
Cable Lens: 1000 mm
Working Temperature: -10 to 55℃

Ground Unit HDMI Output Converter (Optional)
HDMI Port Type: Standard HDMI
Power Consumption: 2.5 W
Dimensions: 52 x 52 x 16 mm
Weight: 150 g
Working Temperature: -10 to 55℃




Ships in 4 to 7 working days from order placement
