Description
About T-MOTOR Thunder 12~24S 200A for High Power Mulitirotor UAVs ESC

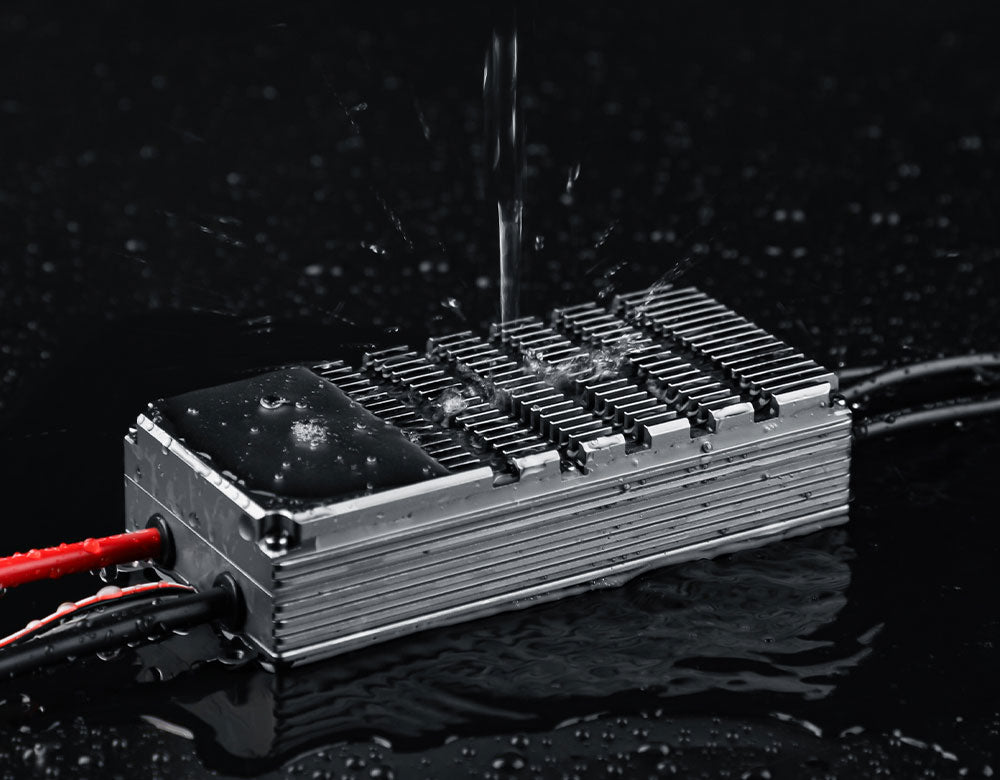

T-MOTOR Thunder 12~24S 200A ESC delivers high power, efficient cooling, and robust durability with a full-metal body, advanced safety features, and waterproof design.
Perfect for demanding UAV applications, it ensures reliable performance in any environment.
Thunder 200A ESC Highlights:
High Power Support: Designed for 12~24S systems, ideal for high-performance drones.
Efficient Cooling: Multi-tube connection, stacked aluminum shell for superior heat dissipation.
Enhanced Protection: Multiple safety features prolong ESC lifespan.
Anti-Interference: Shielded wires ensure clean signals and reliable operation.
Premium Quality: Rigorously tested electronics ensure durability and performance.
Waterproof Design: IP54-rated, anti-corrosion shell protects against rain, dust, and liquids
Packing List Includes:
1x T-Motor Thunder 200A Drone ESC
1x Hardware Kit
Matching Guide:
V13L VTOL Drone Motor
Specifications
| Model | THUNDER 200A 24S |
|---|---|
| Con. Current | 100A (good cooling space) |
| Weight (Incl. cables) | 620g |
| Peak current | 220A (3s/good cooling space) |
| Size | 154.9*69.6*36.1mm(without wire length) |
| StandbyConsumption | ≤50mA |
| IP | IP54 |
| Workingtemperature | -20℃~65℃ |
| Support Voltage | 12~24S |
| Signal | PWM/CAN |
| Power Wire | Silicone wire-black/red-8AWG-150mm |
| PWM throttlePos. range | Calibratable |
| Motor Wire | Silicone wire-black-10AWG-150mm |
| PWM voltage | 3.3~5V |
| Signal Wire | Shielded cable - Black - 0D4.2 - 5C - 500mm - JP - 3P*2 - Black/White - Green/Yellow/Gray |
| PWM frequency | 50~400HZ |
| Data feedbackchannel | CAN |
