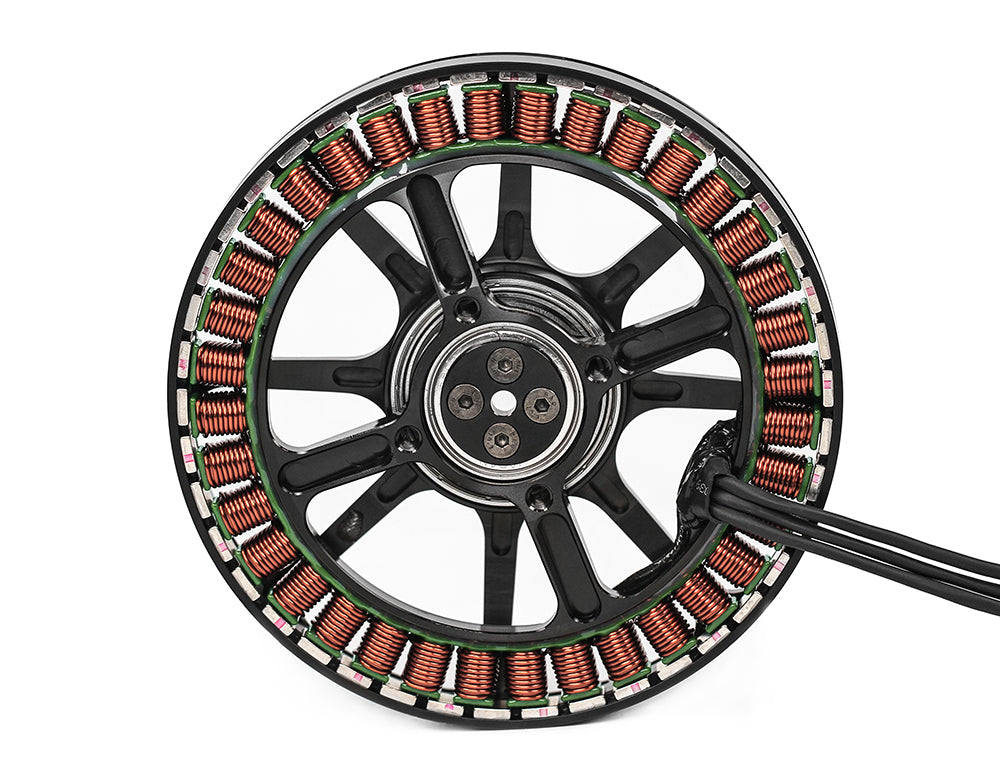

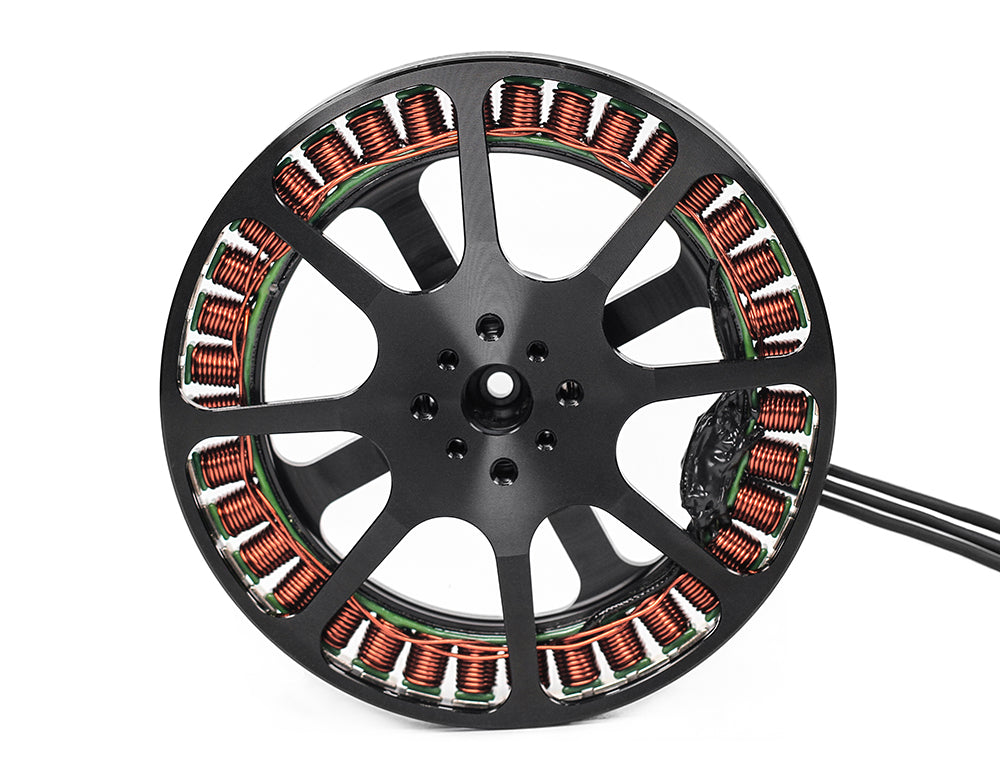

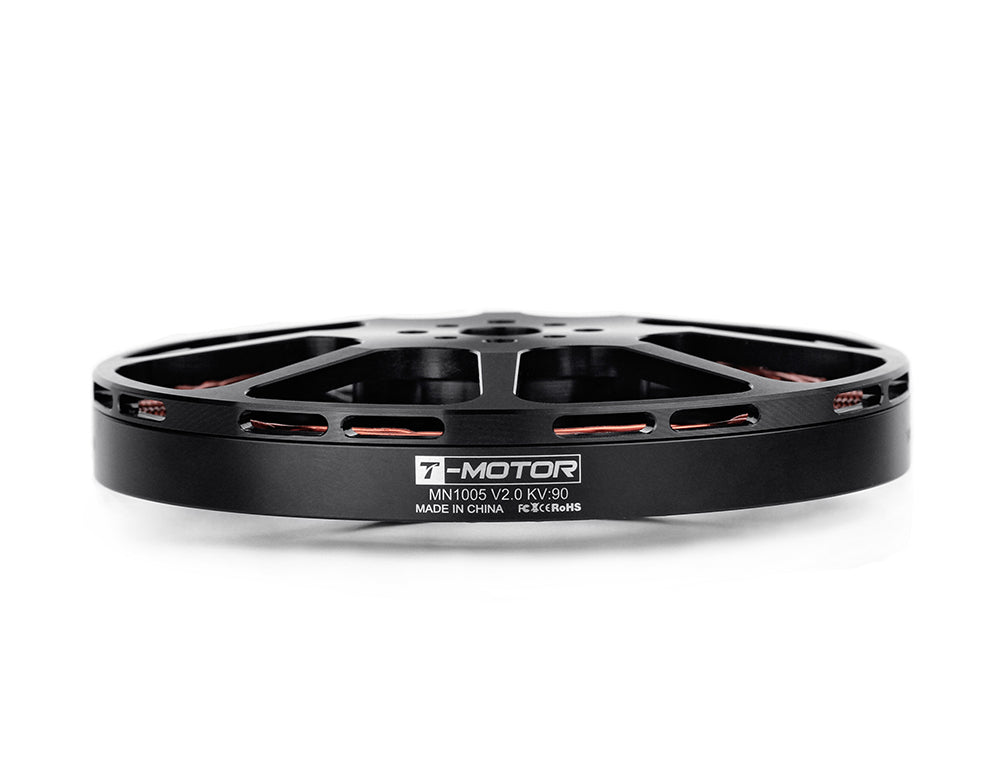

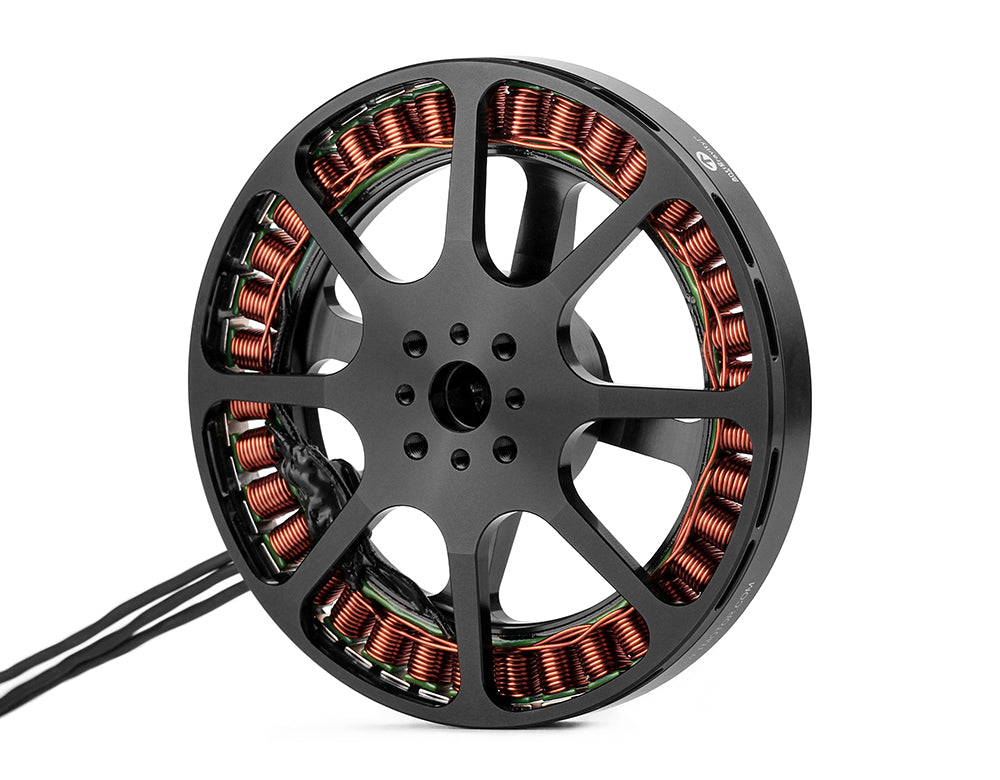

TMotor MN1005 V2.0 Antigravity Type 12S UAV Motor (KV90 / KV100)

About T-MOTOR MN1005 Multirotor VTOL UAV Motor KV90

T-MOTOR Antigravity MN1005 V2.0 90KV motor represents the pinnacle of UAV power, combining lightweight design, high-efficiency performance, and durability. Whether you’re in aerial photography, surveying, or demanding industrial applications, this motor is engineered to elevate your UAV's capabilities to new heights.

Antigravity MN1005 V2.0 Highlights:

Maximum Thrust: 9.3kg
Recommended Thrust: 3kg
Motor Weight: Only 282g – Ultra-light for enhanced payload capacity
Efficiency: Up to 11.5g/W at 3kg thrust, ensuring long flight times and energy efficiency
Service Life: 1000 hours of operation, providing long-term reliability for professional applications

" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.

Technical Drawing

Specification

Test Item	MN1005 V2.0	Lead Cable	Enamelled wire 100mm
Motor Size	Φ107*23mm	Copper Wire	220℃high temperature resistance
Stator	180℃high temperature-resisting coatings	Coil Insulation Test	500V
Configuration	36N42P	Centrifugal Cooling Design	NO
Shaft Diameter	IN：17mm	Rotor Dynamic Balance Standard	≤15Mg
Bearing	Imported 6803ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	180℃high temperature resistance

KV	90	Rated Voltage (Lipo)	12S
Idle Current (10V)	0.9A	Internal Resistance	168mΩ
Peak Current (180s)	32A	Weight (Incl. Cable)	282g
Max. Power (180s)	1500W	Package Weight	410g

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
MN1005 V2.0 KV90	T-MOTOR G30*10.5"	40%	47.94	2096	0.74	3.30	1599	158	13.25	93 (Ambient Temperature: 23℃)
		42%	47.93	2318	0.81	3.72	1659	178	13.01
		44%	47.92	2503	0.87	4.10	1715	196	12.75
		46%	47.90	2678	0.93	4.54	1772	218	12.30
		48%	47.89	2886	1.00	5.00	1830	239	12.05
		50%	47.88	3050	1.07	5.48	1890	262	11.63
		52%	47.87	3247	1.13	5.94	1944	284	11.42
		54%	47.86	3455	1.19	6.42	2001	307	11.24
		56%	47.84	3733	1.29	7.32	2095	350	10.67
		58%	47.83	3901	1.35	7.84	2144	375	10.40
		60%	47.82	4061	1.41	8.33	2187	398	10.19
		62%	47.80	4292	1.48	8.97	2241	429	10.01
		64%	47.79	4506	1.55	9.64	2287	461	9.78
		66%	47.78	4710	1.63	10.27	2337	491	9.60
		68%	47.76	4918	1.70	11.01	2382	526	9.35
		70%	47.74	5106	1.77	11.73	2431	560	9.12
		80%	47.66	6143	2.12	15.49	2658	738	8.32
		90%	47.57	7130	2.46	19.68	2869	936	7.62
		100%	47.44	8459	2.92	26.03	3116	1235	6.85
	T-MOTOR G32*11"	40%	47.91	2607	0.98	4.23	1559	203	12.87	HOT (Ambient Temperature: 23℃)
		42%	47.90	2854	1.06	4.73	1608	226	12.61
		44%	47.89	3068	1.14	5.24	1666	251	12.23
		46%	47.87	3247	1.20	5.69	1716	272	11.92
		48%	47.86	3463	1.28	6.23	1772	298	11.61
		50%	47.85	3691	1.36	6.82	1827	326	11.31
		52%	47.83	3880	1.43	7.40	1880	354	10.96
		54%	47.82	4105	1.51	7.97	1930	381	10.77
		56%	47.81	4327	1.59	8.63	1983	413	10.49
		58%	47.79	4586	1.68	9.41	2033	450	10.20
		60%	47.76	4962	1.82	10.68	2105	510	9.73
		62%	47.75	5215	1.90	11.45	2144	546	9.54
		64%	47.73	5367	1.96	12.07	2191	576	9.31
		66%	47.72	5590	2.05	12.88	2232	615	9.09
		68%	47.70	5823	2.13	13.70	2280	654	8.91
		70%	47.68	6015	2.20	14.45	2321	689	8.73
		80%	47.58	7091	2.59	18.95	2514	902	7.86
		90%	47.48	8071	2.95	23.75	2688	1128	7.16
		100%	47.33	9323	3.40	30.76	2882	1456	6.40
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
