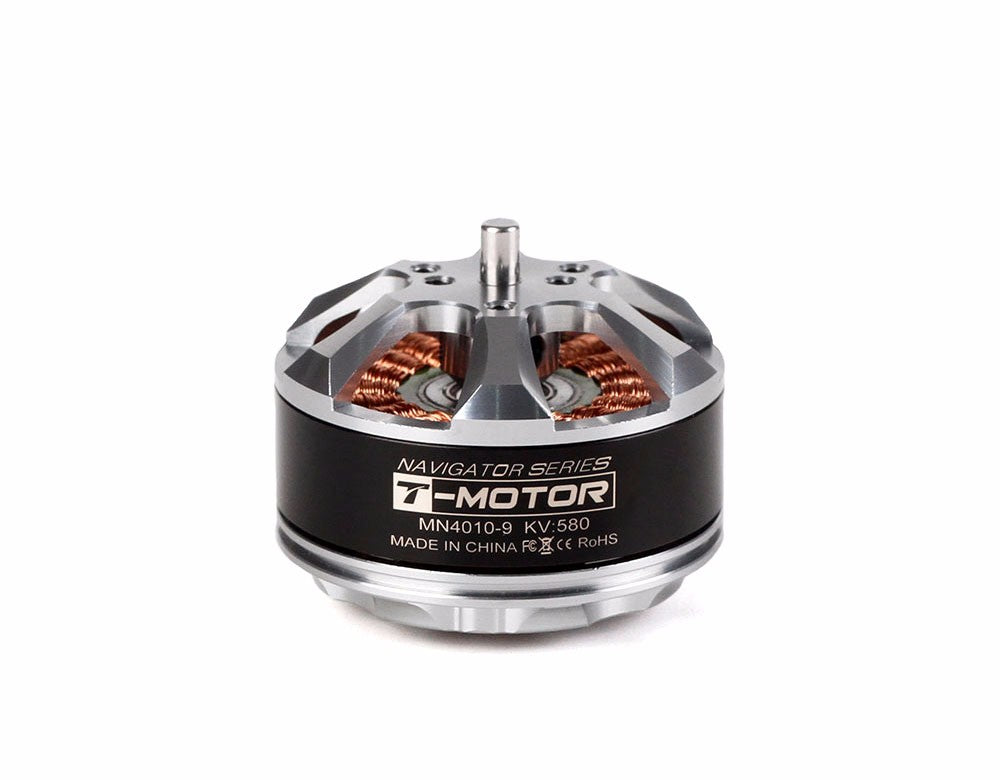

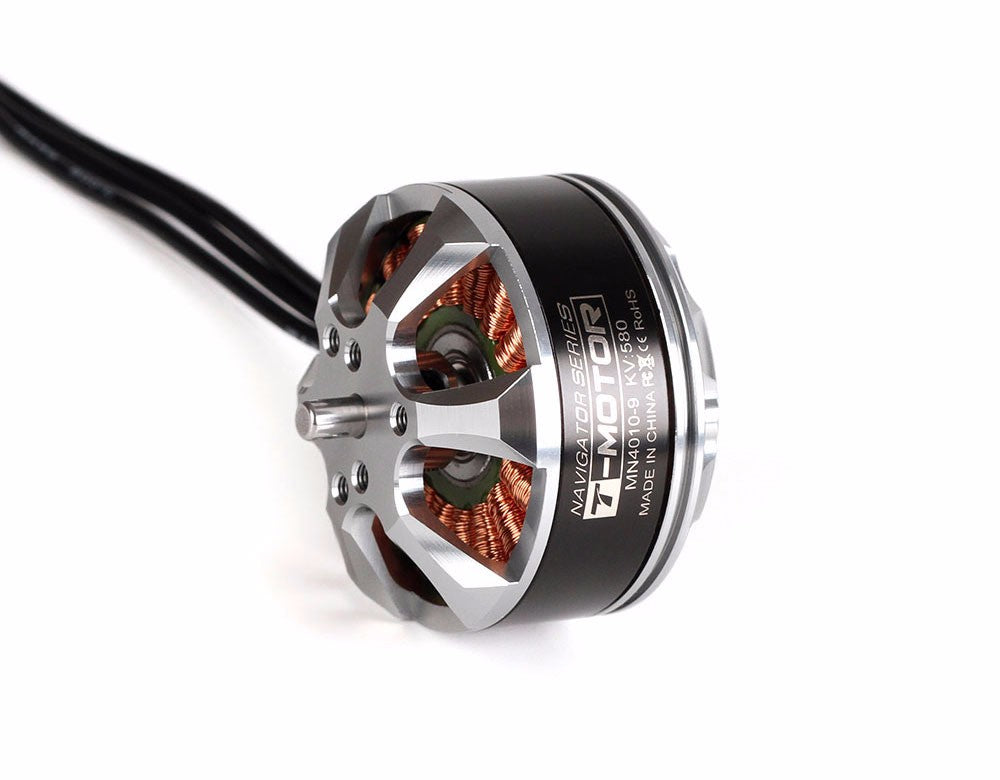

TMotor MN4010 Multirotor Fixed Wing UAV Motor (KV370 / KV475 / KV580)

About T-MOTOR MN4010 Multirotor Fixed Wing UAV Motor KV370

T-MOTOR MN4010 KV370 is a high-performance brushless motor designed for multi-rotor aircraft like quadcopters and hexacopters.Part of the MN40 series, it features oversized, high-quality ball bearings—twice the size of comparable motors—for smooth low-speed operation and superior stability under pressure.This "Navigator" series motor delivers a maximum thrust of 2.2kg, is recommended for use with a T-MOTOR P15*5 propeller, and offers an MTBF of approximately 1000 hours. Key features include long flight times, higher load capacity, and a lightweight yet high-strength construction, making it suitable for aerial photography, VTOL, and fixed-wing applications.

Navigator MN4010 Highlights:

Max. thrust:2.2kg
MTBF：About1000hours
Features：Super Balance; High Strength Construction

"Navigator" motors are for general uses like aerial photography. For demand of multi-rotors, VTOL and fixed wings.

Technical Drawing

Specification

Test Item	MN4010 KV370	Report NO.	MN.00019
Internal Resistance	98mΩ	Configuration	18N24P
Shaft Diameter	4mm	Motor Dimensions	Φ44.7×30.5mm
Stator Diameter	40mm	Stator Height	10mm
AWG	18#	Cable Length	600mm
Weight Including Cables	137g	Weight Excluding Cables	112g
No.of Cells(Lipo)	4-8S	Idle Current@10v	0.8A
Max Power (180S)	450W	Max Continuous Current 180S	20A

Test Item	MN4010 KV475	Report NO.	MN.00020
Internal Resistance	98mΩ	Configuration	18N24P
Shaft Diameter	4mm	Motor Dimensions	Φ44.7×30.5mm
Stator Diameter	40mm	Stator Height	10mm
AWG	18#	Cable Length	600mm
Weight Including Cables	137g	Weight Excluding Cables	112g
No.of Cells(Lipo)	4-8S	Idle Current@10v	0.8A
Max Power (180S)	540W	Max Continuous Current 180S	30A

Test Item	MN4010 KV580	Report NO.	MN.00021
Internal Resistance	42mΩ	Configuration	18N24P
Shaft Diameter	4mm	Motor Dimensions	Φ44.7×30.5mm
Stator Diameter	40mm	Stator Height	10mm
AWG	18#	Cable Length	600mm
Weight Including Cables	137g	Weight Excluding Cables	112g
No.of Cells(Lipo)	4-8S	Idle Current@10v	1.3A
Max Power (180S)	575W	Max Continuous Current 180S	31A

Test Data

Item No.	Voltage (V)	Prop	Throttle	Current (A)	Power (W)	Thrust (G)	RPM	Efficiency (G/W)	Operating Temperature (℃)
MN4010 KV370	14.8	T-MOTOR 14*4.8CF	50%	2.1	31.08	360	3100	11.58	44
			65%	3.1	45.88	510	3600	11.12
			75%	4.1	60.68	640	3960	10.55
			85%	5.4	79.92	810	4400	10.14
			100%	6.5	96.20	920	4700	9.56
		T-MOTOR 15*5CF	50%	2.3	34.04	430	2800	12.63	44
			65%	3.8	56.24	640	3400	11.38
			75%	5.1	75.48	820	3800	10.86
			85%	6.9	102.12	1020	4250	9.99
			100%	8.2	121.36	1160	4450	9.56
		T-MOTOR 16*5.4CF	50%	2.5	37.00	500	2650	13.51	45
			65%	4.3	63.64	770	3300	12.10
			75%	6.1	90.28	970	3650	10.74
			85%	8	118.40	1200	4000	10.14
			100%	9.6	142.08	1380	4300	9.71
	22.2	T-MOTOR 12*4CF	50%	3	66.60	600	5000	9.01	40
			65%	4	88.80	730	5600	8.22
			75%	5	111.00	860	6200	7.75
			85%	6.6	146.52	1090	6800	7.44
			100%	7.7	170.94	1200	7300	7.02
		T-MOTOR 13*4.4CF	50%	3.1	68.82	650	4800	9.44	47
			65%	4.3	95.46	810	5300	8.49
			75%	5.5	122.10	970	6000	7.94
			85%	7.1	157.62	1160	6700	7.36
			100%	8.5	188.70	1340	7100	7.10
		T-MOTOR 14*4.8CF	50%	3.5	77.70	780	4400	10.04	51
			65%	5.7	126.54	1060	5100	8.38
			75%	7.6	168.72	1310	5700	7.76
			85%	9.8	217.56	1590	6300	7.31
			100%	11.7	259.74	1830	6600	7.05
		T-MOTOR 15*5CF	50%	4.2	93.24	940	3900	10.08	52
			65%	7	155.40	1300	4800	8.37
			75%	9.3	206.46	1620	5350	7.85
			85%	12.2	270.84	1950	5700	7.20
			100%	14.6	324.12	2240	6100	6.91
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN4010 KV475	14.8	T-MOTOR 13*4.4CF	50%	2.8	41.44	410	4000	9.89	40
			65%	3.9	57.72	550	4500	9.53
			75%	5	74.00	680	5000	9.19
			85%	6.7	99.16	840	5500	8.47
			100%	7.9	116.92	940	5860	8.04
		T-MOTOR 14*4.8CF	50%	3.2	47.36	510	3600	10.77	47
			65%	5.1	75.48	730	4300	9.67
			75%	6.8	100.64	910	4700	9.04
			85%	8.8	130.24	1110	5150	8.52
			100%	10.7	158.36	1280	5300	8.08
		T-MOTOR 15*5CF	50%	3.5	51.80	590	3300	11.39	47
			65%	6.4	94.72	900	4000	9.50
			75%	8.5	125.80	1130	4500	8.98
			85%	11.3	167.24	1370	4900	8.19
			100%	13.3	196.84	1550	5200	7.87
		T-MOTOR 16*5.4CF	50%	4.2	62.16	710	3100	11.42	49
			65%	7.3	108.04	1060	3800	9.81
			75%	9.8	145.04	1340	4200	9.24
			85%	12.8	189.44	1590	4600	8.39
			100%	15.5	229.40	1800	4900	7.85
	22.2	T-MOTOR 12*4CF	50%	4.5	99.90	770	5700	7.71	50
			65%	6.1	135.42	960	6500	7.09
			75%	8.2	182.04	1180	7000	6.48
			85%	10.6	235.32	1440	7800	6.12
			100%	12.9	286.38	1680	8300	5.87
		T-MOTOR 13*4.4CF	50%	4.8	106.56	810	5600	7.60	52
			65%	6.6	146.52	1070	6300	7.30
			75%	8.9	197.58	1320	6900	6.68
			85%	11.7	259.74	1630	7600	6.28
			100%	14.1	313.02	1870	8100	5.97
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN4010 KV580	14.8	T-MOTOR 13*4.4CF	50%	4.6	68.08	680	4800	9.99	41
			65%	6.2	91.76	820	5400	8.94
			75%	8.3	122.84	1030	6000	8.38
			85%	11.1	164.28	1300	6700	7.91
			100%	13.2	195.36	1420	7100	7.27
		T-MOTOR 14*4.8CF	50%	5.3	78.44	710	4200	9.05	49
			65%	8.6	127.28	1000	5000	7.86
			75%	11.4	168.72	1200	5500	7.11
			85%	15.2	224.96	1500	6200	6.67
			100%	18.1	267.88	1750	6600	6.53
		T-MOTOR 15*5CF	50%	5.8	85.84	770	4000	8.97	50
			65%	10	148.00	1190	4800	8.04
			75%	13.4	198.32	1450	5300	7.31
			85%	17.6	260.48	1800	5800	6.91
			100%	21.2	313.76	2000	6200	6.37
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
