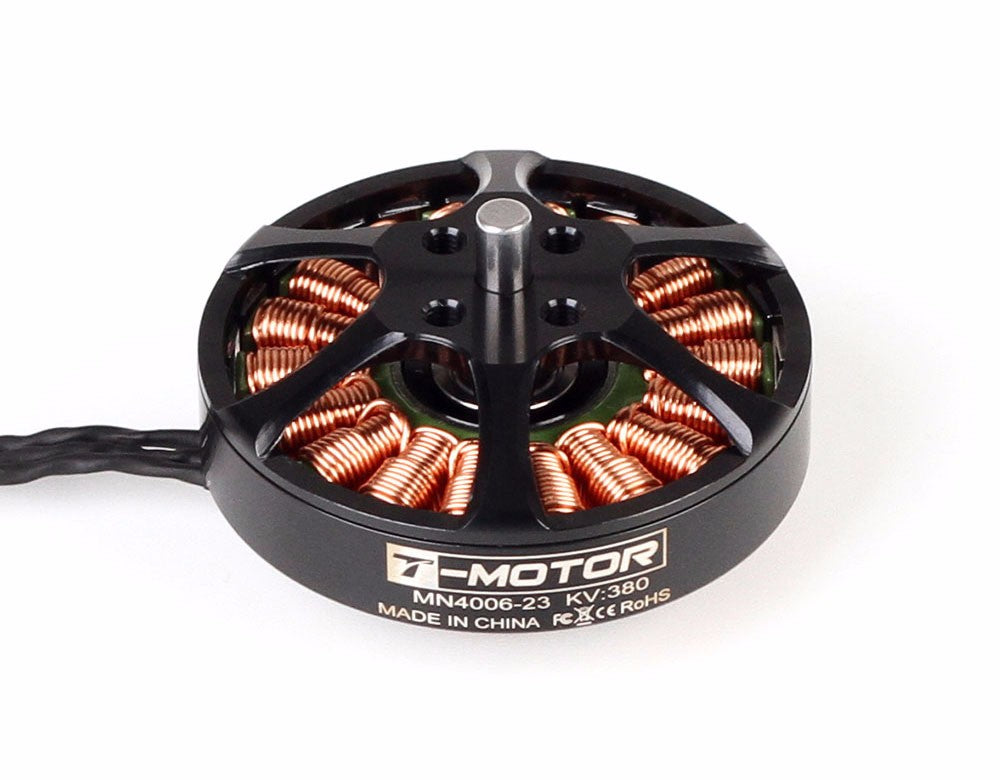

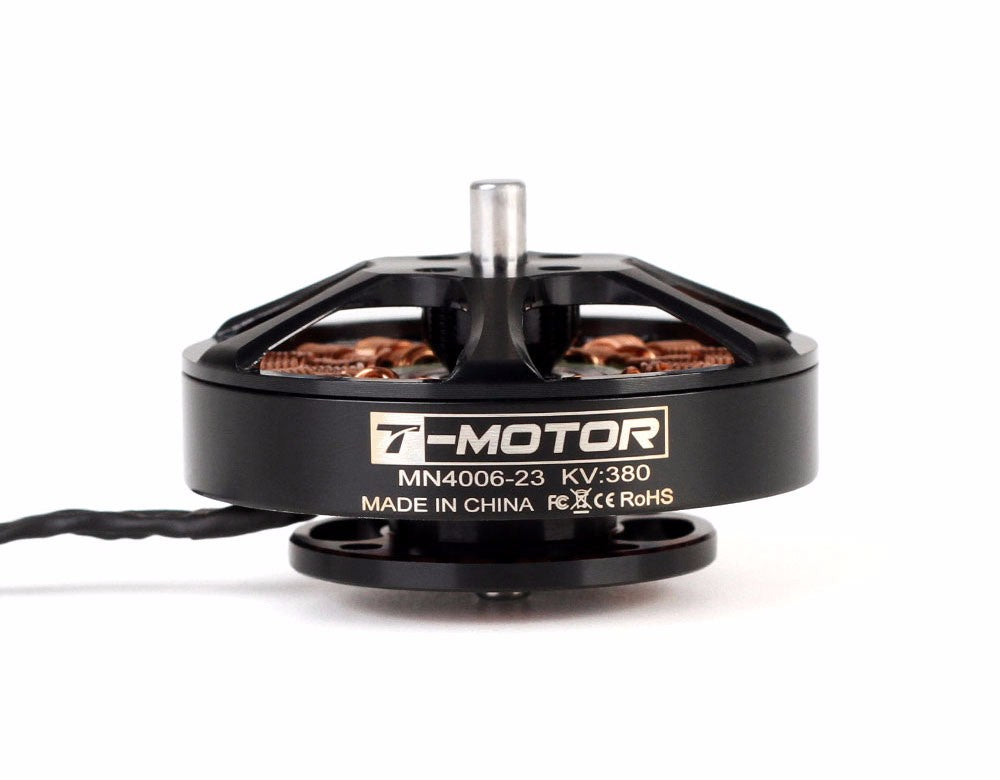

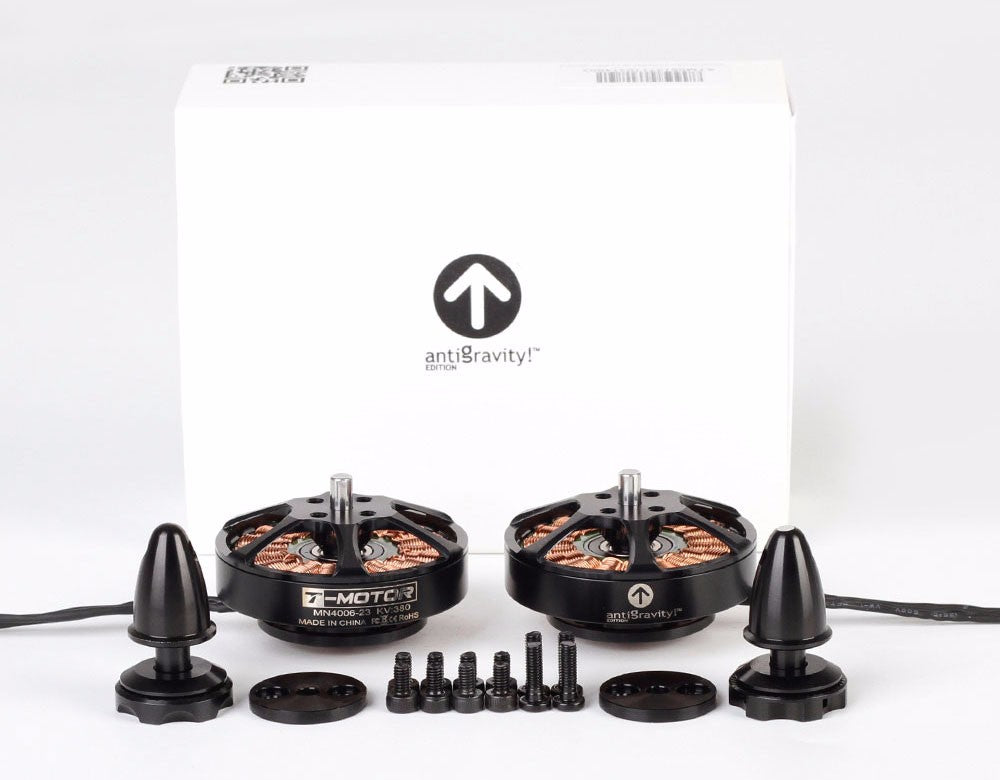

TMotor MN4006 Antigravity Type 4-6S UAV Motor (KV380) 2PCS/SET

About T-MOTOR MN4006 Multirotor UAV Motor KV380

T-MOTOR MN4006 Antigravity KV380 is a revolutionary brushless motor designed for top-tier UAV performance. Weighing only 57g, it’s one of the lightest motors in its class, offering exceptional power without compromising on durability. Crafted with precision, this motor delivers unparalleled efficiency, making it the ideal choice for builders who demand both high performance and reliability.Up to 1.6kg thrust

Antigravity MN4006 Highlights:

Ultrathin design , lightest weight compare the same size motor in market
Single thick copper wire winding by hand
Unique ventilation and cooling design
Excellent assembling workmanship
High grade EZO bearing
92% Max Efficiency (4-6A)
Up to 1.6kg thrust

Technical Drawing

Specification

Test Item	KV380	Weight (Incl. Cable)	68g
Motor Dimensions	Φ44.35×21mm	Internal Resistance	194mΩ
Lead	50mm	Configuration	18N24P
Shaft Diameter	40mm	Rated Voltage(Lipo)	4-6S
Idle Current(22V)	0.3A	Peak Current(180s)	16A
Max Power (180S)	380W

Test Data

Type	Voltage (V)	Propeller	Throttle	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
MN4006 KV380	24	T-MOTOR 13*4.4" CF	50%	2.00	48	3719	0.10	544	11.33	30
			55%	2.50	60	4528	0.11	656	10.93
			60%	3.10	74	4840	0.12	753	10.12
			65%	3.70	89	5155	0.14	853	9.61
			75%	5.10	122	5451	0.17	1062	8.68
			85%	6.80	163	6327	0.21	1286	7.88
			100%	9.70	233	6515	0.27	1633	7.01
		T-MOTOR 14*4.8" CF	50%	2.40	58	3961	0.12	675	11.72	37
			55%	3.20	77	4329	0.14	798	10.39
			60%	3.80	91	4619	0.16	908	9.96
			65%	4.70	113	4925	0.18	1033	9.16
			75%	6.50	156	5485	0.22	1286	8.24
			85%	8.50	204	6004	0.27	1576	7.73
			100%	12.20	293	6731	0.34	1975	6.75
		T-MOTOR 15*5" CF	50%	3.10	74	3746	0.15	805	10.82	46
			55%	4.10	98	4089	0.18	959	9.75
			60%	4.80	115	4358	0.20	1093	9.49
			65%	5.80	139	4634	0.23	1236	8.88
			75%	8.30	199	5215	0.29	1561	7.84
			85%	10.70	257	5627	0.33	1823	7.10
			100%	15.00	360	6177	0.40	2228	6.19
		T-MOTOR 16*5.4" CF	50%	3.70	89	3495	0.19	928	10.45	HOT
			55%	4.80	115	3817	0.22	1096	9.51
			60%	5.90	142	4079	0.25	1258	8.88
			65%	7.20	173	4326	0.29	1427	8.26
			75%	10.00	240	4803	0.34	1740	7.25
			85%	12.90	310	5119	0.39	1970	6.36
			100%	17.50	420	5445	0.45	2309	5.50
Note: The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
