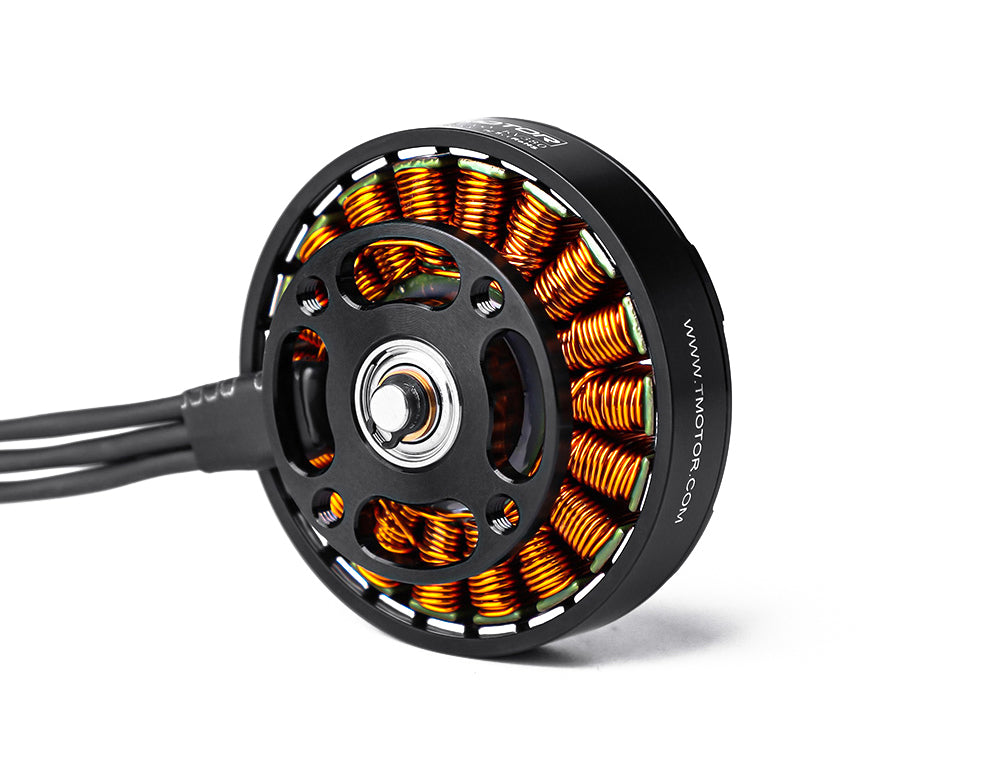

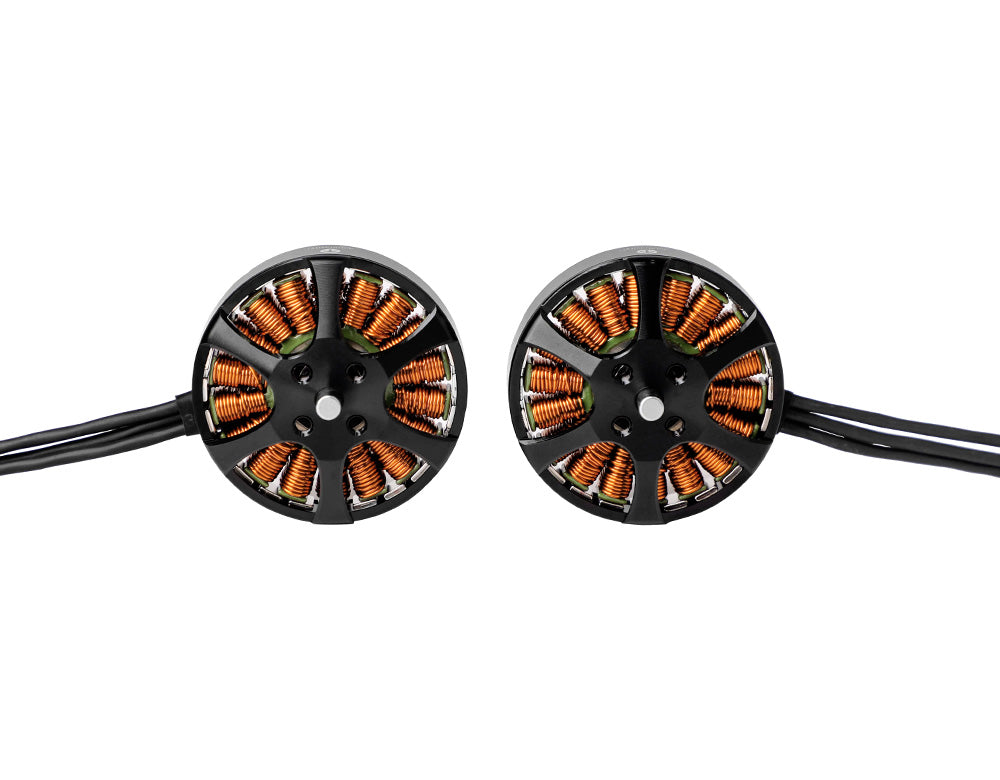

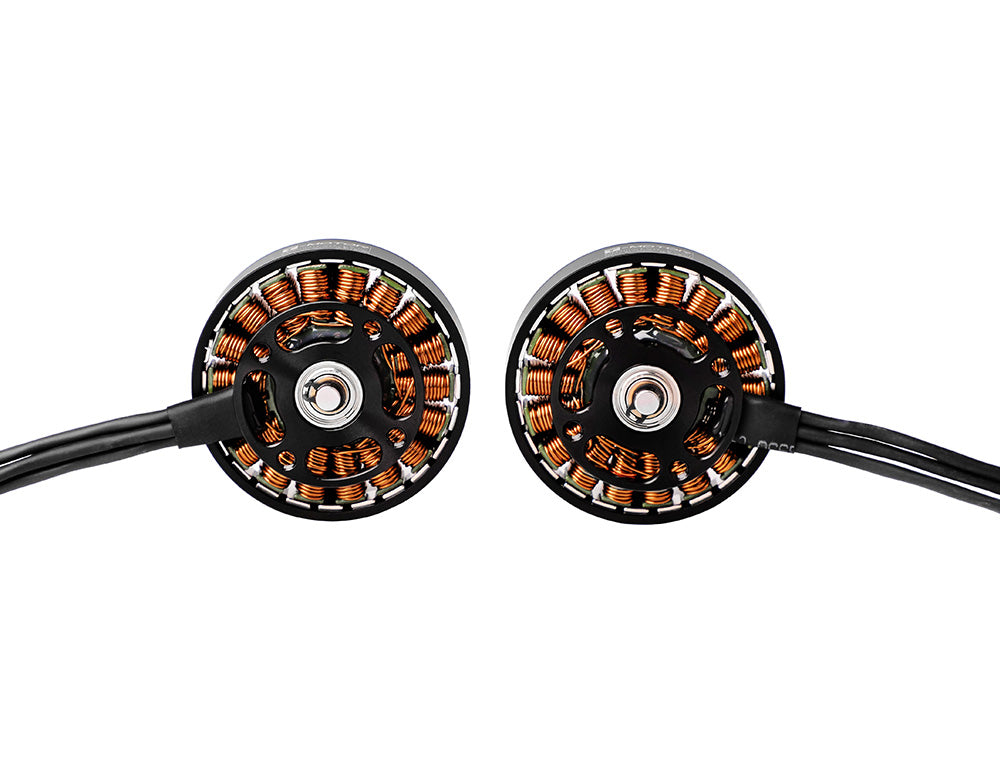

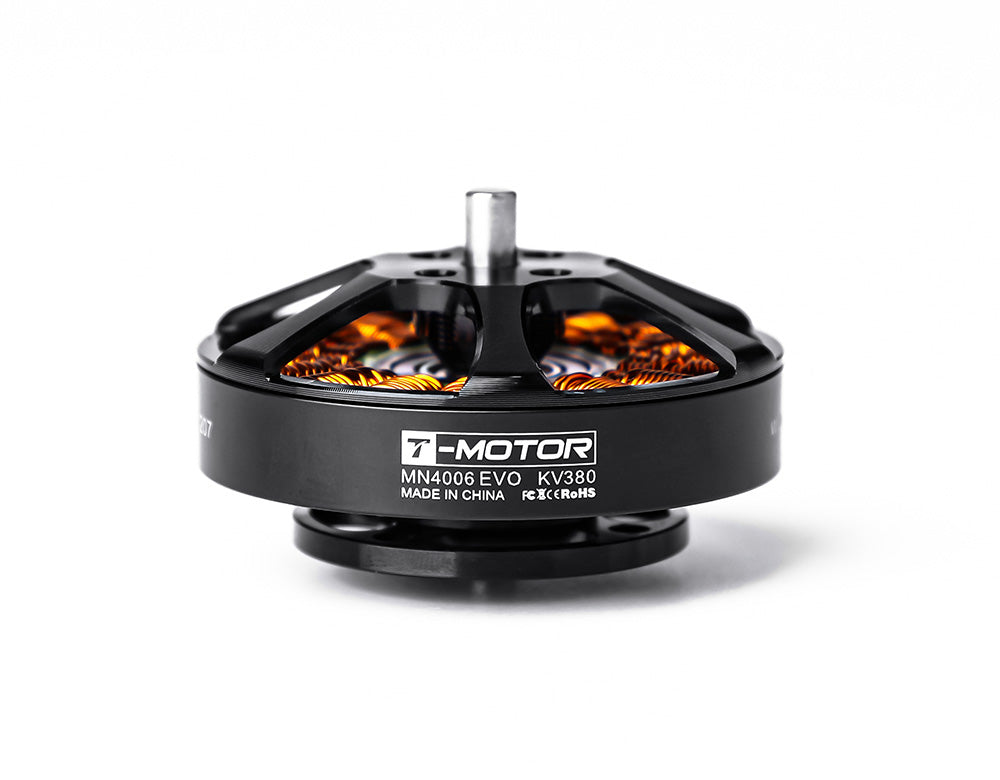

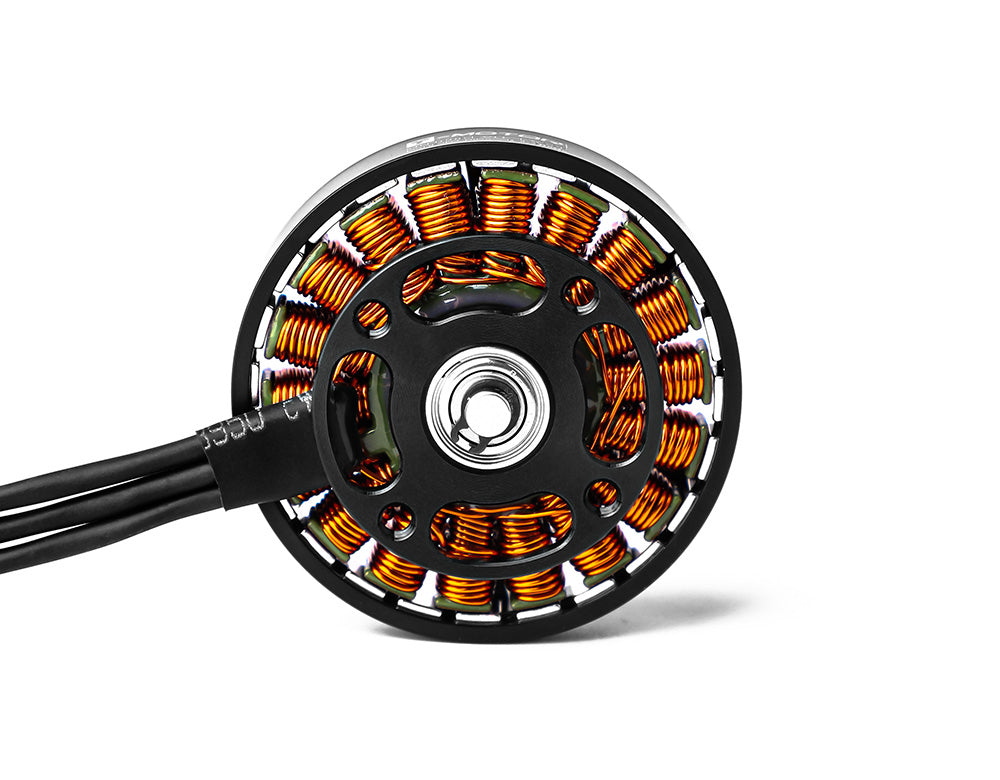

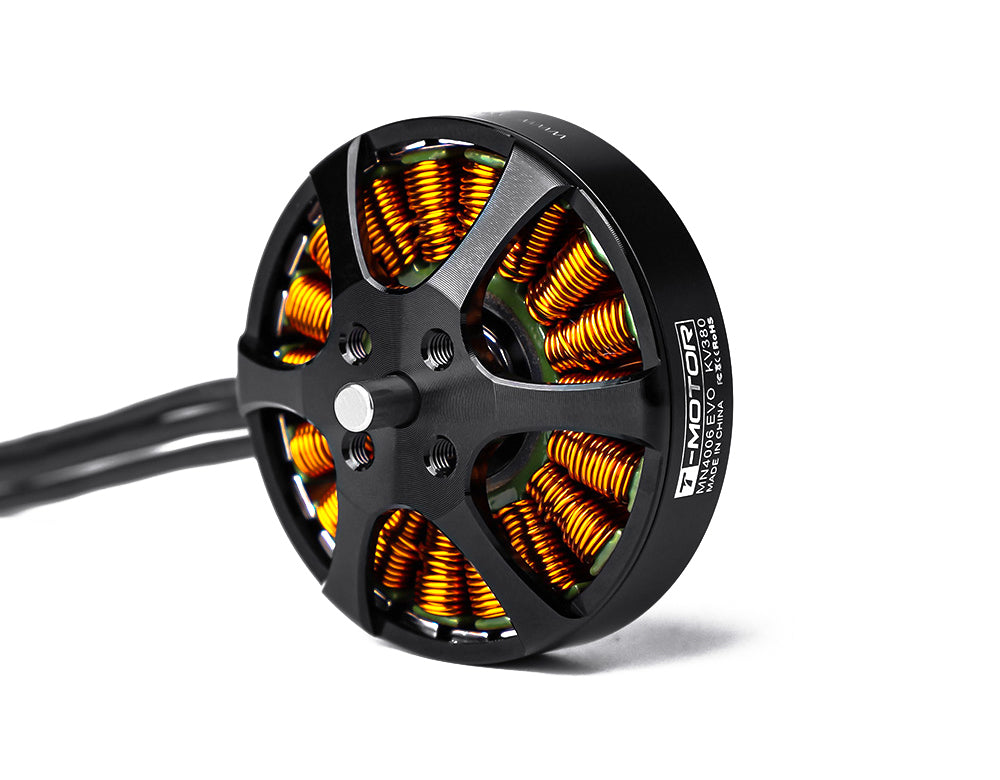

TMotor MN4006 EVO Antigravity Type UAV Motor (KV380) 2PCS/SET

About T-MOTOR MN4006 EVO Multirotor UAV Motor KV380

T-MOTOR Antigravity MN4006 EVO KV380 is engineered to elevate your UAV performance with its superior build quality, innovative design, and cutting-edge technology. With a higher efficiency EZO bearing, this motor is built to last, offering exceptional durability and a flight time of 60-80 hours, as confirmed by official testing.Up to 1.6kg thrust

Antigravity MN4006 EVO Highlights:

Unique Ventilation and Cooling System
Ultrathin Design Lightest Weight
MN4006 EVO THENEWUPGRADE Higher force efficiency greater pulling force
Higher force efficiency higher force under the same pulling force
11% under load the maximum temperatureon the motor surface decreases
Up to 1.6kg thrust

Technical Drawing

Specification

Motor Size	Φ44.1*29.3mm	Magnet Level	150℃ high temperature resistance
Stator	Anti-rust treatment; 180℃ high temperature-resisting coatings	Lead	Enameled Wire 50mm
Configuration	18N24P	Copper Wire	240℃ high temperature resistance
Shaft Diameter	IN：4mm，OUT：4mm	Coil Insulation Test	500V
Bearing	Imported 694ZZ	Package Size	1138940mm

KV	380	Rated Voltage (LiPo)	6S
Idle Current(10V)	0.7A	Internal Resistance	159mΩ
Peak Current(180s)	18A	Weight (Incl. Cable)	73g
Max. Power(180s)	300W	Package Weight	235g

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
MN4006 EVO	P15	40%	24.00	465	0.09	1.58	3019	38	12.24	/
		45%	23.99	586	0.11	2.15	3358	52	11.36
		50%	23.98	717	0.13	2.81	3689	67	10.64
		55%	23.96	858	0.16	3.56	4009	85	10.05
		60%	23.94	1009	0.18	4.47	4326	107	9.43
		65%	23.92	1157	0.21	5.40	4611	129	8.95
		70%	23.90	1304	0.24	6.40	4883	153	8.52
		75%	23.88	1464	0.27	7.58	5158	181	8.09
		80%	23.85	1630	0.30	8.88	5431	212	7.69
		90%	23.80	1968	0.36	11.78	5945	280	7.02
		100%	23.74	2273	0.41	14.74	6370	350	6.49
	P16	40%	24.00	547	0.11	1.87	2900	45	12.17	/
		45%	23.98	698	0.14	2.62	3242	63	11.15
		50%	23.96	846	0.17	3.41	3561	82	10.36
		55%	23.94	1004	0.20	4.32	3858	103	9.70
		60%	23.92	1172	0.23	5.39	4146	129	9.09
		65%	23.90	1347	0.26	6.58	4424	157	8.58
		70%	23.88	1507	0.29	7.74	4658	185	8.16
		75%	23.85	1685	0.32	9.18	4914	219	7.69
		80%	23.82	1867	0.36	10.73	5155	256	7.30
		90%	23.75	2231	0.43	14.23	5609	338	6.60
		100%	23.68	2543	0.49	17.66	5964	418	6.08
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
