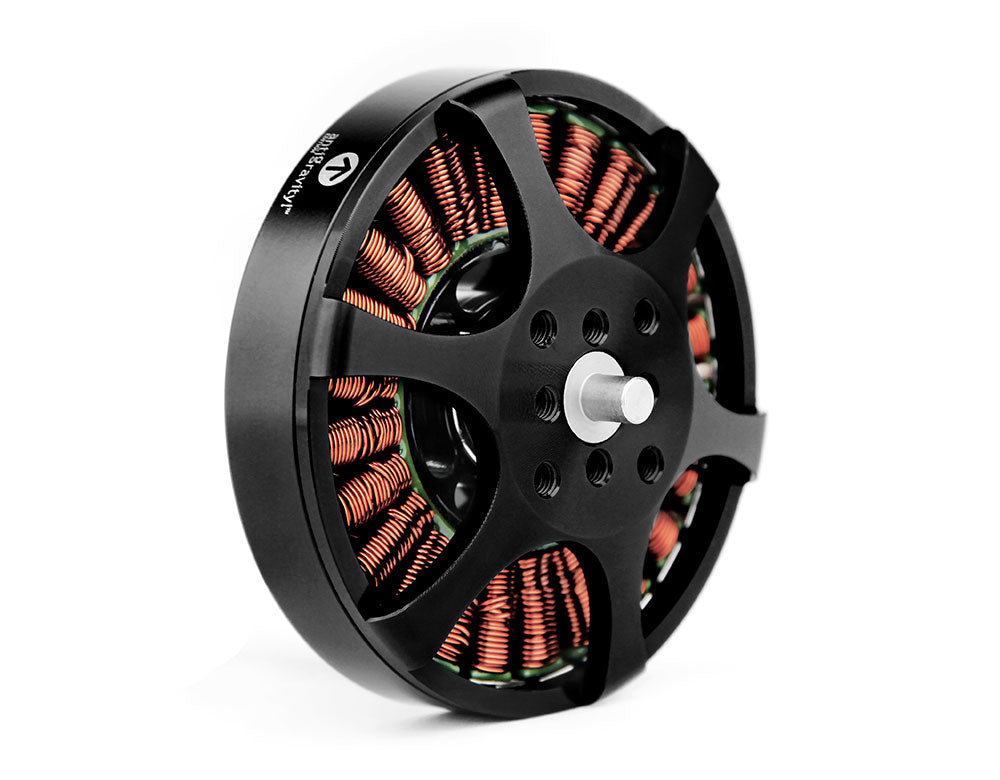

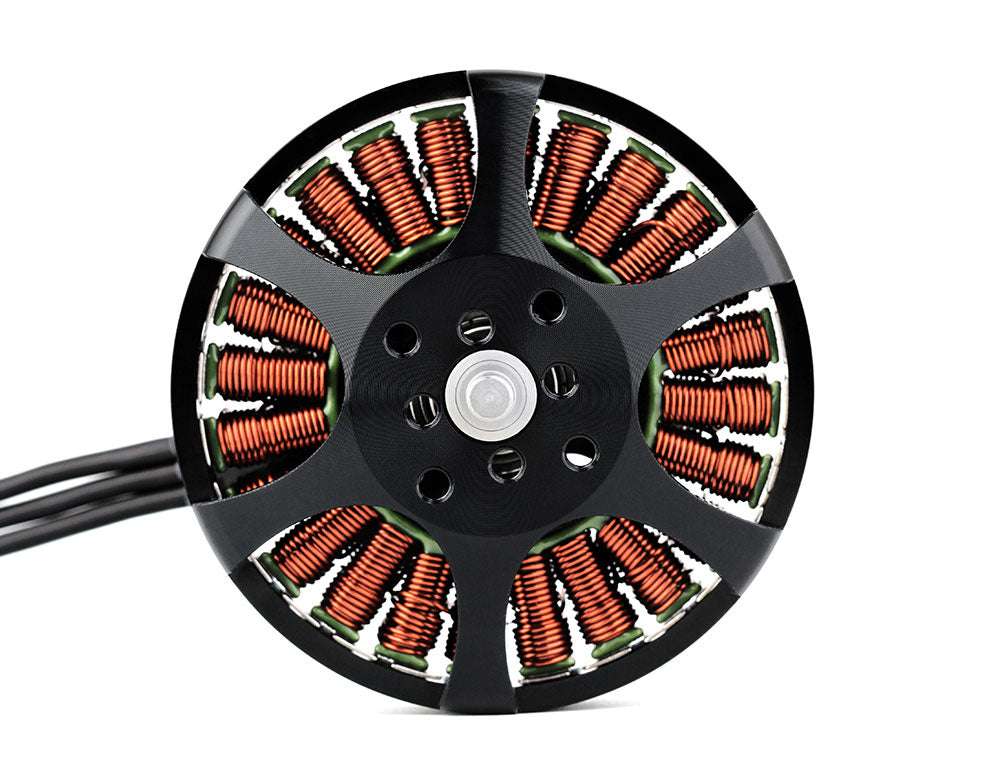

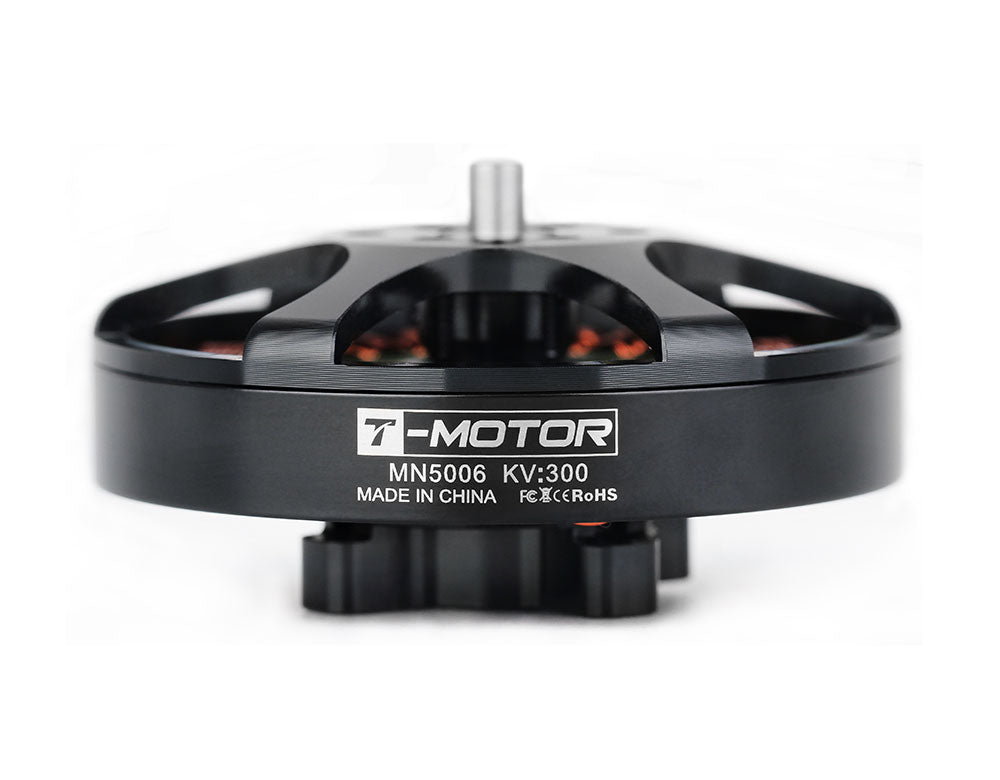

TMotor MN5006 Antigravity Type 4-6S UAV Motor (KV300 / KV450)

About T-MOTOR MN5006 Multirotor VTOL UAV Motor KV300

T-Motor Antigravity MN5006 series is a powerful, lightweight brushless motor designed to meet the demanding needs of professional UAV operators. Ideal for aerial photography, surveying, and mapping, this motor combines ultra-lightweight design with high efficiency and superior thrust, making it the perfect choice for long-duration flights and precise aerial maneuvers.

Antigravity MN5006 Highlights:

Ultra light, high efficiency
Devote to long flight
Quadcopter of 4kg, 60mins flight time
Run smoothly, low cogging torque

" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.

Technical Drawing

Specification

Motor Size	Φ55.6*30mm	Copper Wire	180℃ high temperature resistance: Level H
Stator	Imported silicon steel sheet; Anti-rust treatment; 180℃high temperature-resisting coatings	Coil Insulation Test	500V

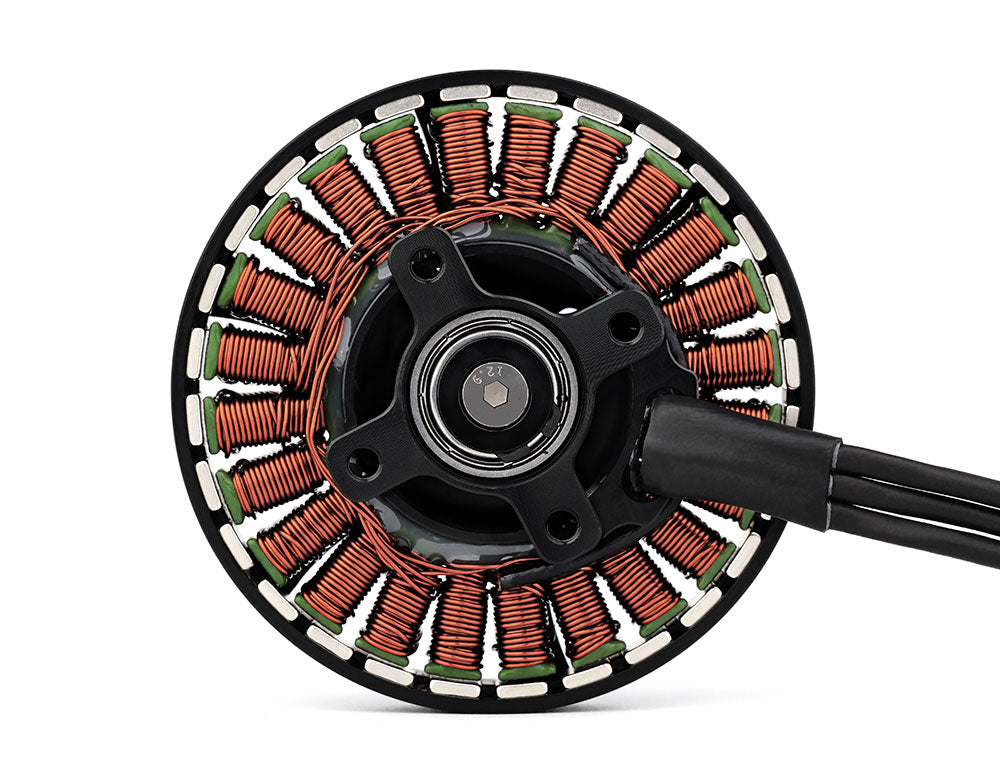

Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：6mm	Rotor Dynamic Balance Standard	≤15mg
Bearing	Imported 696ZZ	Motor Dynamic Balance Standard	≤10mg
Magnet Level	150℃ high temperature resistance: Level E	Packing Size	1068135mm
Lead Cable	80mm

KV	300	Rated Voltage(Lipo)	4-6S
Idle Current(22V)	0.6A	ESC Recommendation	AIR 40A
Peak Current(180s)	20A	Propeller Recommendation	P17-18"
Max. Power(180s)	500W	Motor Weight(Incl. Cable)	108g
Internal Resistance	125mΩ	Package Weight	170g

KV	450	Rated Voltage(Lipo)	4-6S
Idle Current(22V)	0.9A	ESC Recommendation	AIR 40A
Peak Current(180s)	26A	Propeller Recommendation	P14-18"
Max. Power(180s)	650W	Motor Weight(Incl. Cable)	106g
Internal Resistance	60mΩ	Package Weight	170g

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
MN5006 KV300	T-MOTOR P17*5.8" CF	40%	23.70	1.63	39	2481	0.10	501	13.02	67
		45%	23.67	2.21	52	2790	0.13	640	12.24
		50%	23.64	2.88	68	3103	0.15	784	11.5
		55%	23.61	3.71	88	3410	0.19	942	10.75
		60%	23.57	4.66	110	3689	0.22	1119	10.18
		65%	23.54	5.68	134	3947	0.25	1289	9.64
		70%	23.50	6.78	159	4203	0.29	1454	9.13
		75%	23.46	8.00	188	4442	0.32	1631	8.69
		80%	23.42	9.28	217	4664	0.35	1798	8.28
		90%	23.32	12.31	287	5105	0.43	2186	7.62
		100%	23.22	15.41	358	5491	0.50	2538	7.09
	T-MOTOR P18*6.1" CF	40%	23.68	2.04	48	2410	0.14	629	13	82
		45%	23.64	2.80	66	2702	0.17	792	11.96
		50%	23.61	3.67	87	2988	0.21	968	11.18
		55%	23.57	4.75	112	3264	0.24	1162	10.38
		60%	23.53	5.91	139	3525	0.29	1366	9.82
		65%	23.48	7.25	170	3762	0.33	1572	9.24
		70%	23.43	8.69	204	3996	0.38	1777	8.73
		75%	23.38	10.22	239	4219	0.42	1980	8.29
		80%	23.33	11.89	277	4424	0.46	2183	7.87
		90%	23.21	15.70	364	4807	0.55	2618	7.19
		100%	23.09	19.63	453	5131	0.63	2996	6.61
MN5006 KV450	T-MOTOR P14*4.8" CF	40%	23.65	2.66	63	3983	0.11	610	9.69	42
		45%	23.62	3.31	78	4318	0.12	724	9.25
		50%	23.60	4.04	95	4674	0.14	840	8.82
		55%	23.56	5.01	118	5059	0.17	988	8.37
		60%	23.52	6.17	145	5440	0.19	1160	8
		65%	23.44	7.60	178	5757	0.22	1291	7.27
		70%	23.43	8.64	202	6136	0.24	1479	7.31
		75%	23.38	10.24	240	6527	0.27	1674	6.99
		80%	23.33	11.96	279	6883	0.31	1878	6.73
		90%	23.20	16.06	372	7588	0.37	2296	6.16
		100%	23.07	20.16	465	8168	0.44	2672	5.75
	T-MOTOR P15*5" CF	40%	23.63	3.17	75	3730	0.13	723	9.66	63
		45%	23.58	4.20	99	4141	0.16	895	9.03
		50%	23.54	5.41	127	4528	0.20	1084	8.51
		55%	23.50	6.67	157	4887	0.23	1259	8.03
		60%	23.45	8.17	191	5239	0.27	1458	7.61
		65%	23.40	9.76	228	5573	0.30	1643	7.2
		70%	23.34	11.43	267	5868	0.34	1839	6.89
		75%	23.27	13.56	316	6219	0.38	2079	6.59
		80%	23.20	15.88	368	6550	0.42	2307	6.26
		90%	23.05	21.08	486	7169	0.51	2792	5.75
		100%	22.89	26.28	601	7682	0.59	3218	5.35
MN5006 KV450	T-MOTOR P17*5.8" CF	40%	15.69	2.15	34	2353	0.09	438	12.99	45
		45%	15.67	2.85	45	2614	0.11	562	12.6
		50%	15.63	3.78	59	2912	0.14	694	11.76
		55%	15.58	4.91	76	3206	0.17	840	10.98
		60%	15.55	6.09	95	3477	0.20	987	10.43
		65%	15.50	7.41	115	3711	0.23	1144	9.97
		70%	15.45	8.84	137	3942	0.25	1294	9.47
		75%	15.40	10.49	161	4167	0.28	1453	9
		80%	15.35	12.13	186	4377	0.31	1603	8.61
		90%	15.23	15.95	243	4800	0.38	1934	7.97
		100%	15.11	19.85	300	5153	0.44	2228	7.43
	T-MOTOR P18*6.1" CF	40%	15.67	2.74	43	2271	0.12	555	12.92	64
		45%	15.63	3.62	57	2524	0.15	694	12.27
		50%	15.59	4.84	75	2805	0.19	853	11.31
		55%	15.54	6.23	97	3067	0.22	1030	10.64
		60%	15.49	7.74	120	3314	0.26	1204	10.03
		65%	15.44	9.37	145	3534	0.29	1374	9.51
		70%	15.37	11.22	173	3757	0.33	1540	8.93
		75%	15.32	13.10	201	3959	0.37	1720	8.57
		80%	15.25	15.27	233	4142	0.41	1911	8.21
		90%	15.10	19.98	302	4504	0.48	2274	7.54
		100%	14.96	24.82	371	4801	0.55	2609	7.03
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
