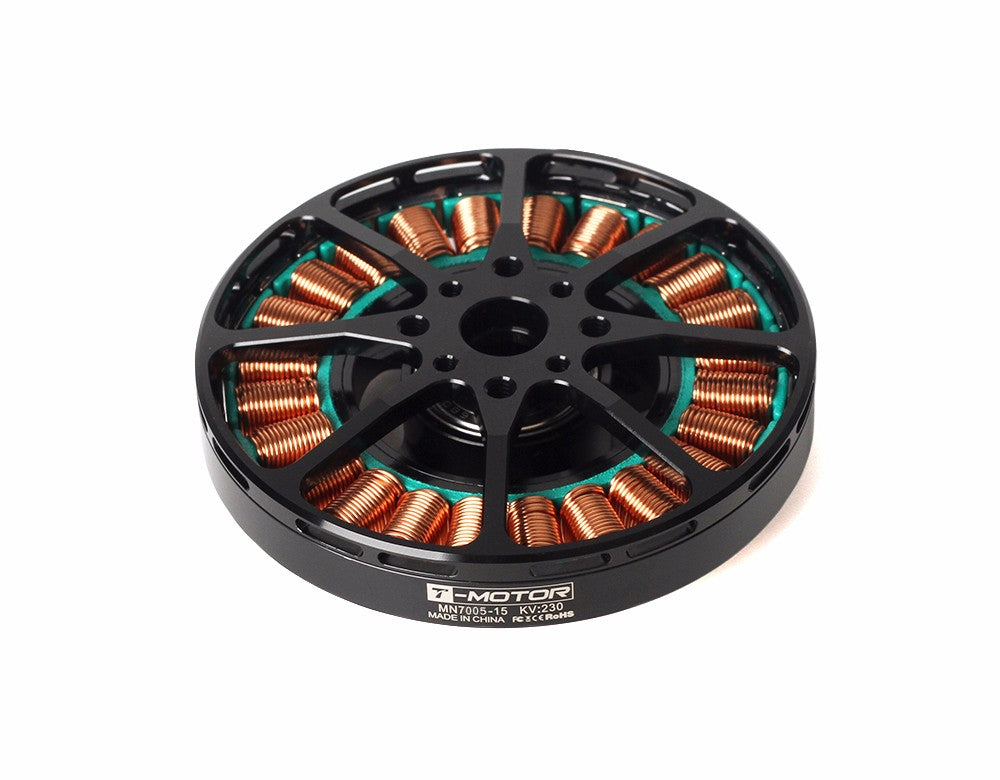

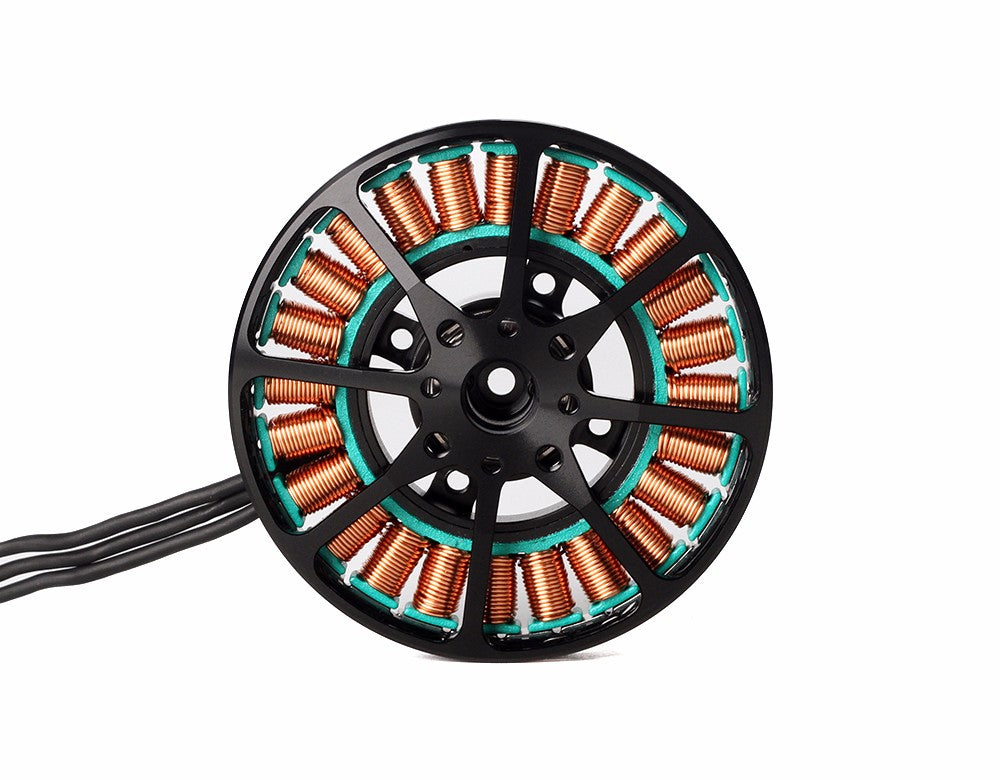

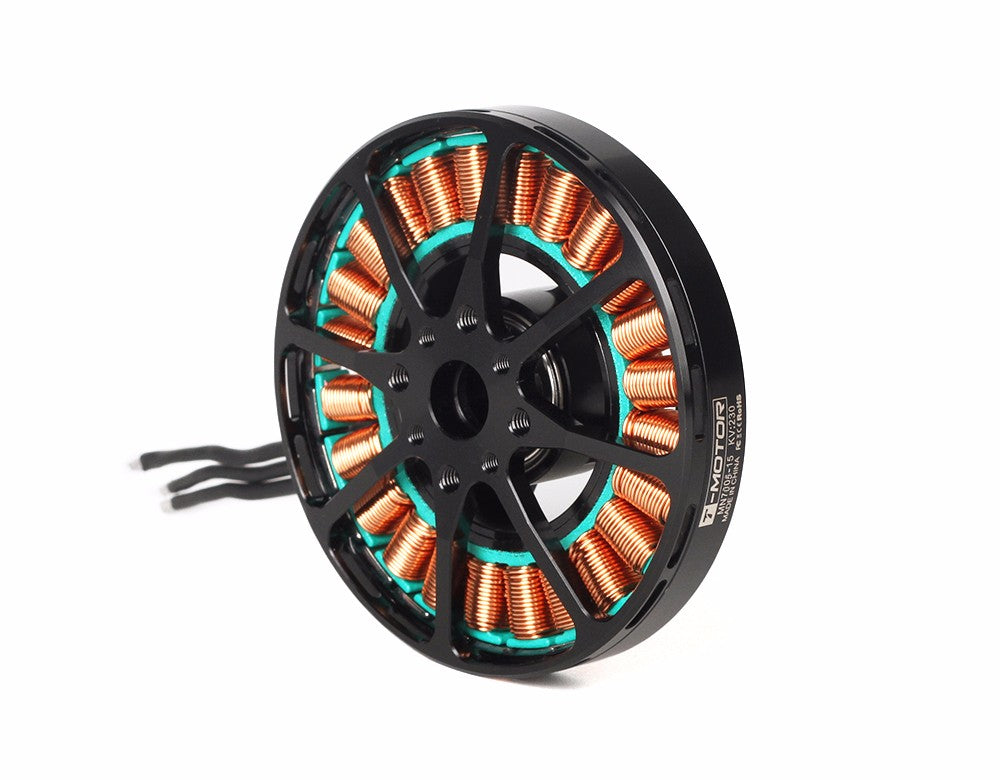

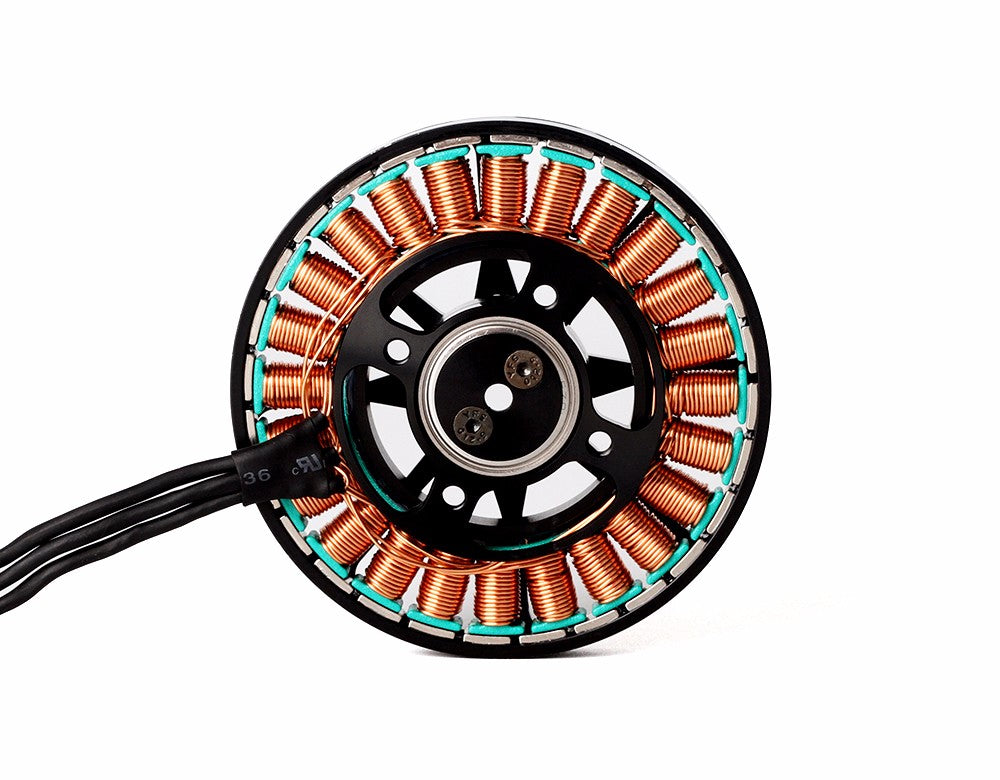

TMotor MN7005 Antigravity Type 6-12S UAV Motor (KV115 / KV230)

About T-MOTOR MN7005 Multirotor VTOL UAV Motor KV115

T-Motor Antigravity MN7005 KV115 offers an ultra-lightweight and energy-efficient solution for a variety of aerial applications. Whether you're engaged in aerial photography, surveying, or long-duration flights, the MN7005 delivers precision thrust, improved motor efficiency, and enhanced stability.Antigravity 7005 T-Motors are available with an anti-high temperature curved magnet which increases motor performance by 5%. Energy-saving Antigravity-type Tiger motors have 1.5kg thrust with an efficiency of 13g/W. up to 7kg thrust

Antigravity MN7005 Highlights:

Imported German 7075 aviation aluminum
Ultra Lightweight 188g only
Anti-high temperature curved magnet with precise
Motor performance increase by 5%
ATA01123 prop adapter for P22inch prop
MN7005 is for thrust requireme
up to 7kg thrust

" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.

Technical Drawing

Specification

Motor Size	Φ79*21mm	Copper Wire	180℃high temperature resistance: Level H
Stator	Imported silicon steel sheet; Anti-rust treatment; 180℃high temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：15mm	Rotor Dynamic Balance Standard	≤15mg
Bearing	Imported 6802ZZ	Motor Dynamic Balance Standard	≤10mg
Magnet Level	150℃high temperature resistance: Level E	Packing Size	144114.535mm
Lead Cable	60mm

KV	115	Internal Resistance	288mΩ
Idle Current(22V)	0.4A	Rated Voltage(Lipo)	6-12S
Peak Current(180s)	15A	Motor Weight (Incl. Cable)	188g
Max. Power(180s)	750W	Package Weight	320g

KV	230	Internal Resistance	71mΩ
Idle Current(22V)	0.9A	Rated Voltage(Lipo)	6S
Peak Current(180s)	28A	Motor Weight (Incl. Cable)	188g
Max. Power(180s)	700W	Package Weight	320g

Test Data

Type	Voltage (V)	Propeller	Throttle	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
MN7005 KV115	48	T-MOTOR P24*7.2" CF	40%	1322	0.38	2.02	1972	97	13.64	66 (Ambient Temperature: 20℃)
			42%	1408	0.41	2.19	2032	105	13.4
			44%	1513	0.44	2.45	2142	117	12.89
			46%	1606	0.46	2.64	2207	126	12.7
			48%	1707	0.48	2.88	2284	138	12.4
			50%	1807	0.51	3.13	2364	150	12.05
			52%	1947	0.55	3.51	2460	168	11.6
			54%	2068	0.58	3.82	2542	183	11.3
			56%	2164	0.6	4.05	2606	194	11.16
			58%	2280	0.64	4.39	2699	210	10.87
			60%	2398	0.67	4.73	2778	226	10.6
			62%	2507	0.7	5.07	2855	243	10.33
			64%	2627	0.73	5.45	2926	260	10.08
			66%	2756	0.76	5.82	2999	278	9.91
			68%	2888	0.79	6.26	3075	299	9.65
			70%	3014	0.83	6.71	3136	320	9.4
			75%	3346	0.91	7.90	3343	377	8.87
			80%	3605	0.98	8.83	3474	421	8.56
			90%	4224	1.14	11.29	3758	537	7.86
			100%	4783	1.32	14.07	4038	669	7.15
MN7005 KV230	24	T-MOTOR P24*7.2" CF	40%	1407	0.39	4.40	2023	105	13.44	64 (Ambient Temperature: 21℃)
			42%	1501	0.42	4.79	2104	114	13.17
			44%	1592	0.43	5.18	2165	123	12.92
			46%	1698	0.46	5.71	2266	136	12.51
			48%	1837	0.49	6.43	2347	152	12.04
			50%	1951	0.52	7.04	2456	167	11.68
			52%	2063	0.54	7.65	2531	181	11.39
			54%	2153	0.57	8.18	2596	194	11.11
			56%	2261	0.6	8.83	2684	209	10.83
			58%	2378	0.63	9.53	2762	225	10.56
			60%	2491	0.65	10.23	2835	241	10.31
			62%	2605	0.69	10.96	2906	259	10.07
			64%	2708	0.72	11.60	2967	273	9.9
			66%	2841	0.75	12.64	3050	297	9.55
			68%	2948	0.78	13.50	3120	317	9.29
			70%	3060	0.81	14.31	3182	336	9.1
			75%	3344	0.89	16.53	3335	387	8.64
			80%	3632	0.96	18.79	3479	438	8.28
			90%	4184	1.12	23.77	3763	551	7.59
			100%	4691	1.28	29.15	4016	670	6.99
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
