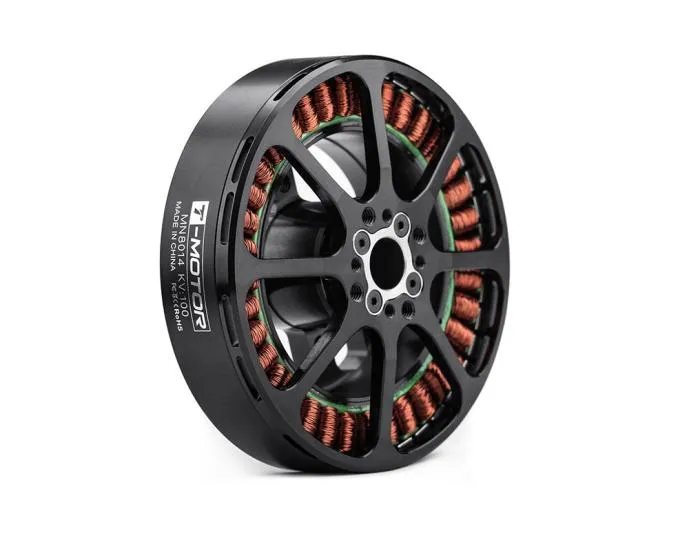

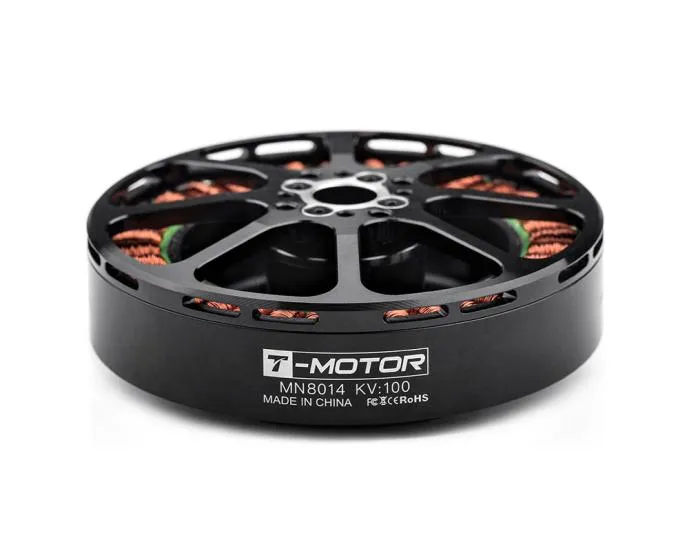

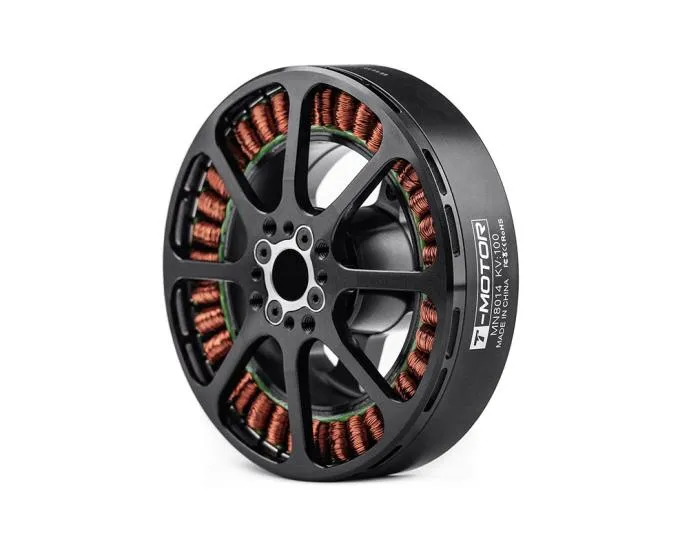

TMotor MN8014 Antigravity Multirotor VTOL UAV Motor (KV100)

About T-MOTOR MN8014 Multirotor VTOL UAV Motor KV100

T-Motor Antigravity MN8014 KV100 Brushless Motor is designed to deliver exceptional power and reliability for professional UAVs, including multi-rotors and VTOL applications. With a maximum thrust of 13.9kg and a power ratio of 35, this motor provides the perfect balance of performance and durability, ensuring smooth, stable flights even under heavy loads.

Antigravity MN8014 Highlights:

Ultra light, high efficiency
Max.Thrust:13.9kg, Motor Weight:439g, Power Ratio:35
Employment of 15mm aluminium shaft and 24mm big bearing for stability improvement and service life extension.
Motor service life: 800 hours
Self-circulating cooling system, high-temperature-resistant wires and arc magnets help release all potential for high efficiency.
Imported bearings and high strength 7075 aviation aluminium alloy for long motor endurance.

" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.

Technical Drawing

Specification

Motor Size	Φ87.8*31.5mm	Magnet Level	180℃ high temperature resistance
Stator	Anti-rust treatment; 180℃high temperature-resisting coatings	Lead	14AWG*90mm
Configuration	36N42P	Copper Wire	220℃ high temperature resistance
Shaft Diameter	IN：12mm	Coil Insulation Test	1000V/5s
Bearing	Imported 6901ZZ	Rotor Dynamic Balance Standard	≤15Mg

KV	100	Rated Voltage(Lipo)	12S
Idle Current(24V)	1.4A	Internal Resistance	65mΩ
Peak Current(180s)	52A	Weight (Incl. Cable)	392g
Max. Power (180s)	2423W	Package Weight	602g

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
MN8014 KV100	T-MOTOR G29*9.5"	40%	47.72	2325	0.79	4.00	1740	191	12.20	66℃
		45%	47.69	2831	0.95	5.17	1910	247	11.48
		50%	47.66	3469	1.16	6.80	2108	324	10.70
		55%	47.60	4283	1.42	9.11	2333	434	9.88
		60%	47.53	5136	1.69	11.59	2552	551	9.32
		65%	47.47	6019	1.99	14.76	2760	701	8.59
		70%	47.39	6941	2.28	18.19	2958	862	8.05
		75%	47.33	7818	2.56	21.59	3136	1022	7.65
		80%	47.25	8712	2.85	25.48	3300	1204	7.24
		90%	46.99	10536	3.44	33.82	3603	1589	6.63
		100%	46.77	12823	4.19	45.68	3947	2136	6.00
	T-MOTOR G30*10.5"	40%	47.68	2720	0.94	4.62	1725	220	12.35	92℃
		45%	47.63	3255	1.12	6.01	1882	286	11.37
		50%	47.50	3949	1.36	7.79	2062	370	10.68
		55%	47.40	4858	1.67	10.51	2278	498	9.75
		60%	47.29	5851	2.01	13.57	2494	642	9.12
		65%	47.25	6771	2.32	16.93	2677	800	8.46
		70%	47.14	7798	2.67	20.93	2865	987	7.90
		75%	47.07	8790	3.01	25.04	3038	1179	7.46
		80%	47.01	9815	3.36	29.61	3198	1392	7.05
		90%	46.86	11778	4.04	39.55	3493	1853	6.36
		100%	46.65	13940	4.79	51.94	3775	2423	5.75
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
