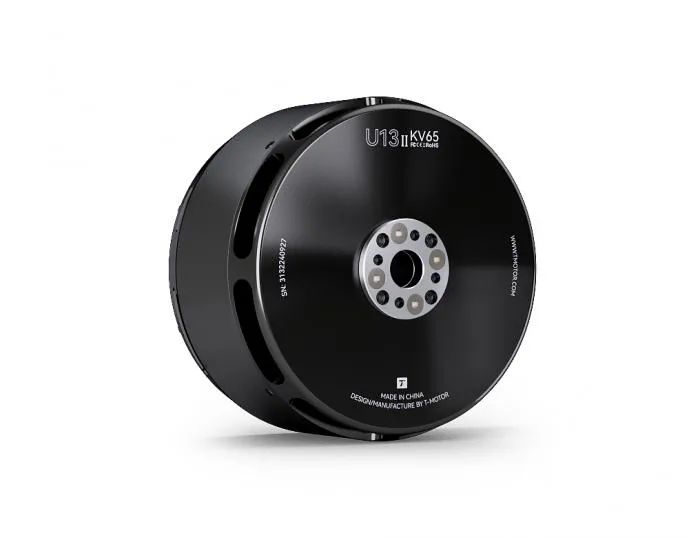

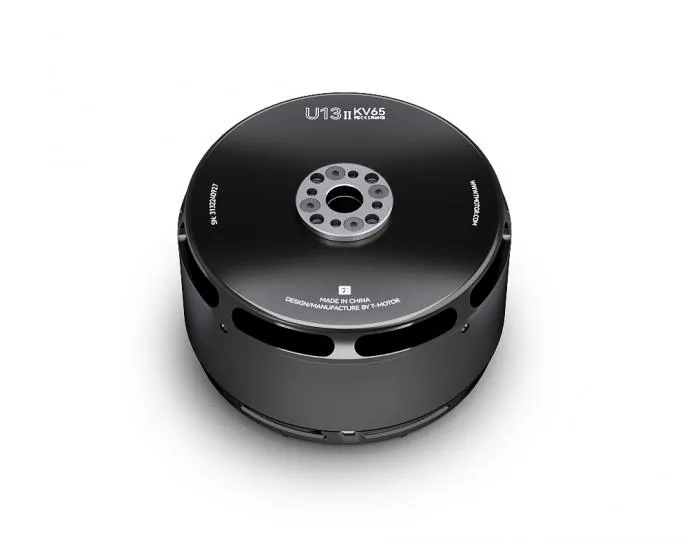

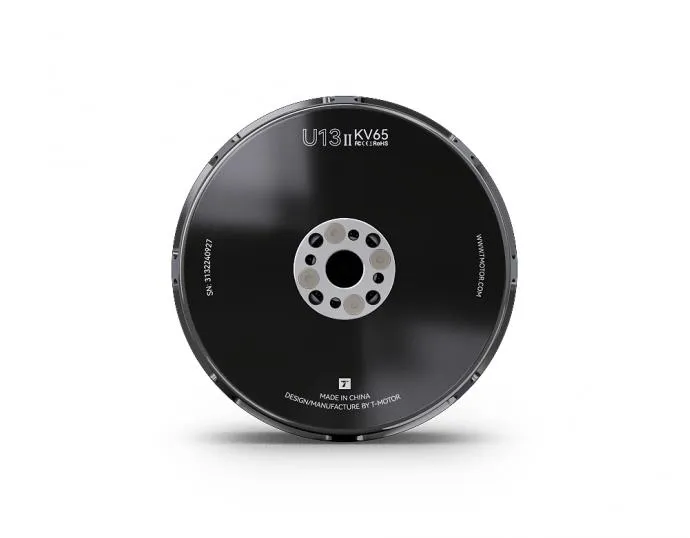

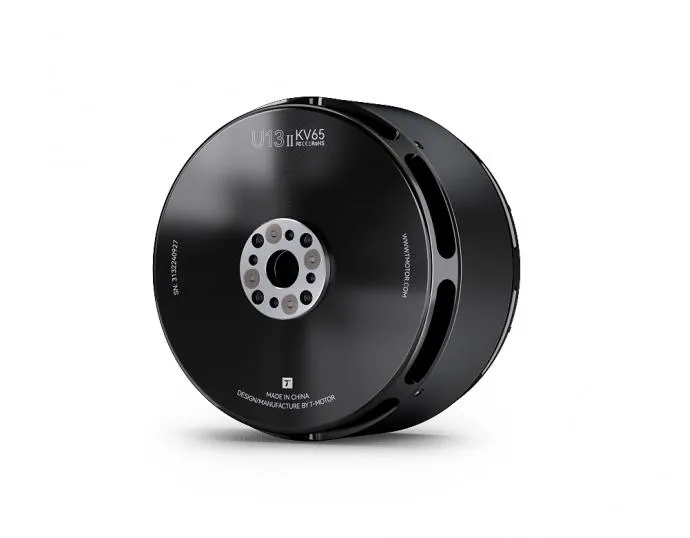

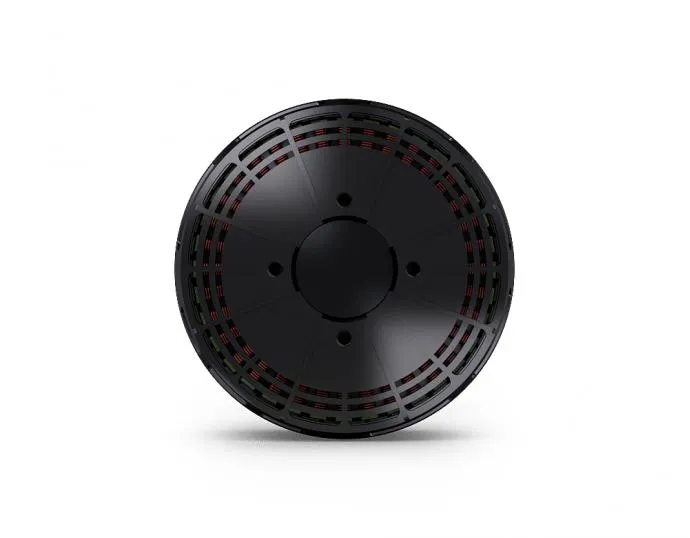

TMotor U13Ⅱ Power Type Multirotor UAV Motor (KV65 / KV130)

About T-MOTOR U13Ⅱ Power Type Multirotor UAV Motor KV65

T-Motor UAV Brushless Multirotor Motor U13II KV65 delivers up to 24.3 kg thrust and has a 1000-hour service life. Designed for heavy loads and industrial use, it performs well at high temperatures. The newly redesigned iron core increases coil space and reduces weight, boosting the aircraft's payload capacity.

U13II KV65 Highlights:

Max. thrust ：28.7kg
MTBF：About 1000hours
Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings
Industrial grade, dust proof, water proof.

Technical Drawing


Specification

Test Item	KV130	Weight (Incl. Cable)	990g
Motor Dimensions	Φ100*60mm	Internal Resistance	18mΩ
Lead	Enameled Wire 100mm	Configuration	36N42P
Shaft Diameter	15mm	Rated Voltage(Lipo)	10-14S
Idle Current(18V)	1.5A	Peak Current(180s)	118A
Max. Power	5659W

Test Item	KV65	Weight (Incl. Cable)	975g
Motor Dimensions	Φ100*60mm	Internal Resistance	73mΩ
Lead	Enameled Wire 100mm	Configuration	36N42P
Shaft Diameter	15mm	Rated Voltage(Lipo)	22-25S
Idle Current(18V)	1.7A	Peak Current(180s)	68A
Max. Power	6720W

Test Data

Type	Voltage (V)	Propeller	Throttle	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
U13Ⅱ KV130	48	T-MOTOR G32*11"CF	50%	7700	3.1	20.40	2612	979	7.86	132 (Ambient Temperature: 24℃)
			55%	10000	4	30.80	3000	1478	6.76
			60%	11500	4.7	38.40	3215	1843	6.24
			65%	13500	5.5	46.70	3428	2242	6.02
			75%	16700	6.9	65.40	3832	3139	5.32
			85%	19700	8.1	83.70	4164	4018	4.9
			100%	24300	10	117.90	4609	5659	4.29
Note: Motor temperature is motor surface temperature at 100% throttle running 5mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
U13 II KV65	99.51	G30*10.5	40%	7975	3.3	10.8	2679	1079	7.4	97℃
	99.47		45%	8784	3.7	12.5	2823	1243	7.1
	99.44		50%	9759	4.1	14.4	2964	1431	6.8
	99.39		55%	10896	4.4	16.3	3106	1622	6.7
	99.33		60%	11879	4.7	18.5	3235	1838	6.5
	99.28		65%	13078	5.0	21.3	3406	2110	6.2
	99.21		70%	14500	5.6	24.4	3571	2420	6.0
	99.11		75%	15971	6.2	28.3	3769	2809	5.7
	99.02		80%	17675	7.0	33.1	3964	3278	5.4
	98.79		90%	21522	8.5	44.1	4342	4355	4.9
	98.54		100%	24744	9.7	54.7	4654	5389	4.6
	99.44	G32*11	40%	8585	3.5	11.7	2485	1161	7.4	115℃
	99.40		45%	9671	3.9	13.8	2639	1374	7.0
	99.36		50%	10714	4.3	16.0	2777	1589	6.7
	99.29		55%	11871	4.7	18.7	2922	1854	6.4
	99.23		60%	13128	5.2	21.4	3055	2125	6.2
	99.15		65%	14798	5.9	25.3	3235	2512	5.9
	99.06		70%	16439	6.6	29.8	3414	2955	5.6
	98.93		75%	18380	7.4	34.9	3596	3450	5.3
	98.78		80%	20889	8.3	42.1	3803	4156	5.0
	98.53		90%	24982	9.9	54.7	4125	5392	4.6
	98.22		100%	28711	11.4	68.5	4397	6727	4.3
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
