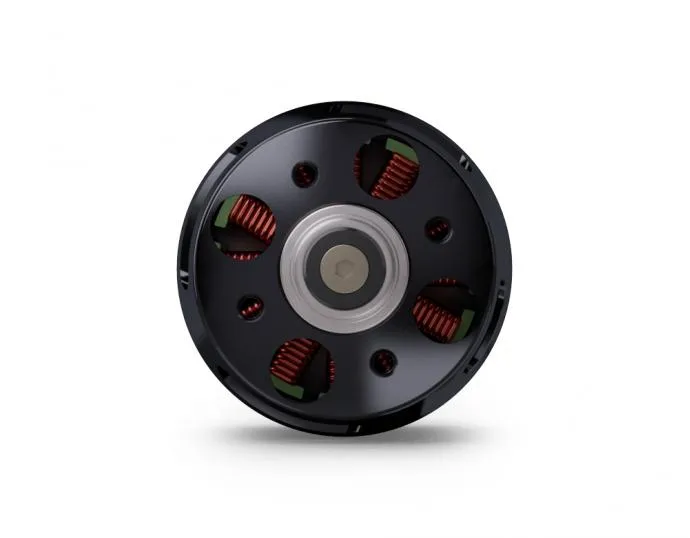

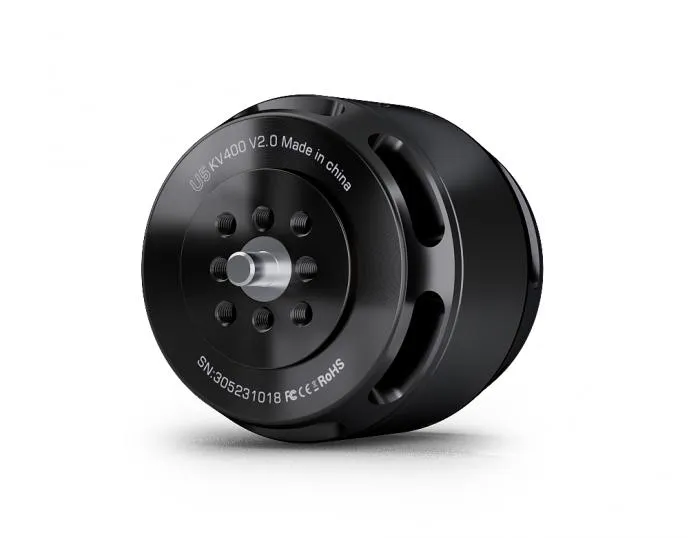

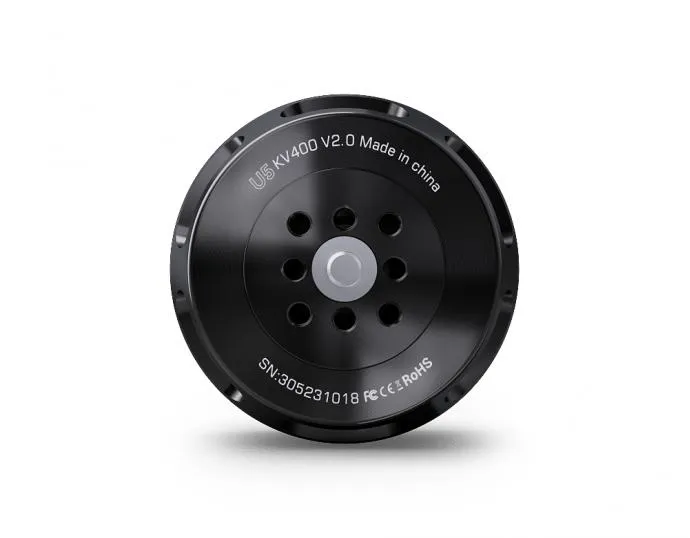

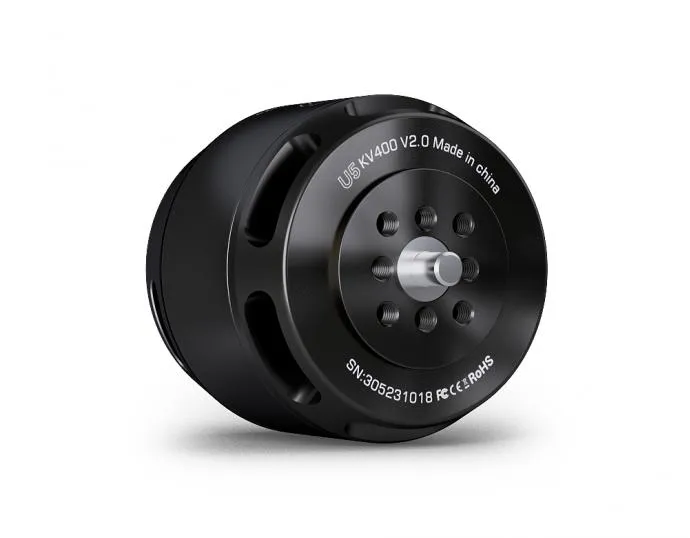

TMotor U5 Power U-Type High Efficiency UAV Motor (KV400)

About T-MOTOR U5 Power Type UAV Motor KV400

T-Motor U5 v2 Power series 400kv Brushless Motor - Recommended 6s and 14-16 inch props and Flame 60A ESC Water and dust resistant, designed for maximum reliability and long life. U-series motors are tested to military standards and offer smooth, quiet running with high efficiency.The U5 comes with a special design to ensure swift airflow. Motor cools 2.5 times faster than others. Six holes beveling upward sparkles motor with waterproof and sand-resistant features.Offers high-quality varnished wire. An imported Oxygen-free copper coil that can tolerate a temperature of 180 °C is employed to enhance short circuit resistance.

U5 Highlights:

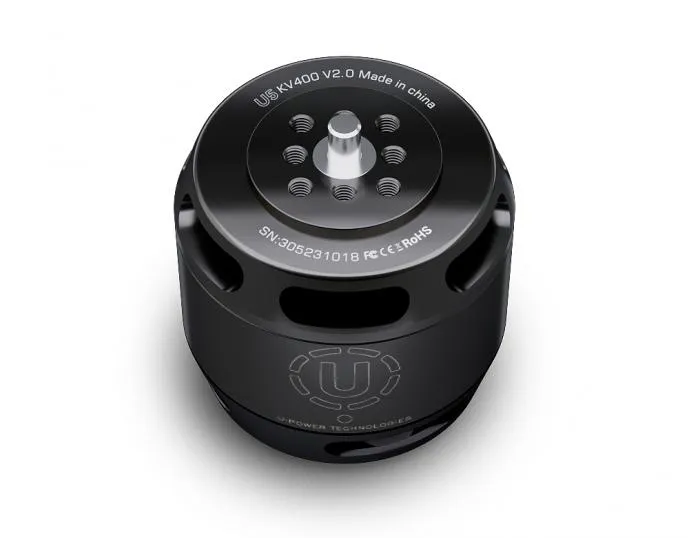

Unique Side Hole Design： ensures swift airflow. Motor cools 2.5 times faster than others. Six holes beveling upward sparkles motor with waterproof and sand-resistant features.
Abnormal Shaft： a special screw is used for stator and rotor installation, avoiding loosiness of circlip.
High-Quality Varnished Wired：imported, oxygen-free copper coil which can tolerate temperature of 180C is employed to enhance short circuit resistance.
High-Standard Silicon Steel Sheet Precision Winding：the precision winding ensures the tightness of coil and slot. It helps reduce the copper lose while improving the utilization. Advanced 0.2mm silicon steel sheet reduces heat and eddy, thus improving efficiency.
Larger Bearing – Lower Noise：Adoption of imported German bearing prolongs the service life to over 1600 hours under trouble-free operation. German bearing enables motor run more smoothly and longer with lower noise.
Max. thrust ：2.85kg
MTBF：About 1600hours
Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings

Technical Drawing

Specification

InternalResistance	116mQ	Confguration	12N14P
Shaft Diameter	5mm	Motor Dimensions	Φ42.5×37.5mm
AWG	16#	Cable Length	600mm
WeightIncluding Cables	195g	Weight Excluding Cables	156g
No.ofCells(Lipo)	3-8S	ldle Current@10v	0.3A
Max Continuous Power180S	850W	Max Continuous Current180S	30A

Test Data

Item No	Voltage (V)	Prop	Throttle	Current (A)	Power (W)	Thrust (G)	RPM	Eficiency (G/W)	Operating Temperature (°C)
Item No	Voltage (V)	Prop	Throttle	Current (A)	Power (W)	Thrust (G)	RPM	Eficiency (G/W)	Operating Temperature (°C)
U5 KV400	22.2	T-MOTOR 14*4.8CF	50%	3.4	75.48	800	4300	10.6	45
			65%	6.3	139.86	1200	5400	8.58
			75%	8.5	188.7	1500	5900	7.95
			85%	11.4	253.08	1820	6500	7.19
			100%	13.7	304.14	2030	6950	6.67
		T-MOTOR 15*5CF	50%	4.3	95.46	990	4200	10.37	50
			65%	7.9	175.38	1490	5200	8.5
			75%	11.6	257.52	1900	5700	7.38
			85%	14.5	321.9	2220	6200	6.9
			100%	17.2	381.84	2480	6500	6.49
		T-MOTOR 16*5.4CF	50%	5.2	115.44	1200	4050	10.4	59
			65%	9.4	208.68	1750	4850	8.39
			75%	13	288.6	2120	5400	7.35
			85%	16.9	375.18	2650	5850	7.06
			100%	20	444	2850	6250	6.42
Notes:The test condition of temperature is motor surfacetemperature at 100%throttle while the motor run 10min.
