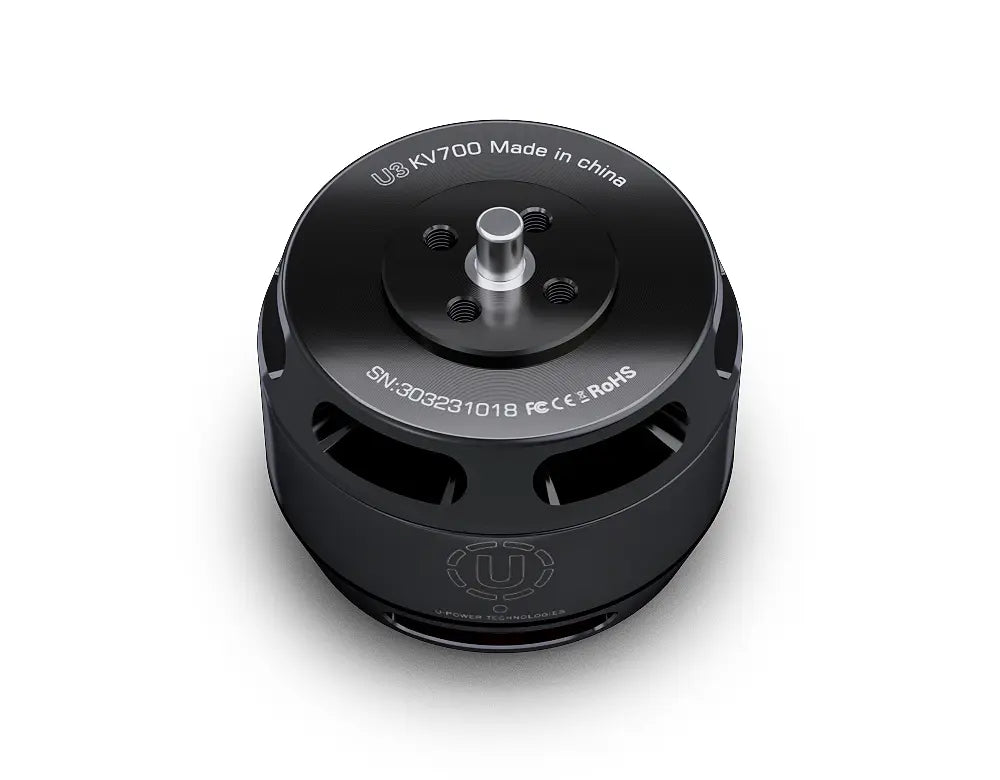

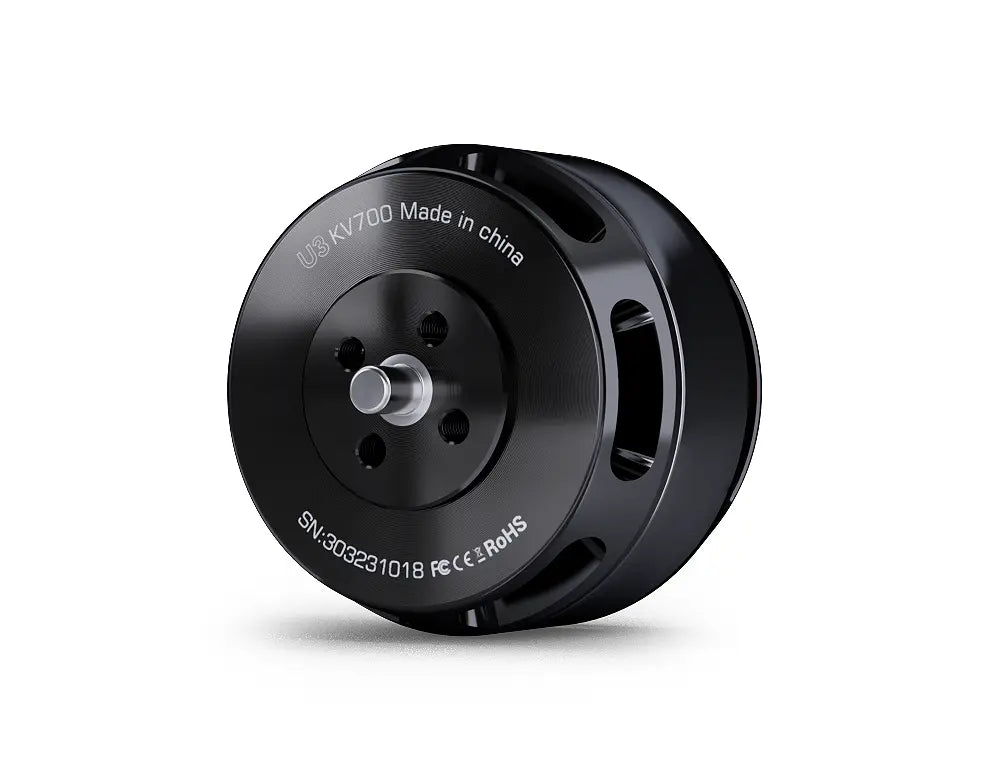

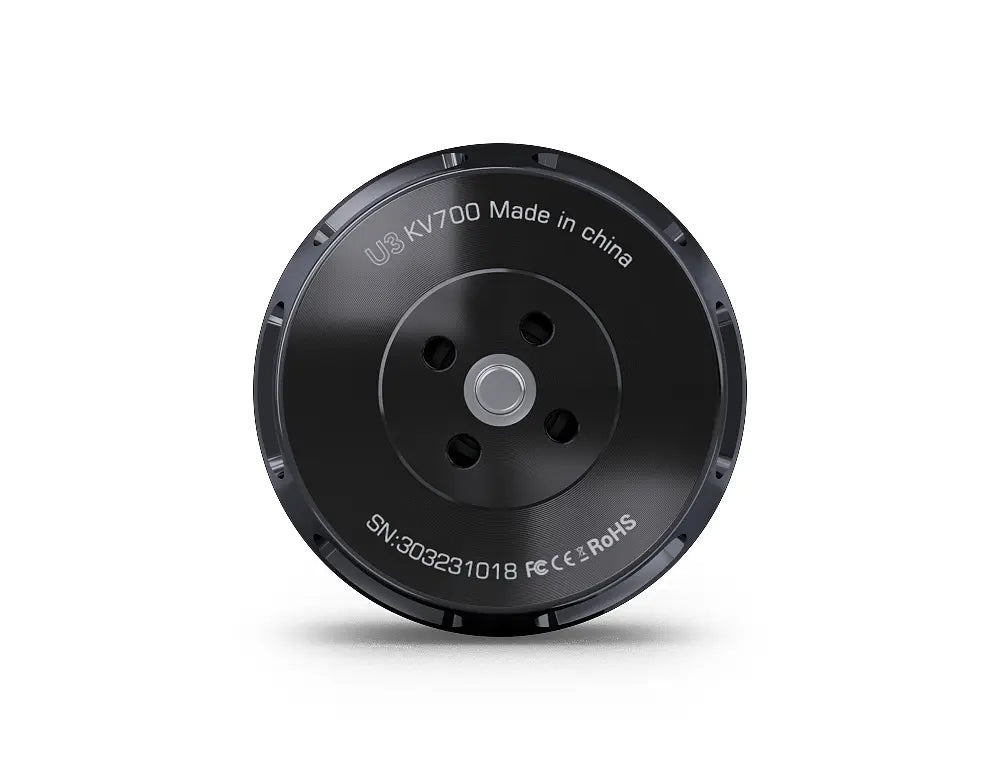

TMotor U3 Power Type High Efficiency UAV Motor (KV700)

About T-MOTOR U3 Power Type UAV Motor KV700

U3 KV700 motors (from U-series) are aimed for high end UAVs requiring big thrust.
This kind of UAVs are usually for professional aerial photography, filming, delivery service and agriculture applications.Handmade high-temperature enameled wire has excellent fire protection, industrial grade waterproofing, anti-aging and other properties, which greatly extends the service life of the motor. The precision winding ensures the tightness of coil and slot.It helps reduce the copperloss while improve the utilization. Adoption of imported high-quality bearing ，enables motor run more smoothly and longer with lower noise.U3 Power series 700kv - recommended 4s esc and 12 or 13 inch props Water and dust resistant, designed for maximum reliability and long life.

U3 Highlights:

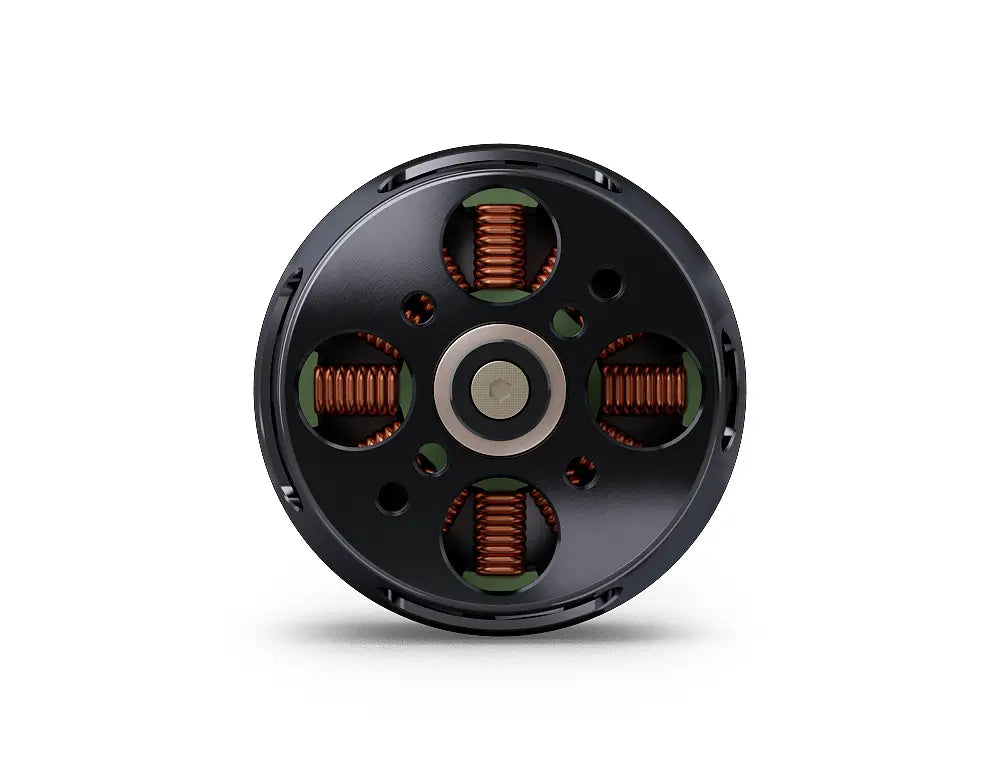

Unique Side Hole Design： ensures swift airflow. Motor cools 2.5 times faster than others. Six holes beveling upward sparkles motor with waterproof and sand-resistant features.
Abnormal Shaft： a special screw is used for stator and rotor installation, avoiding loosiness of circlip.
High-Quality Varnished Wired：imported, oxygen-free copper coil which can tolerate temperature of 180C is employed to enhance short circuit resistance.
High-Standard Silicon Steel Sheet Precision Winding：the precision winding ensures the tightness of coil and slot. It helps reduce the copper lose while improving the utilization. Advanced 0.2mm silicon steel sheet reduces heat and eddy, thus improving efficiency.
Larger Bearing – Lower Noise：Adoption of imported German bearing prolongs the service life to over 1600 hours under trouble-free operation. German bearing enables motor run more smoothly and longer with lower noise.
Max. thrust: 1.8kg
MTBF: about 1600hours
Features: Industrial Grade, Waterproof, dustproof, low noise, large bearings

Technical Drawing

Specification

Internal Resistance	50mΩ	Configuration	12N14P
Shaft Diameter	4mm	Motor Dimensions	Φ41.8×30.75mm
AWG	18#	Cable Length	600mm
Weight Including Cables	128g	Weight Excluding Cables	97g
No. of Cells (Lipo)	3-4S	Idle Current@10v	0.5A
Max Power (180S)	500W	Max Continuous Current 180S	25A

Test Data

Item No.	Voltage (V)	Prop	Throttle	Current (A)	Power (W)	Thrust (G)	RPM	Efficiency (G/W)	Operating Temperature (℃)
U3 KV700	11.1	T-MOTOR 12*4CF	50%	2.5	27.75	350	4000	12.61	40
			65%	4.8	53.28	550	4900	10.32
			75%	6.6	73.26	700	5500	9.56
			85%	9.1	101.01	870	6300	8.61
			100%	11.1	123.21	1000	6600	8.12
		T-MOTOR 13*4.4CF	50%	2.9	32.19	400	3800	12.43	42
			65%	5.6	62.16	650	4900	10.46
			75%	7.9	87.69	830	5300	9.47
			85%	10.5	116.55	1000	6000	8.58
			100%	12.6	139.86	1100	6400	7.87
		T-MOTOR 14*4.8CF	50%	4.1	45.51	550	3500	12.09	43
			65%	7.7	85.47	890	4500	10.41
			75%	10.7	118.77	1060	4900	8.92
			85%	14.5	160.95	1300	5500	8.08
			100%	17.3	192.03	1460	5800	7.60
	14.8	T-MOTOR 11*3.7CF	50%	3.2	47.36	460	5300	9.71	43
			65%	6	88.80	710	6500	8.00
			75%	8.2	121.36	870	7500	7.17
			85%	11	162.80	1080	8200	6.63
			100%	13	192.40	1230	8700	6.39
		T-MOTOR 12*4CF	50%	3.8	56.24	580	5000	10.31	43
			65%	7.4	109.52	880	6300	8.04
			75%	10.3	152.44	1100	7300	7.22
			85%	14	207.20	1360	7700	6.56
			100%	16.8	248.64	1600	8300	6.44
		T-MOTOR 13*4.4CF	50%	4.7	69.56	730	4900	10.49	47
			65%	9	133.20	1120	6100	8.41
			75%	12.3	182.04	1400	6800	7.69
			85%	16	236.80	1600	7400	6.76
			100%	19.4	287.12	1800	7850	6.27
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

Packing List:

1x T-MOTOR U3 Motor
1x Hardware pack
