Description
Specifications

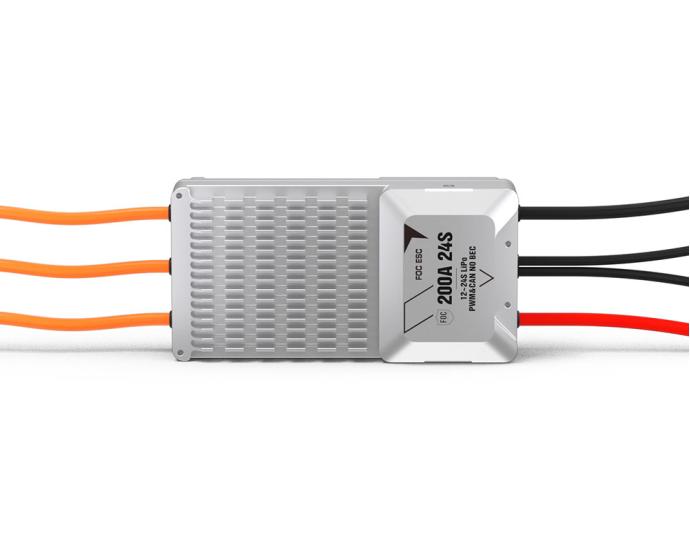

| Model No. | V200A 24S |
|---|---|
| Input Cable | Silicone Wire-Red/Black-10AWG-1200mm |
| Size | 146*74*39.5mm (L*W*H) |
| Signal Cable | Shielded Cables-Black-OD4.2-5C-500mm-JP-3P*2-Black Blank White-Green Yellow Gray |
| Weight (Incl. Cables) | 748g |
| Encoder Cables | Shielded Cables-Black-24AWG-5C-460mm-M6 Aviation Connector |
| Output Cable | Silicone Wire-Orange-10AWG-250mm |
| Protocol | PWM/CAN |
| Support Voltage | 12~24S (Max 105V) |
| BEC | NO |
| Continuous Current | 100A |
| Throttle Pos. Range | 1040~1940 |
| Peak Current (<10s) | 200A |
| Throttle Refresh Frequency | 50~500Hz |
| Standby Consumption | ≤50mA@100V |
| ThrottleResponse Speed | 300ms |
