Description
Specifications

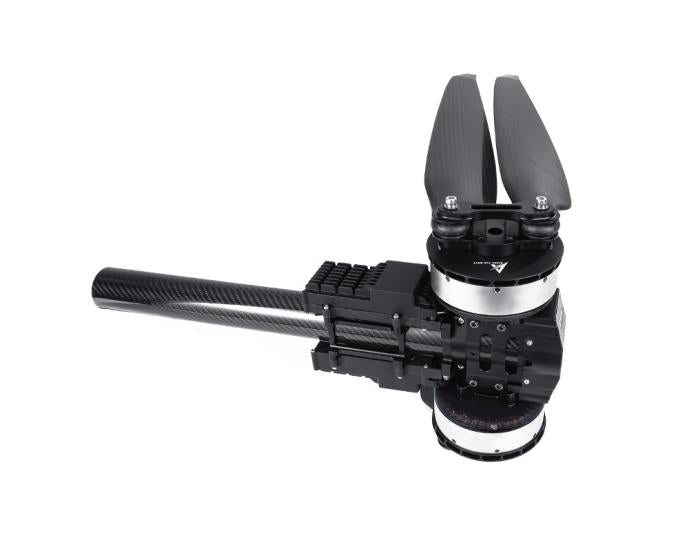

| Model No. | X-A12XL KV77 |
|---|---|
| Tube size | 50mm |
| Setup | X-A12XL-14S (Motor)+14S FOC 200A (ESC)+PFZ4918P (Prop) |
| Wire material,wire gauge, color | Power wires: 10#AWG red & blackSignal wires: 5P Teflon |
| Recommended battery | 12~14S (LiPo) |
| Wire length | 1700±5mm |
| Rated thrust | 30~35kg |
| Weight | 5170±2%g (incl. Wires+prop) |
| Efficiency at rated thrust | 7.4g/W (32kg) |
| IP | IPX6 |
| Max. thrust | 69.7kg |
| Recommended ambient temperature | -20～55℃ |
