Description
Specifications
| Model No. | X-A12XL KV48 |
|---|---|
| Tube size | 50mm |

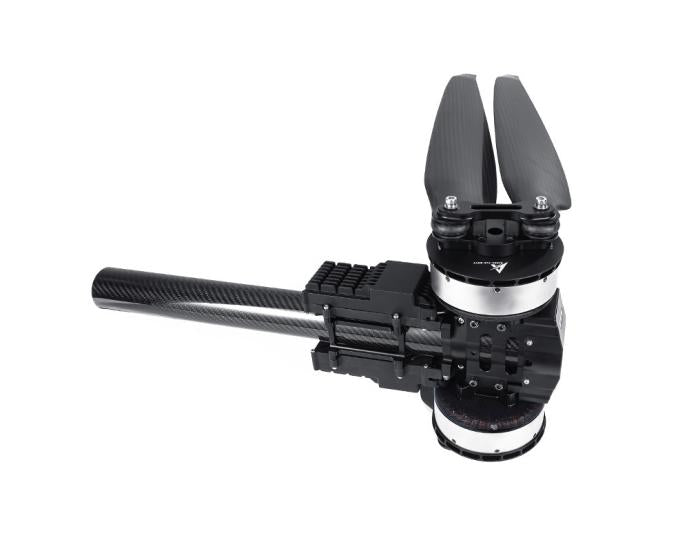

| Setup | X-A12XL-24S (Motor)+24S FOC 120A (ESC)+PFZ4918P (Prop) |
| Wire material,wire gauge, color | Power wires: 10#AWG red & blackSignal wires: 5P Teflon |
| Recommended battery | 20~24S (LiPo) |
| Wire length | 1700±5mm |
| Rated thrust | 30~35kg |
| Weight | 5170±2%g (incl. Wires+prop) |
| Efficiency at rated thrust | 7.5g/W (33kg) |
| IP | IPX6 |
| Max. thrust | 73.3kg |
| Recommended ambient temperature | -20～55℃ |
