Herelink HD Video Transmission System v1.1
New updated version
Herelink HD Video Transmission System v1.1
New updated version
40% increased screen brightness (1000nits)
Passthrough ethernet link with drone
We remind you that the Ethernet cable for the Air Unit is not included, please add it to your order clicking here
https://www.heliengadin.com/products/herelink-airunit-v1-1-eth-cable
Herelink updated points:
1. Screen brightness of controller is improved up from 600nit to 1,000nit.
2. Ethernet port added on the Herelink air unit
3. SD card slot added on the Herelink air unit
What's inside:

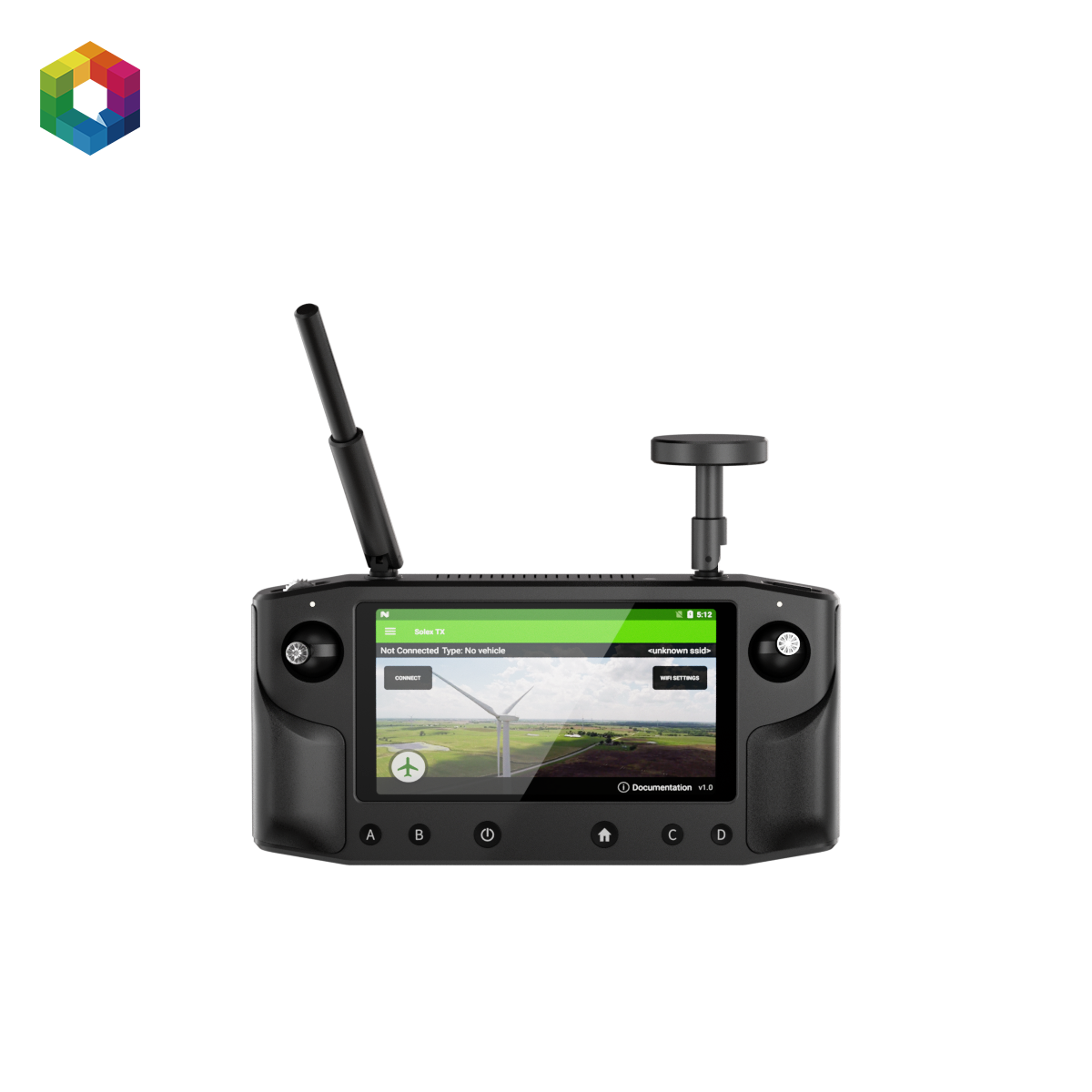

- 1 x Herelink Controller Unit
- 2 x Herelink Controller Joystick
- 1 x Herelink Omni-directional Antenna
- 1 x Herelink Directional Antenna
- 1 x Herelink Set up tips card
Technical specifications
Hardware information:
- Processor: SoC – Pinecone S1
- 4 large core, Cortex A53, 2.2GHz
- 4 small core, Cortex A53, 1.4GHz
- GPU: 4 core Mali
- T860 SDR: A7 + DSP
- Storage:
- Sky: LPDDR3: 1GB
- Ground: LPDDR3: 2GB
- Sky / Ground: EMMC: 4GB
- Transmission distance: FCC 20km CE / SRRC 12km
- Image transmission delay: ≤ 110ms
- Image quality: 720p@30fps 1080p@30/60fps
- Frequency Band: 2.4GHz ISM
- Receive sensitivity: -99dBm@20MHz BW
- Interference recovery: < 1s
Controller:
- Plastic ergonomic housing
- Screen: 5.46 inch, 1080P, 16 million colors, capacitive touch screen
- Audio: built-in speaker and microphone
- Remote control: 2 rocker dials, 1 scroll wheel, 6 bottom buttons, 1 top button
- Communication: BT / WIFI / GPS
- 2 tri-color indicator light
- Interface: MicroUSB, microSD (max. 64GB)
- Detachable antennas: 1x omnidirectional (2dBi), 1x directional (5dBi)
- Built-in WiFi and GPS antennas
- Optional external GPS antenna interface
- Power: 4950 mAh LiPo battery
- Charging: microUSB port, 5v 2A
- Power consumption: < 4W (medium screen brightness, WiFi off, GPS off)
- Size: 217 × 106.5 × 31mm (antenna excluded)
