TMotor MN501-S IP45 Multirotor Fixed Wing UAV Motor (KV240 / KV300 / K

About T-MOTOR Navigator MN501-S Multirotor Fixed Wing UAV Motor KV240

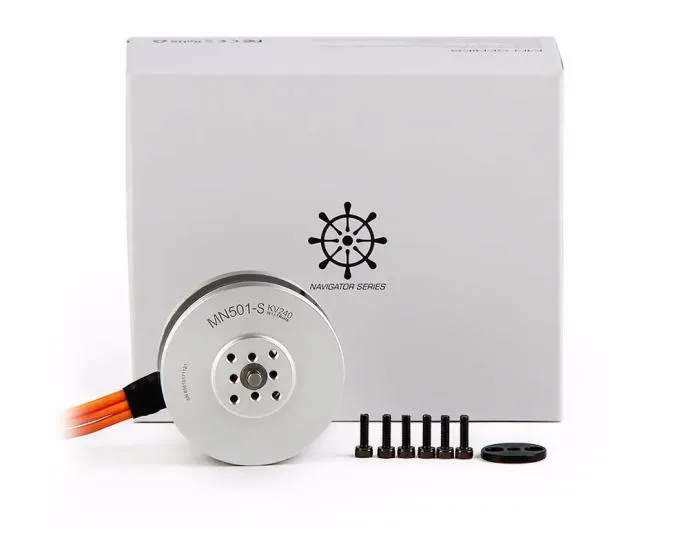

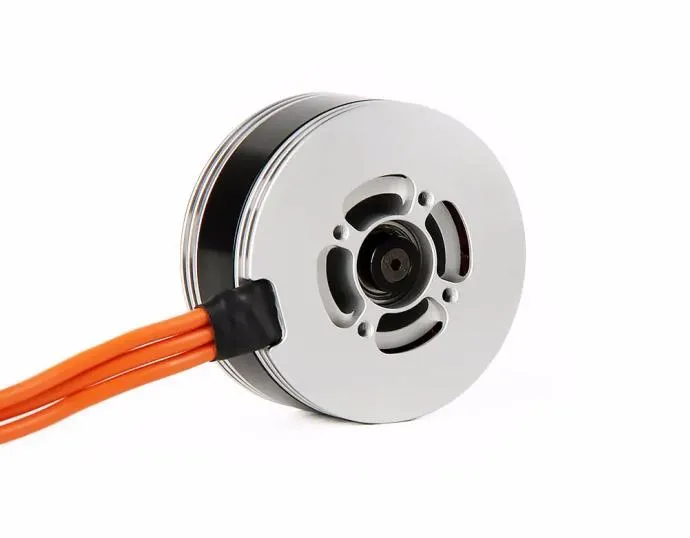

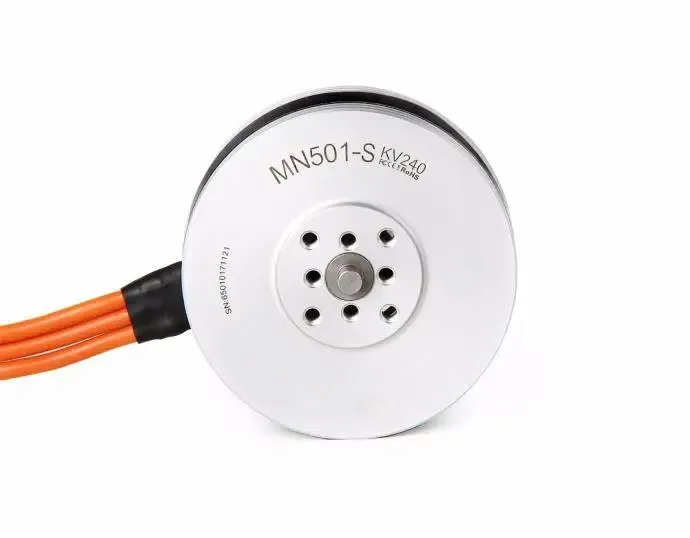

T-Motor MN501-S KV240 "Navigator" motor delivers up to 5.2kg thrust, perfect for multi-rotors, VTOL, and fixed-wing UAVs. Its bell-shaped canopy ensures dust protection and efficient cooling.

Built with anti-corrosion materials, it offers long-lasting durability. With a 1000-hour MTBF and recommended T-Motor P20*6 prop, it provides reliable performance for aerial photography and general UAV use. Regular lubrication is advised for maintenance.

Navigator MN501-S Highlights:

Max thrust: 5.2kg
MTBF: About 1000hours
Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion

Technical Drawing

Specification

Motor Size	Φ55.6*33.9mm	Copper Wire	220℃ high temperature resistance: Level C
Stator	Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：6mm，OUT：4mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 696ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	180℃ high temperature resistance	IP	IP45
Lead Cable	16AWG*150mm

KV	240	Rated Voltage ( Lipo )	6-12S
Idle Current(18V)	0.9A	ESC Recommendation	AIR 40A
Peak Current(180s)	25A	Propeller Recommendation	14-15 / 20-22"
Max.Power(180s)	1200W	Motor Weight (indl. Cable)	170g
Internal Resistance	85mΩ	Package Weight	350g

KV	300	Rated Voltage ( Lipo )	6-8S
Idle Current(15V)	1.1A	ESC Recommendation	AIR 40A
Peak Current(180s)	40A	Propeller Recommendation	20-22"
Max.Power(180s)	1000W	Motor Weight (indl. Cable)	170g
Internal Resistance	63mΩ	Package Weight	350g

KV	360	Rated Voltage ( Lipo )	6S
Idle Current(15V)	1.4A	ESC Recommendation	AIR 40A
Peak Current(180s)	40A	Propeller Recommendation	17-18"
Max.Power(180s)	1000W	Motor Weight (indl. Cable)	175g
Internal Resistance	45mΩ	Package Weight	350g

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g/W)	Operating Temperature (℃)
MN501S KV240	T-MOTOR P14*4.8	40%	48.50	975	0.17	2.90	5011	141	6.93	57.5 (Ambient Temperature: 9.2℃)
		42%	48.49	1026	0.18	3.12	5182	151	6.79
		44%	48.50	1084	0.19	3.36	5337	163	6.65
		46%	48.49	1142	0.20	3.62	5508	176	6.50
		48%	48.49	1215	0.21	3.90	5667	189	6.42
		50%	48.53	1282	0.23	4.20	5834	204	6.30
		52%	48.53	1386	0.25	4.59	6035	223	6.22
		54%	48.53	1487	0.26	4.97	6213	241	6.16
		56%	48.52	1567	0.27	5.33	6383	259	6.06
		58%	48.53	1646	0.27	5.65	6413	274	6.00
		60%	48.52	1730	0.30	5.99	6655	290	5.96
		62%	48.52	1809	0.31	6.35	6829	308	5.87
		64%	48.52	1905	0.32	6.79	6993	329	5.78
		66%	48.52	1980	0.34	7.25	7161	352	5.63
		68%	48.56	2103	0.35	7.78	7340	378	5.57
		70%	48.55	2204	0.37	8.35	7534	405	5.44
		75%	48.55	2481	0.42	9.72	7947	472	5.26
		80%	48.54	2787	0.47	11.35	8376	551	5.06
		90%	48.53	3314	0.57	14.74	9161	715	4.63
		100%	48.52	3891	0.68	18.52	9870	899	4.33
MN501S KV240	T-MOTOR P15*5	40%	48.59	1166	0.23	3.57	4887	174	6.72	78 (Ambient Temperature: 9.2℃)
		42%	48.58	1252	0.24	3.89	5067	189	6.64
		44%	48.58	1319	0.26	4.17	5198	203	6.51
		46%	48.58	1412	0.27	4.53	5365	220	6.42
		48%	48.58	1506	0.29	4.90	5536	238	6.32
		50%	48.58	1605	0.31	5.30	5684	258	6.23
		52%	48.58	1710	0.34	5.69	5855	277	6.18
		54%	48.57	1842	0.32	6.26	6057	304	6.05
		56%	48.57	1949	0.34	6.78	6242	329	5.92
		58%	48.57	2094	0.36	7.41	6411	360	5.81
		60%	48.57	2176	0.36	7.87	6513	382	5.70
		62%	48.57	2199	0.38	8.02	6632	389	5.65
		64%	48.57	2295	0.40	8.52	6804	414	5.55
		66%	48.56	2421	0.42	9.11	6960	442	5.47
		68%	48.56	2557	0.44	9.79	7145	475	5.38
		70%	48.56	2693	0.47	10.54	7317	512	5.26
		75%	48.56	3000	0.53	12.32	7729	598	5.02
		80%	48.55	3294	0.57	14.05	8076	682	4.83
		90%	48.54	3957	0.70	18.31	8840	889	4.45
		100%	48.52	4660	0.81	23.11	9532	1121	4.16
MN501S KV240	T-MOTOR P22*6.6	40%	24.35	916	0.23	2.87	1914	70	13.09	68 (Ambient Temperature: 9.2℃)
		42%	24.35	999	0.24	3.21	2002	78	12.78
		44%	24.35	1088	0.26	3.59	2093	87	12.43
		46%	24.35	1166	0.28	3.92	2176	96	12.20
		48%	24.35	1246	0.30	4.31	2268	105	11.87
		50%	24.35	1339	0.33	4.75	2361	116	11.59
		52%	24.35	1453	0.35	5.28	2485	128	11.30
		54%	24.35	1566	0.38	5.86	2595	143	10.97
		56%	24.34	1684	0.41	6.46	2695	157	10.71
		58%	24.34	1796	0.43	7.07	2797	172	10.44
		60%	24.34	1900	0.46	7.69	2892	187	10.15
		62%	24.33	2020	0.49	8.35	2979	203	9.94
		64%	24.33	2147	0.52	9.16	3078	223	9.63
		66%	24.33	2273	0.55	9.82	3185	239	9.51
		68%	24.33	2394	0.57	10.60	3271	258	9.28
		70%	24.32	2509	0.60	11.32	3358	275	9.11
		75%	24.32	2823	0.68	13.44	3566	327	8.63
		80%	24.31	3038	0.75	15.63	3785	380	7.99
		90%	24.29	3454	0.90	20.62	4173	501	6.89
		100%	24.27	4187	1.02	25.21	4478	612	6.84
MN501S KV300	T-MOTOR P20*6	40%	24.28	889	0.12	3.08	2594	75	11.89	86.5 (Ambient Temperature: 9.2℃)
		42%	24.32	968	0.14	3.45	2701	84	11.53
		44%	24.32	1058	0.16	3.87	2815	94	11.23
		46%	24.32	1172	0.18	4.39	2949	107	10.98
		48%	24.31	1271	0.20	4.89	3070	119	10.69
		50%	24.31	1382	0.22	5.43	3186	132	10.48
		52%	24.32	1489	0.25	6.06	3310	147	10.11
		54%	24.31	1592	0.27	6.71	3438	163	9.76
		56%	24.31	1712	0.30	7.35	3543	179	9.59
		58%	24.31	1829	0.32	8.01	3646	195	9.39
		60%	24.30	1944	0.34	8.68	3742	211	9.21
		62%	24.30	2078	0.37	9.37	3736	228	9.13
		64%	24.30	2163	0.40	10.22	3960	248	8.72
		66%	24.30	2310	0.42	10.99	4058	267	8.65
		68%	24.29	2424	0.45	11.73	4151	285	8.51
		70%	24.29	2535	0.47	12.62	4233	306	8.27
		75%	24.29	2852	0.53	14.75	4517	358	7.96
		80%	24.28	3068	0.60	17.13	4725	416	7.38
		90%	24.26	3710	0.73	22.59	5275	548	6.77
		100%	24.24	4284	0.85	27.75	5603	673	6.37
MN501S KV300	T-MOTOR P22*6.6	40%	24.34	1204	0.22	4.25	2333	103	11.64	HOT (Ambient Temperature: 9.2℃)
		42%	24.34	1305	0.24	4.72	2422	115	11.36
		44%	24.33	1421	0.27	5.28	2523	129	11.05
		46%	24.33	1540	0.30	5.90	2627	144	10.73
		48%	24.33	1666	0.33	6.62	2754	161	10.34
		50%	24.33	1824	0.36	7.40	2859	180	10.14
		52%	24.33	1980	0.40	8.23	2966	200	9.88
		54%	24.32	2139	0.43	9.11	3276	222	9.65
		56%	24.32	2266	0.46	9.94	3371	242	9.37
		58%	24.32	2381	0.50	10.87	3463	264	9.00
		60%	24.31	2530	0.54	11.83	3544	288	8.80
		62%	24.31	2645	0.56	12.79	3639	311	8.51
		64%	24.31	2803	0.60	13.98	3751	340	8.25
		66%	24.31	2941	0.64	15.08	3835	367	8.02
		68%	24.30	3008	0.67	16.11	3920	392	7.68
		70%	24.30	3096	0.71	17.28	4090	420	7.38
		75%	24.33	3507	0.80	20.38	4200	496	7.07
		80%	24.32	4027	0.89	23.68	4478	576	6.99
		90%	24.29	4655	1.06	31.11	4733	756	6.16
		100%	24.27	5277	1.20	37.74	5017	916	5.76
MN501S KV360	T-MOTOR P17*5.8	40%	24.27	855	0.17	4.08	3190	99	8.63	57.5 (Ambient Temperature: 9.2℃)
		42%	24.27	938	0.19	4.54	3333	110	8.51
		44%	24.27	1029	0.21	5.02	3471	122	8.44
		46%	24.26	1103	0.23	5.54	3620	134	8.21
		48%	24.27	1185	0.25	6.10	3748	148	8.01
		50%	24.27	1256	0.27	6.66	3882	162	7.77
		52%	24.30	1346	0.30	7.32	4017	178	7.56
		54%	24.29	1464	0.32	8.11	4184	197	7.43
		56%	24.29	1555	0.34	8.74	4314	212	7.32
		58%	24.29	1664	0.32	9.48	4441	230	7.23
		60%	24.29	1758	0.34	10.15	4558	247	7.13
		62%	24.29	1853	0.35	10.91	4670	265	6.99
		64%	24.28	1959	0.37	11.71	4777	284	6.89
		66%	24.29	2040	0.39	12.48	4895	303	6.73
		68%	24.28	2161	0.41	13.49	5041	327	6.60
		70%	24.28	2245	0.43	14.34	5144	348	6.45
		75%	24.27	2486	0.47	16.53	5396	401	6.19
		80%	24.18	2777	0.53	19.42	5703	470	5.91
		90%	24.20	3333	0.64	25.46	6266	616	5.41
		100%	24.18	3837	0.74	31.46	6732	761	5.05
MN501S KV360	T-MOTOR P18*6.1	40%	23.94	917	0.06	3.93	2927	94	9.75	86.2 (Ambient Temperature: 9.2℃)
		42%	23.93	989	0.07	4.35	3040	104	9.51
		44%	23.93	1080	0.09	4.82	3153	115	9.36
		46%	23.93	1160	0.11	5.32	3261	127	9.12
		48%	23.94	1310	0.14	6.14	3476	147	8.92
		50%	23.94	1450	0.17	7.09	3658	170	8.54
		52%	23.94	1540	0.19	7.76	3786	186	8.29
		54%	23.94	1657	0.21	8.48	3914	203	8.16
		56%	23.94	1708	0.24	9.31	4043	223	7.66
		58%	23.94	1881	0.28	10.36	4178	248	7.58
		60%	23.94	2003	0.30	11.26	4321	270	7.43
		62%	23.94	2138	0.32	12.10	4422	290	7.38
		64%	23.95	2269	0.35	13.13	4540	314	7.22
		66%	23.98	2400	0.38	14.24	4661	341	7.03
		68%	23.98	2519	0.41	15.29	4774	367	6.87
		70%	23.98	2671	0.44	16.46	4874	395	6.77
		75%	23.99	2974	0.51	19.34	5153	464	6.41
		80%	23.99	3276	0.58	22.39	5486	537	6.10
		90%	24.00	3959	0.73	29.83	5908	716	5.53
		100%	24.01	4644	0.90	38.43	6393	923	5.03
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
