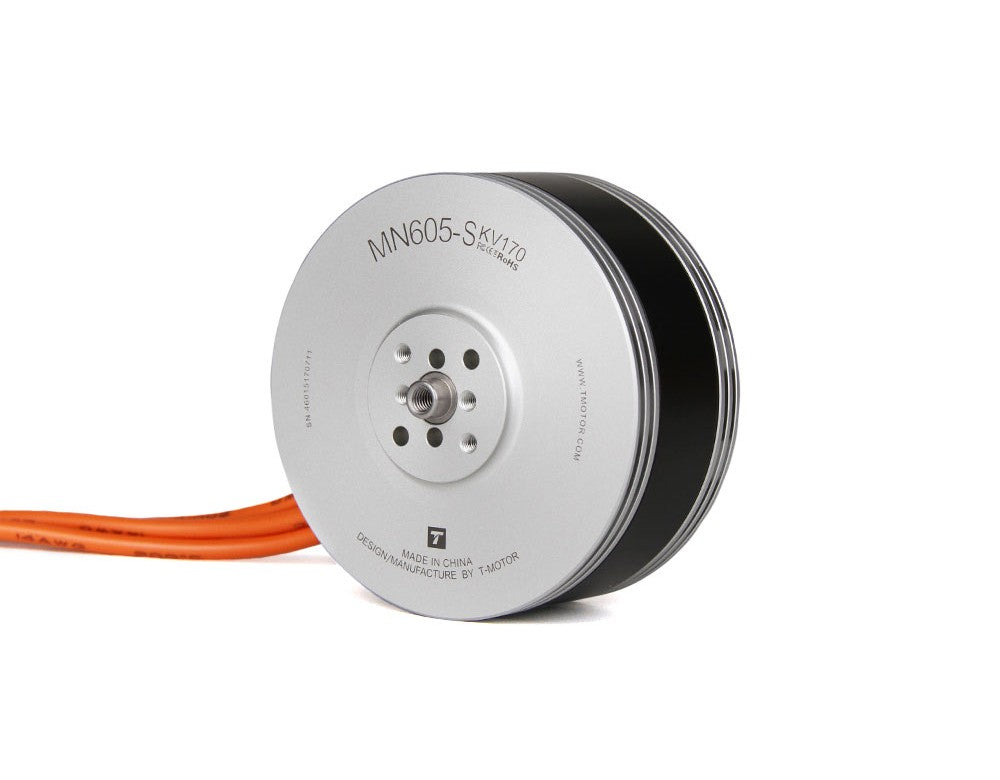

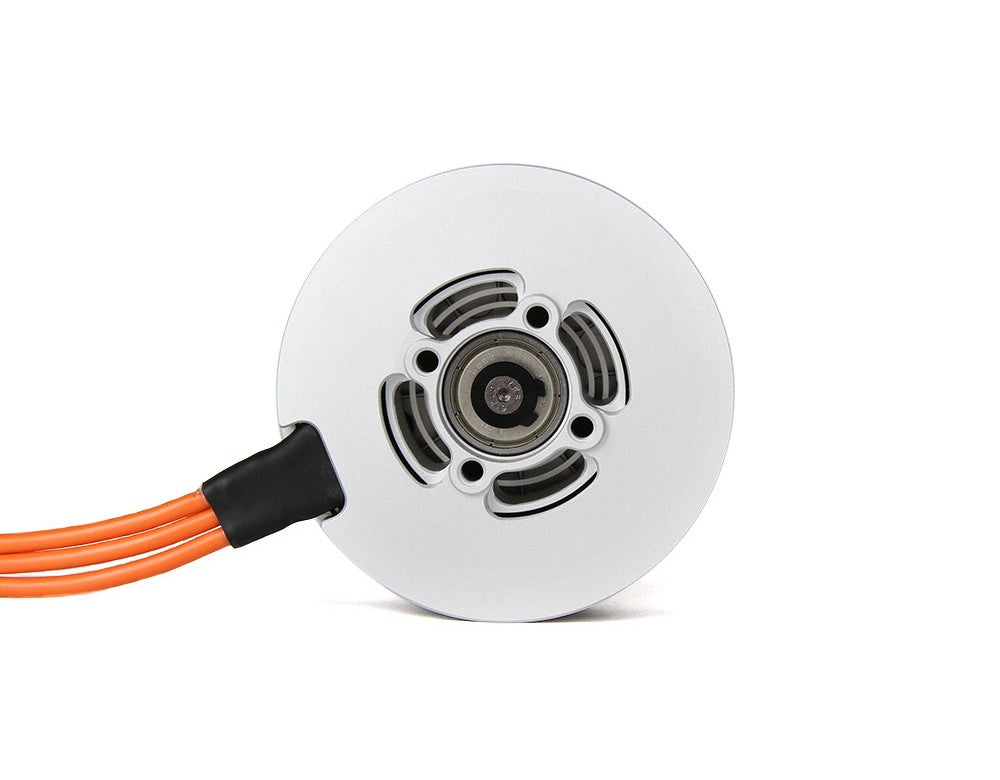

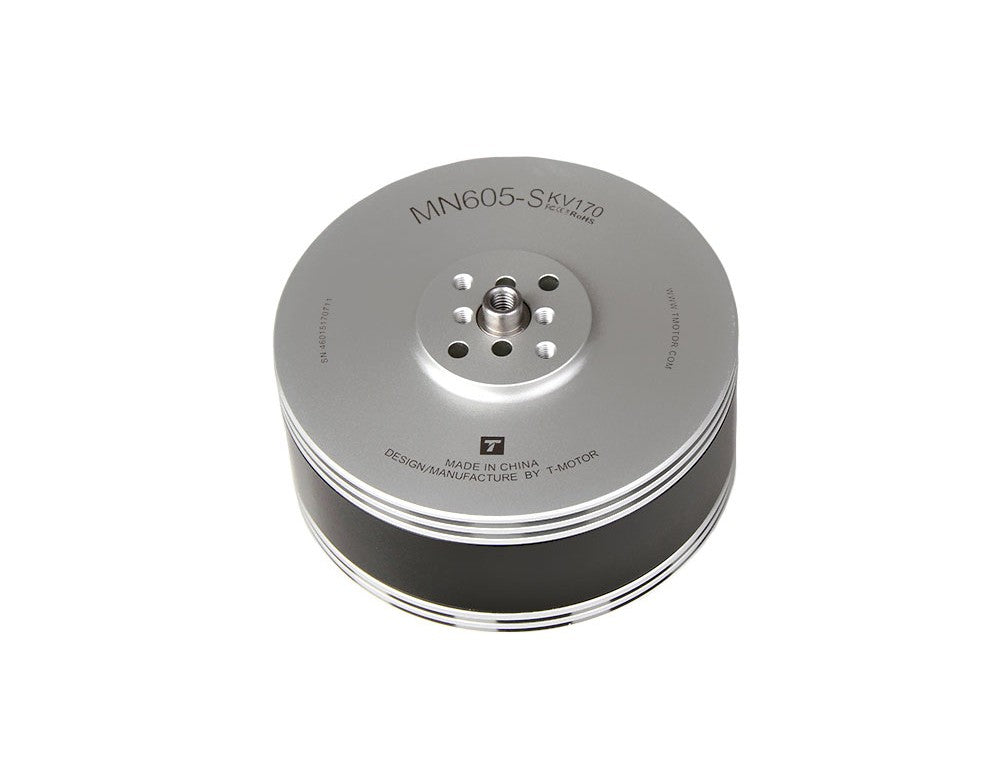

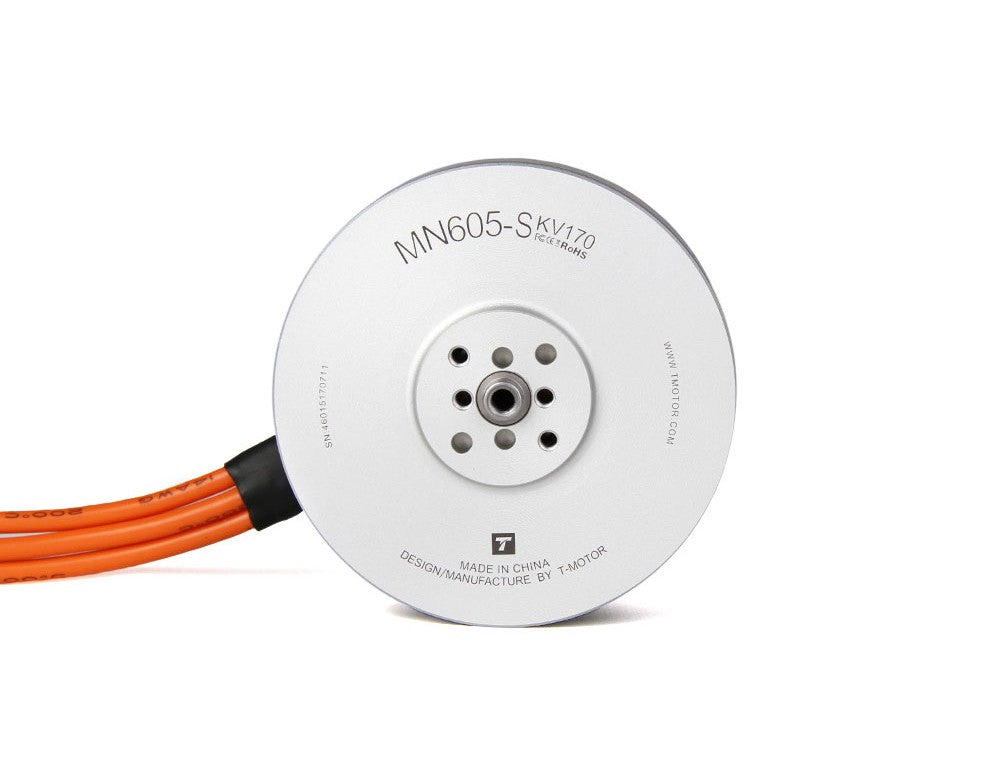

TMotor MN605-S IP45 Multirotor Fixed Wing UAV Motor (KV170 / KV320) 2P

About T-MOTOR Navigator MN605-S Multirotor Fixed Wing UAV Motor KV170/KV320

T-MOTOR MN605-S KV170/KV320 Multirotor Motor delivers high performance for multi-rotors, VTOL, and fixed-wing UAVs. Its advanced cooling design improves heat dissipation by 15%, while high-temperature resistant components ensure durability. Features include dust, water, and corrosion resistance, easy mounting, and a modular propulsion system. Max thrust: 8.6kg, MTBF: 1000 hours. Recommended with T-Motor P22*6.6" prop.

Navigator MN605-S Highlights:

Max thrust: 8.6kg
MTBF: About 1000hours
Features: Dust-resistance/Waterproof/Anti-corrosion

Technical Drawing

Specification

Motor Size	Φ68.8*34.9mm	Copper Wire	180℃ high temperature resistance: Level H
Stator	Imported silicon steel sheet; Anti-rust treatment; 180°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：6mm，OUT：6mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 626ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	150℃ high temperature resistance	IP	IP45
Lead Cable	14AWG*150mm

KV	170	Rated Voltage ( Lipo )	6-12S
Idle Current(20V)	1A	ESC Recommendation	FLAME 60A 12S
Peak Current(180s)	35A	Propeller Recommendation	20-22"
Max.Power(180s)	1700W	Motor Weight (indl. Cable)	350g
Internal Resistance	65mΩ	Package Weight	980g(2PCS/SET)

KV	320	Rated Voltage ( Lipo )	6S
Idle Current(17V)	2.2A	ESC Recommendation	FLAME 70A 6S
Peak Current(180s)	55A	Propeller Recommendation	20-22"
Max.Power(180s)	1400W	Motor Weight (indl. Cable)	350g
Internal Resistance	21mΩ	Package Weight	960g(2PCS/SET)

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g/W)	Operating Temperature (℃)
MN605S KV170	T-MOTOR P21*6.3	40%	47.87	1787	0.43	3.80	3358	182	9.82	62.6 (Ambient Temperature: 34.5℃)
		42%	47.86	1862	0.45	4.00	3437	191	9.73
		44%	47.85	2016	0.48	4.50	3574	215	9.36
		46%	47.84	2153	0.51	4.90	3675	234	9.18
		48%	47.82	2311	0.55	5.50	3789	263	8.79
		50%	47.80	2483	0.58	6.00	3922	287	8.66
		52%	47.78	2669	0.62	6.50	4042	311	8.59
		54%	47.75	2763	0.66	6.90	4165	329	8.39
		56%	47.73	2947	0.67	7.50	4288	358	8.23
		58%	47.71	3115	0.71	8.10	4363	386	8.06
		60%	47.69	3315	0.75	8.70	4471	415	7.99
		62%	47.66	3435	0.79	9.30	4598	443	7.75
		64%	47.64	3582	0.83	9.80	4705	467	7.67
		66%	47.61	3746	0.88	10.40	4822	495	7.57
		68%	47.58	3951	0.92	11.20	4927	533	7.41
		70%	47.56	4108	0.95	12.00	5017	571	7.20
		75%	47.48	4584	1.05	13.90	5274	660	6.95
		80%	47.40	5018	1.16	15.90	5531	754	6.66
		90%	47.21	6144	1.43	21.30	6061	1006	6.11
		100%	47.02	7651	1.71	29.10	6650	1368	5.59
MN605S KV170	T-MOTOR P22*6.6	40%	47.92	2067	0.52	4.30	3265	206	10.03	88 (Ambient Temperature: 34.5℃)
		42%	47.91	2208	0.56	4.70	3313	225	9.81
		44%	47.89	2384	0.60	5.20	3509	249	9.57
		46%	47.88	2553	0.65	5.70	3627	273	9.35
		48%	47.86	2704	0.69	6.30	3745	302	8.97
		50%	47.84	2892	0.73	6.90	3860	330	8.76
		52%	47.81	3067	0.77	7.50	3973	359	8.55
		54%	47.79	3273	0.81	8.20	4085	392	8.35
		56%	47.76	3471	0.85	9.00	4208	430	8.08
		58%	47.74	3584	0.88	9.60	4287	458	7.82
		60%	47.71	3736	0.94	10.20	4386	487	7.68
		62%	47.69	3896	0.99	10.90	4473	520	7.49
		64%	47.66	4104	1.03	11.70	4577	558	7.36
		66%	47.63	4283	1.08	12.60	4697	600	7.14
		68%	47.60	4500	1.12	13.50	4808	643	7.00
		70%	47.57	4721	1.18	14.30	4903	680	6.94
		75%	47.48	5477	1.30	17.40	5196	826	6.63
		80%	47.39	6064	1.44	20.20	5450	957	6.33
		90%	47.18	7201	1.72	26.20	5923	1236	5.83
		100%	46.97	8626	2.06	34.60	6469	1625	5.31
MN605S KV320	T-MOTOR P21*6.3	40%	23.87	1465	0.28	6.50	3044	155	9.44	54 (Ambient Temperature: 34.5℃)
		42%	23.86	1552	0.30	7.00	3116	167	9.29
		44%	23.84	1629	0.33	7.50	3215	179	9.11
		46%	23.81	1757	0.36	8.20	3322	195	9.00
		48%	23.79	1883	0.39	8.90	3413	212	8.89
		50%	23.76	2046	0.42	10.00	3564	238	8.61
		52%	23.72	2196	0.46	11.00	3716	261	8.42
		54%	23.69	2354	0.50	11.90	3820	282	8.35
		56%	23.65	2467	0.52	12.70	3904	300	8.21
		58%	23.62	2606	0.56	13.60	4006	321	8.11
		60%	23.59	2751	0.61	14.70	4113	347	7.93
		62%	23.55	2930	0.63	16.00	4228	377	7.78
		64%	23.51	3100	0.67	17.20	4345	404	7.67
		66%	23.47	3262	0.72	18.40	4460	432	7.55
		68%	23.43	3473	0.74	19.80	4585	464	7.49
		70%	23.39	3660	0.80	21.70	4727	508	7.21
		75%	23.28	4111	0.89	25.50	4997	594	6.93
		80%	23.15	4601	0.99	29.80	5297	690	6.67
		90%	22.86	5557	1.19	39.20	5781	896	6.20
		100%	22.61	6542	1.41	50.50	6250	1142	5.73
MN605S KV320	T-MOTOR P22*6.6	40%	23.84	1502	0.34	6.70	2832	139	10.13	64 (Ambient Temperature: 34.5℃)
		42%	23.83	1696	0.37	7.70	2988	155	9.88
		44%	23.80	1772	0.40	8.30	3084	172	9.67
		46%	23.77	1913	0.44	9.00	3197	192	9.41
		48%	23.75	2092	0.47	10.00	3311	213	9.17
		50%	23.71	2294	0.51	11.40	3462	236	8.96
		52%	23.68	2483	0.55	12.50	3586	264	8.65
		54%	23.64	2658	0.59	14.00	3704	292	8.43
		56%	23.60	2797	0.62	14.70	3801	321	8.25
		58%	23.56	2989	0.67	16.30	3926	350	7.96
		60%	23.52	3140	0.72	17.40	4031	378	7.70
		62%	23.48	3277	0.77	18.70	4137	407	7.64
		64%	23.44	3509	0.81	20.20	4265	439	7.36
		66%	23.40	3620	0.85	21.70	4346	476	7.25
		68%	23.35	3875	0.91	23.30	4465	508	7.17
		70%	23.30	4054	0.95	25.20	4584	544	7.00
		75%	23.17	4584	1.06	30.00	4859	636	6.69
		80%	23.05	5038	1.17	35.10	5105	726	6.38
		90%	22.75	6108	1.42	45.30	5591	939	5.90
		100%	22.46	7178	1.67	58.60	6008	1136	5.52
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
