TMotor MN701-S IP45 Multirotor Fixed Wing UAV Motor (KV135 / KV280) 2P

About T-MOTOR Navigator MN701-S Multirotor Fixed Wing UAV Motor KV135

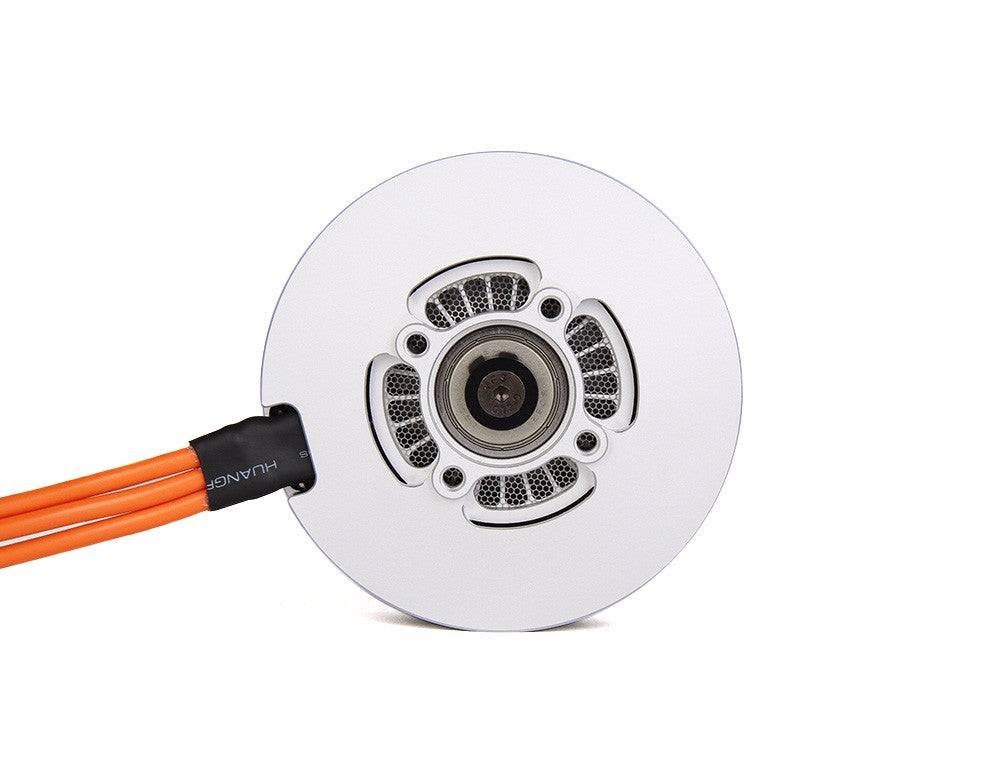

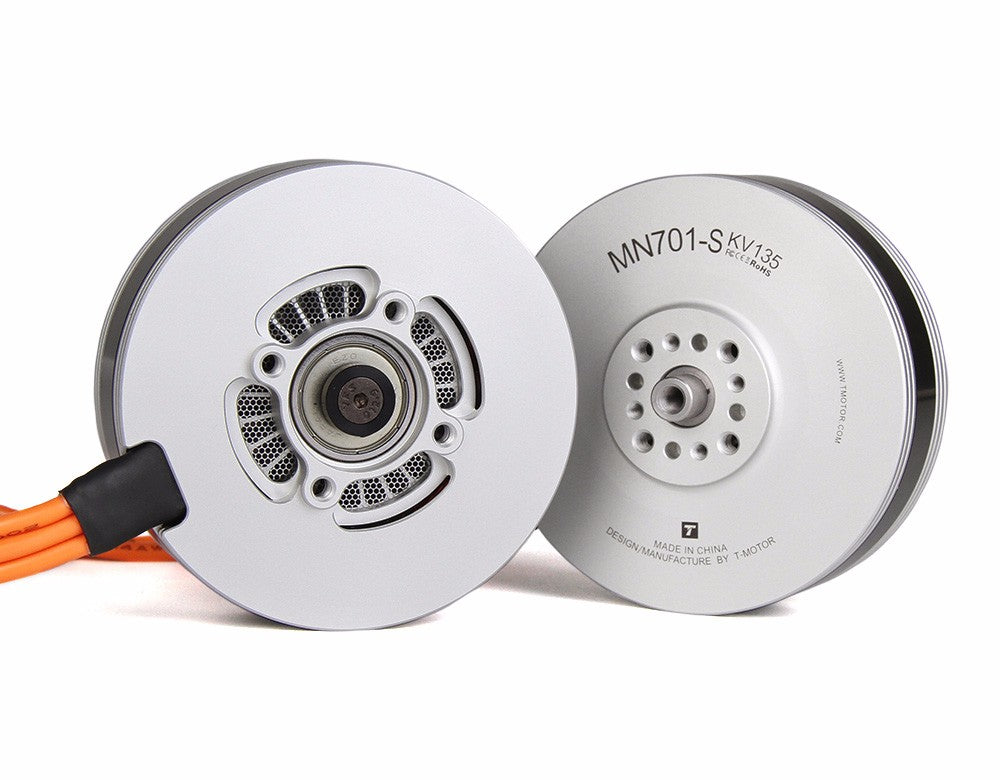

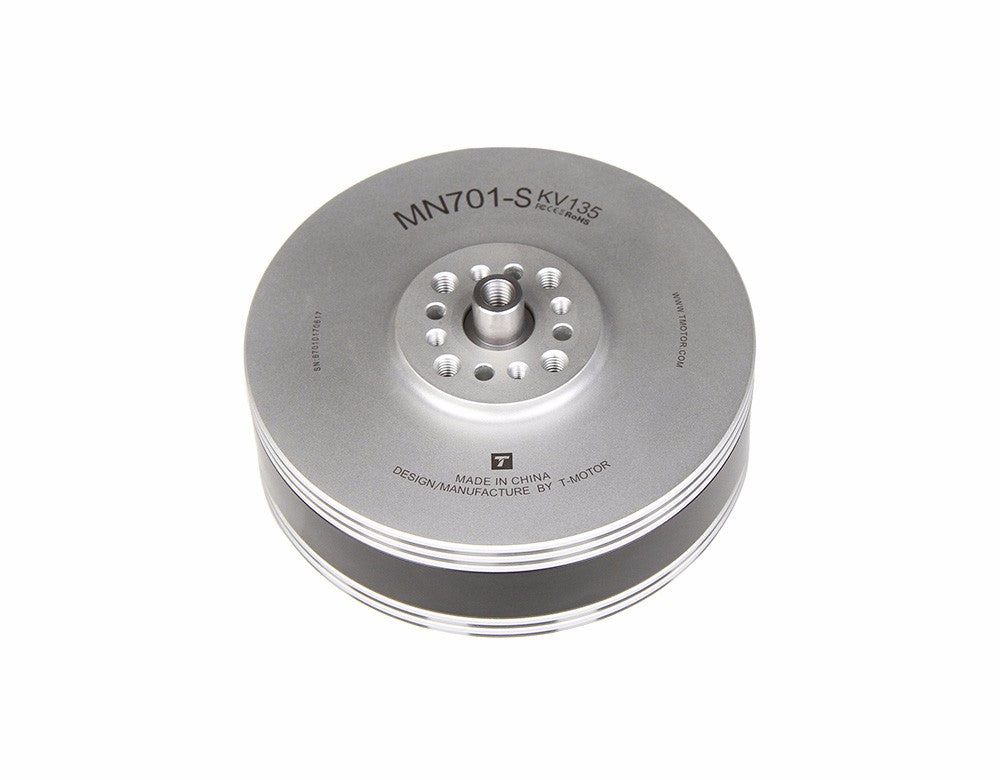

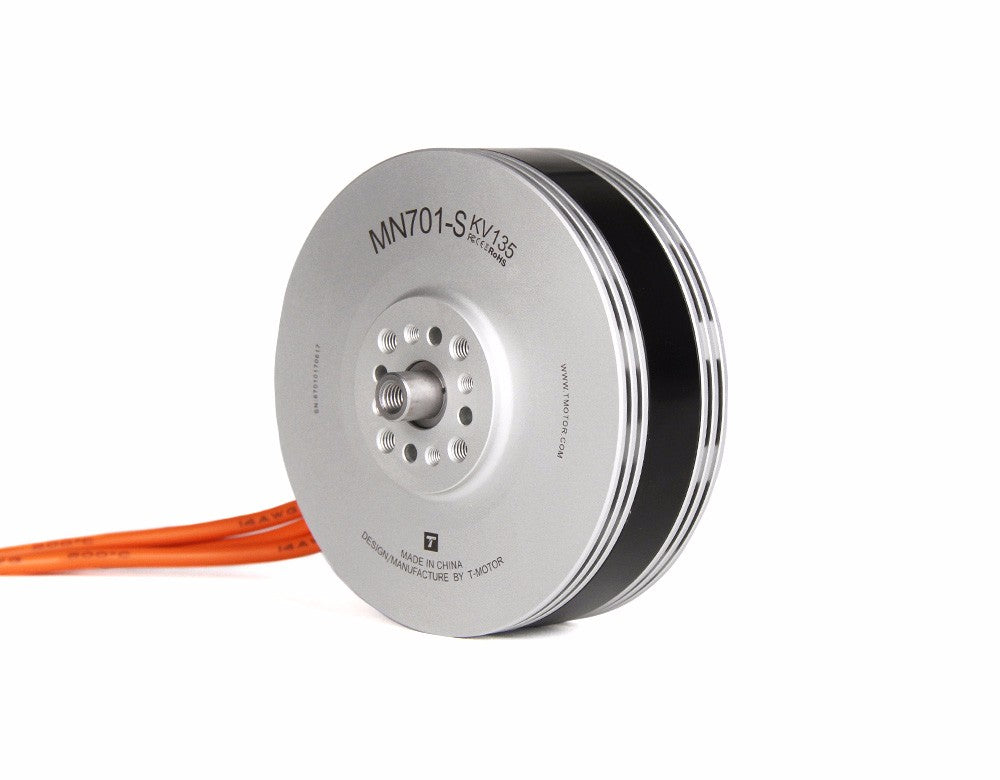

T-MOTOR MN701-S KV135 Brushless Motor (2x) delivers exceptional performance with 9.7+ kg thrust and advanced cooling design.

Its centrifugal fan and enhanced motor base improve heat dissipation by 15%, ensuring stability and reliability. Built with high-temperature resistant magnets and varnished wires, it offers excellent heat and overload resistance. Featuring IP45 protection, dust-resistance, waterproofing, and anti-corrosion, this motor is perfect for multi-rotors, VTOL, and fixed-wing UAVs. MTBF: 1000 hours.

Navigator MN701-S Highlights:

Max thrust: 9.7kg
MTBF: About 1000hours
Features: Dust-resistance/Waterproof/Anti-corrosion

Technical Drawing

Specification

Motor Size	Φ79.2*37.4mm	Copper Wire	220℃ high temperature resistance: Level C
Stator	Imported silicon steel sheet; Anti-rust treatment; 180°Chigh temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：8mm，OUT：8mm	Rotor Dynamic Balance Standard	≤5Mg
Bearing	Imported 608ZZ	Motor Dynamic Balance Standard	≤10Mg
Magnet Level	150℃ high temperature resistance	IP	IP45
Lead Cable	14AWG*150mm

KV	135	Rated Voltage ( Lipo )	6-12S
Idle Current(20V)	0.9A	ESC Recommendation	FLAME 60A 12S FLAME 80A 12S V2.0
Peak Current(180s)	42A	Propeller Recommendation	24-26"
Max.Power(180s)	1900W	Motor Weight (indl. Cable)	350g
Internal Resistance	94mΩ	Package Weight	1050g(2PCS/SET)

KV	280	Rated Voltage ( Lipo )	6S
Idle Current(17V)	2.0A	ESC Recommendation	FLAME 70A 6S FLAME 100A 6S
Peak Current(180s)	65A	Propeller Recommendation	24-26"
Max.Power(180s)	1600W	Motor Weight (indl. Cable)	355g
Internal Resistance	23mΩ	Package Weight	1068g(2PCS/SET)

Test Data

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g/W)	Operating Temperature (℃)
MN701S KV135	T-MOTOR P24*7.2	40%	47.87	1875	0.60	3.30	2487	158	11.87	70 (Ambient Temperature: 34.5℃)
		42%	47.85	1976	0.65	3.60	2560	172	11.47
		44%	47.84	2220	0.70	4.20	2692	201	11.05
		46%	47.82	2380	0.74	4.60	2773	220	10.82
		48%	47.80	2477	0.80	4.90	2853	234	10.58
		50%	47.79	2692	0.85	5.50	2972	263	10.24
		52%	47.76	2812	0.90	6.00	3058	287	9.81
		54%	47.74	3155	0.95	7.10	3202	339	9.31
		56%	47.73	3239	1.00	7.40	3273	353	9.17
		58%	47.70	3387	1.07	8.00	3469	382	8.88
		60%	47.68	3625	1.13	8.80	3456	420	8.64
		62%	47.66	3801	1.18	9.40	3517	448	8.48
		64%	47.63	3934	1.24	10.00	3600	476	8.26
		66%	47.61	4165	1.29	10.80	3687	514	8.10
		68%	47.58	4403	1.34	11.60	3755	552	7.98
		70%	47.55	4628	1.43	12.40	3856	590	7.85
		75%	47.48	5047	1.54	14.20	4024	674	7.49
		80%	47.39	5561	1.70	16.30	4221	772	7.20
		90%	47.22	6515	2.00	21.10	4546	996	6.54
		100%	47.03	8011	2.31	28.60	4981	1345	5.96
MN701S KV135	T-MOTOR G26*8.5	40%	47.78	2774	0.98	5.10	2380	244	11.38	HOT (Ambient Temperature: 34.5℃)
		42%	47.76	3067	1.04	5.70	2484	272	11.27
		44%	47.74	3212	1.10	6.50	2568	310	10.35
		46%	47.71	3378	1.16	6.90	2643	329	10.26
		48%	47.69	3546	1.24	7.50	2707	358	9.91
		50%	47.67	3837	1.30	8.30	2812	396	9.70
		52%	47.64	4094	1.38	9.20	2903	438	9.34
		54%	47.61	4279	1.46	9.80	2962	467	9.17
		56%	47.58	4494	1.53	10.60	3037	504	8.91
		58%	47.53	4943	1.63	12.20	3172	580	8.52
		60%	47.50	5002	1.71	12.60	3212	599	8.36
		62%	47.47	5230	1.77	13.50	3285	641	8.16
		64%	47.44	5470	1.83	14.50	3362	688	7.95
		66%	47.41	5637	1.89	15.50	3446	735	7.67
		68%	47.37	5824	1.96	16.40	3516	777	7.50
		70%	47.33	6011	2.04	17.40	3617	824	7.30
		75%	47.24	6613	2.21	20.10	3730	950	6.96
		80%	47.13	7194	2.39	22.90	3869	1079	6.67
		90%	46.89	8321	2.72	29.60	4164	1388	6.00
		100%	46.64	9733	2.98	39.50	4468	1842	5.28
MN701S KV280	T-MOTOR P24*7.2	40%	23.82	1511	0.50	6.00	2262	143	10.57	58 (Ambient Temperature: 34.5℃)
		42%	23.79	1684	0.55	6.80	2382	162	10.41
		44%	23.75	1810	0.59	7.40	2476	176	10.30
		46%	23.72	2022	0.65	8.70	2592	206	9.80
		48%	23.68	2252	0.71	9.80	2754	232	9.70
		50%	23.63	2483	0.77	11.40	2880	269	9.22
		52%	23.58	2648	0.83	12.60	3004	297	8.91
		54%	23.54	2881	0.89	14.00	3096	330	8.74
		56%	23.50	3077	0.94	15.30	3193	360	8.56
		58%	23.45	3268	0.99	16.60	3260	389	8.40
		60%	23.43	3466	1.02	18.20	3312	426	8.13
		62%	23.36	3669	1.10	19.60	3463	458	8.01
		64%	23.31	3862	1.16	21.20	3555	494	7.82
		66%	23.25	4087	1.23	22.80	3638	530	7.71
		68%	23.19	4247	1.29	24.40	3724	566	7.51
		70%	23.14	4490	1.35	27.10	3820	627	7.16
		75%	22.99	4963	1.49	30.80	4004	708	7.01
		80%	22.85	5398	1.61	35.30	4206	807	6.69
		90%	22.46	6602	1.92	48.10	4604	1080	6.11
		100%	22.10	7618	2.17	60.60	4935	1339	5.69
MN701S KV280	T-MOTOR G26*8.5	40%	23.55	2189	0.66	8.70	2161	205	10.68	HOT (Ambient Temperature: 34.5℃)
		42%	23.50	2351	0.73	9.80	2236	230	10.21
		44%	23.46	2603	0.81	11.10	2336	260	10.00
		46%	23.41	2854	0.88	12.40	2433	290	9.83
		48%	23.33	3100	0.97	14.00	2536	327	9.49
		50%	23.27	3376	1.03	15.90	2642	370	9.12
		52%	23.21	3675	1.09	17.60	2757	409	9.00
		54%	23.13	3879	1.16	19.50	2835	451	8.60
		56%	23.05	4144	1.24	21.40	2923	493	8.40
		58%	22.97	4441	1.30	23.80	3024	547	8.12
		60%	22.90	4612	1.37	25.30	3089	579	7.96
		62%	22.81	4831	1.44	27.70	3164	632	7.65
		64%	22.72	5180	1.51	30.40	3265	691	7.50
		66%	22.65	5355	1.58	32.00	3322	725	7.39
		68%	22.58	5555	1.64	34.10	3391	770	7.21
		70%	22.50	5782	1.74	36.30	3457	817	7.08
		75%	22.24	6390	1.92	43.00	3634	956	6.68
		80%	22.05	6860	2.08	48.80	3773	1076	6.38
		90%	21.58	8005	2.40	63.70	4076	1375	5.82
		100%	21.11	9040	2.66	80.60	4333	1701	5.31
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)
