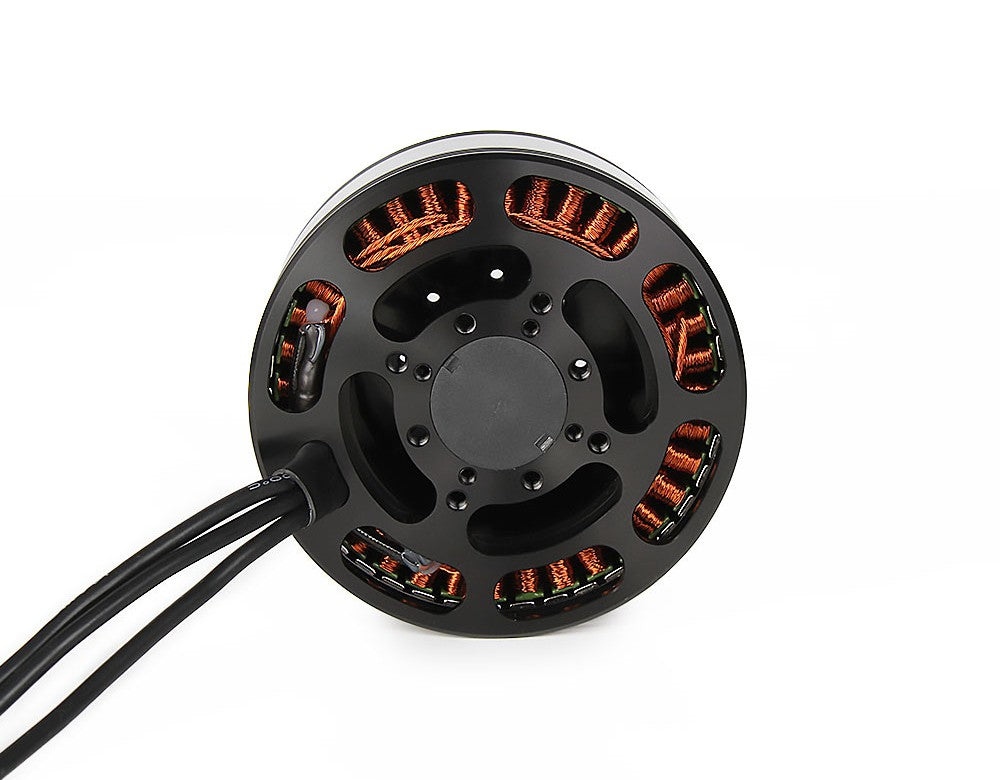

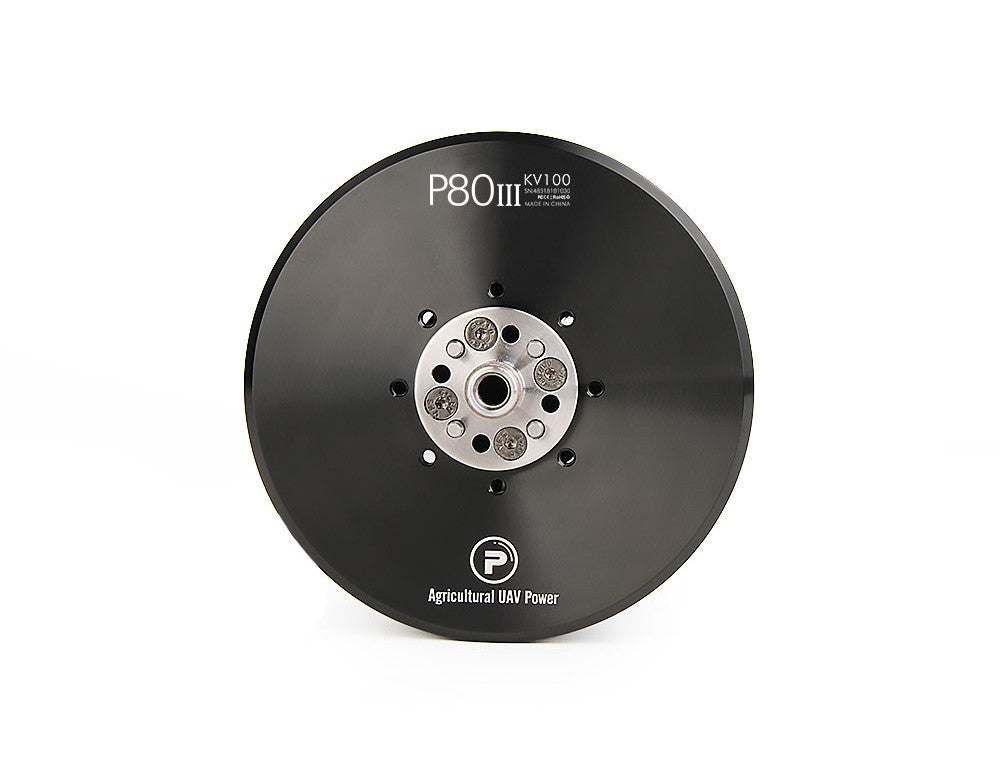

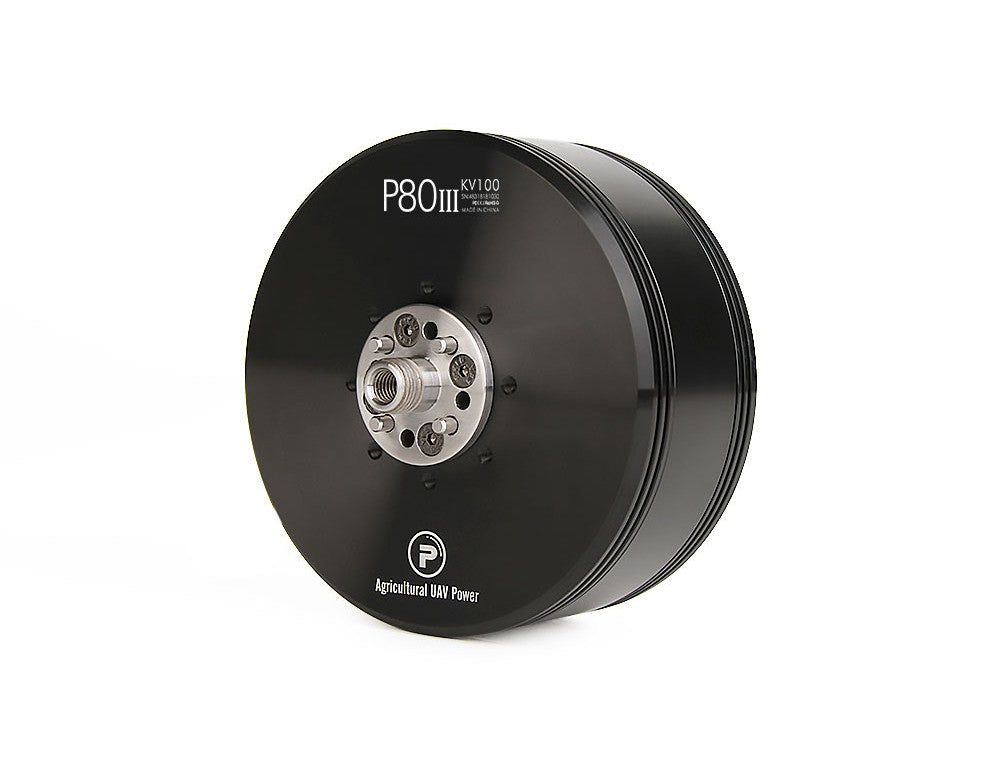

TMotor P80Ⅲ Pin Agricultural UAV Motor (KV100 / KV120)
TMotor P80Ⅲ Pin Agricultural UAV Motor (KV100 / KV120)
TMotor P80Ⅲ Pin Agricultural UAV Motor (KV100 / KV120)

TMotor P80Ⅲ Pin Agricultural UAV Motor (KV100 / KV120)

€199.00

KV100KV100
KV120KV120
SKU: TM-P80IIIPIN-KV100Categories: Motors
Description

About T-MOTOR P80 Ⅲ Pin Agricultural UAV Motor KV100

T-MOTOR P80 III (Model: P80III-KV100) is a high-performance motor for commercial drones, ideal for agriculture and tough environments. With a 100 KV rating, 25kg weight, and efficient 12S voltage system, it excels in water, pesticide, mud, and dust resistance. Offering superior thrust, stability, and longevity, it supports both carbon and traditional propellers (adapter required) and is compatible with T-MOTOR’s quick-release prop adapter. Its durable, precision design ensures reliable performance in demanding conditions.


P80 Ⅲ Pin KV120 Highlights:

  • Max. thrust ：18.2kg
  • Motor Maintenance：Regularly lubricate bearings to reduce friction and wear
  • Features：Industrial Grade, Waterproof, dustproof, low noise, Impact Resistant



  • "P Type" are a series of motors we designed for agriculture and plant protection. P60 (max. thrust 8.4kg) and P80 (max. thrust 18kg ) from P Type are with enclosed appearance to protect the motor from foreign matters and pesticides.
  • With standardization of UAV industry segment, the requirements of users aregrowing rapidly. T-MOTOR, having always been keen in providing"the Safest Propulsion System", is now releasing P-SERElS motors for agricultural application with powerful thrust and high performance after tremendous tests. P-SERIES motors are capable of working in demanding environment with reliability and long service life.


Technical Drawing


Specification

Test Item KV100 Weight (Incl. Cable) 649g
Motor Dimensions Φ91.6*43mm Internal Resistance 45-51mΩ
Lead 14AWG Silicone wire Configuration 36N42P
Shaft Diameter 15mm Rated Voltage(Lipo) 6-12S
Idle Current(10V) 1.6A Peak Current(180s) 60A
Max Power (180S) 2700W

Test Item KV120 Weight (Incl. Cable) 649g
Motor Dimensions Φ91.6*43mm Internal Resistance 36-41mΩ
Lead 14AWG Silicone wire Configuration 36N42P
Shaft Diameter 15mm Rated Voltage(Lipo) 6-12S
Idle Current(10V) ≤2.0A Peak Current(180s) 70A
Max Power (180S) 3600W

Test Data Export to Excel
Type Propeller Throttle Voltage
(V)		 Thrust
(g)		 Torque
(N*m)		 Current
(A)		 RPM Power
(W)		 Efficiency
(g/W)

Operating
Temperature

(℃)
P80 ΙΙΙ
KV100		 T-MOTOR

G30*10.5"

CF

 40% 47.91 2850 0.97 4.97 1719 238 11.96 /
42% 47.90 3108 1.06 5.54 1783 265 11.72
44% 47.88 3331 1.13 6.07 1849 291 11.46
46% 47.87 3571 1.22 6.65 1913 318 11.23
48% 47.87 3859 1.30 7.29 1981 349 11.06
50% 47.85 4114 1.39 7.99 2040 382 10.77
52% 47.84 4439 1.50 8.80 2125 421 10.54
54% 47.81 4748 1.61 9.80 2204 468 10.14
56% 47.79 5143 1.75 10.89 2292 520 9.88
58% 47.76 5515 1.88 12.20 2386 582 9.47
60% 47.75 5886 1.99 13.11 2459 626 9.41
62% 47.72 6306 2.14 14.39 2531 687 9.18
64% 47.71 6649 2.25 15.56 2610 742 8.96
66% 47.67 7061 2.39 17.00 2683 810 8.72
68% 47.66 7434 2.51 18.22 2755 868 8.56
70% 47.62 7886 2.67 20.15 2836 960 8.22
76% 47.54 9074 3.07 24.34 3030 1157 7.84
82% 47.45 10215 3.45 29.34 3223 1392 7.34
88% 47.36 11500 3.88 34.75 3397 1646 6.99
94% 47.26 12603 4.28 40.33 3569 1906 6.61
100% 47.15 14011 4.78 46.99 3747 2215 6.33
T-MOTOR
MF3016		 40% 47.89 3050 1.09 5.32 1712 255 11.97 /
42% 47.88 3296 1.18 5.90 1769 282 11.67
44% 47.87 3508 1.25 6.52 1830 312 11.24
46% 47.86 3729 1.33 7.10 1893 340 10.97
48% 47.85 4020 1.42 7.72 1961 369 10.88
50% 47.84 4278 1.52 8.46 2024 405 10.57
52% 47.82 4616 1.65 9.41 2104 450 10.26
54% 47.80 4902 1.75 10.33 2176 494 9.93
56% 47.78 5361 1.91 11.58 2271 553 9.69
58% 47.76 5729 2.04 12.68 2345 606 9.46
60% 47.73 6189 2.19 14.14 2434 675 9.17
62% 47.71 6526 2.31 15.38 2506 734 8.90
64% 47.68 6969 2.47 16.86 2580 804 8.67
66% 47.65 7363 2.61 18.14 2650 864 8.52
68% 47.63 7719 2.73 19.50 2719 929 8.31
70% 47.60 8132 2.88 21.10 2782 1004 8.10
76% 47.51 9395 3.34 26.16 2987 1243 7.56
82% 47.41 10618 3.78 31.59 3174 1498 7.09
88% 47.32 11833 4.22 37.16 3350 1758 6.73
94% 47.21 13009 4.64 43.34 3515 2046 6.36
100% 47.09 14371 5.13 50.42 3686 2374 6.05
T-MOTOR

G32*11"

CF

 40% 47.89 3569 1.30 6.23 1682 298 11.97 /
42% 47.88 3833 1.40 6.84 1744 327 11.72
44% 47.86 4074 1.48 7.57 1804 362 11.25
46% 47.86 4329 1.57 8.08 1848 387 11.19
48% 47.83 4655 1.69 9.00 1915 431 10.81
50% 47.82 4992 1.80 9.89 1982 473 10.56
52% 47.81 5325 1.92 10.76 2054 514 10.36
54% 47.77 5655 2.05 11.96 2121 571 9.90
56% 47.76 6143 2.22 13.22 2206 631 9.73
58% 47.73 6604 2.39 14.61 2289 697 9.47
60% 47.69 7188 2.59 16.52 2374 788 9.13
62% 47.67 7609 2.75 17.83 2438 850 8.95
64% 47.64 7997 2.90 19.37 2506 923 8.67
66% 47.62 8413 3.04 20.83 2577 992 8.48
68% 47.59 8783 3.18 22.42 2646 1067 8.23
70% 47.55 9372 3.38 24.31 2707 1156 8.11
76% 47.45 10840 3.92 30.37 2905 1441 7.52
82% 47.34 12181 4.43 36.47 3078 1726 7.06
88% 47.23 13512 4.94 43.11 3237 2036 6.64
94% 47.10 14961 5.48 50.65 3393 2385 6.27
100% 46.96 16344 5.98 58.51 3545 2748 5.95
T-MOTOR
MF3218		 40% 47.87 3505 1.30 6.23 1684 298 11.75 /
42% 47.87 3744 1.39 6.71 1739 321 11.66
44% 47.85 3992 1.47 7.43 1798 356 11.23
46% 47.83 4267 1.58 8.20 1856 392 10.88
48% 47.82 4565 1.68 8.98 1920 429 10.63
50% 47.80 4885 1.79 9.75 1981 466 10.48
52% 47.77 5248 1.93 11.00 2056 525 9.99
54% 47.76 5592 2.06 11.93 2125 570 9.82
56% 47.74 6039 2.23 13.24 2214 632 9.56
58% 47.72 6510 2.39 14.65 2295 699 9.31
60% 47.68 7018 2.57 16.30 2376 777 9.03
62% 47.65 7408 2.71 17.70 2446 843 8.78
64% 47.63 7803 2.87 19.12 2512 911 8.57
66% 47.61 8227 3.02 20.56 2583 979 8.41
68% 47.57 8732 3.20 22.39 2646 1065 8.20
70% 47.54 9167 3.36 24.10 2713 1146 8.00
76% 47.44 10531 3.87 29.81 2913 1414 7.45
82% 47.33 11825 4.37 35.92 3087 1700 6.95
88% 47.23 13079 4.83 42.10 3256 1988 6.58
94% 47.10 14412 5.30 49.09 3418 2312 6.23
100% 46.97 15849 5.83 56.87 3567 2671 5.93
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
P80 ΙΙΙ
KV120		 T-MOTOR

G30*10.5"

CF

 40% 47.86 3819 1.29 7.55 1984 361 10.57 /
42% 47.84 4145 1.40 8.39 2055 401 10.33
44% 47.83 4433 1.49 9.14 2141 437 10.15
46% 47.79 5135 1.73 11.09 2289 530 9.68
48% 47.76 5719 1.94 12.95 2416 618 9.25
50% 47.73 6157 2.08 14.35 2503 685 8.99
52% 47.71 6592 2.22 15.63 2589 746 8.84
54% 47.68 7019 2.38 17.19 2673 820 8.56
56% 47.65 7493 2.53 18.84 2755 898 8.34
58% 47.61 8114 2.74 21.11 2860 1005 8.08
60% 47.58 8578 2.90 22.89 2933 1089 7.88
62% 47.55 8983 3.04 24.52 3003 1166 7.71
64% 47.52 9388 3.17 26.22 3070 1246 7.53
66% 47.48 9842 3.35 28.33 3145 1345 7.32
68% 47.45 10262 3.47 30.19 3222 1432 7.16
70% 47.41 10784 3.66 32.47 3289 1540 7.00
76% 47.28 12346 4.19 39.73 3488 1878 6.57
82% 47.16 13689 4.68 47.11 3679 2222 6.16
88% 47.02 15158 5.17 54.95 3855 2583 5.87
94% 46.84 16739 5.73 64.69 4037 3030 5.52
100% 46.66 18256 6.28 74.97 4209 3498 5.22
T-MOTOR
MF3016		 40% 47.85 4027 1.44 8.14 1964 390 10.33 /
42% 47.84 4322 1.54 8.91 2034 426 10.14
44% 47.82 4608 1.64 9.81 2103 469 9.82
46% 47.80 5009 1.79 11.07 2197 529 9.47
48% 47.76 5603 1.99 12.85 2318 614 9.13
50% 47.72 6395 2.28 15.37 2473 733 8.72
52% 47.69 6805 2.42 16.80 2553 801 8.50
54% 47.66 7239 2.57 18.34 2637 874 8.28
56% 47.63 7702 2.73 20.06 2715 955 8.06
58% 47.60 8219 2.92 21.98 2796 1046 7.86
60% 47.56 8708 3.10 24.13 2886 1148 7.59
62% 47.53 9147 3.25 25.84 2951 1228 7.45
64% 47.49 9526 3.39 27.85 3029 1323 7.20
66% 47.45 10077 3.59 30.04 3102 1425 7.07
68% 47.41 10495 3.74 32.12 3174 1523 6.89
70% 47.37 11049 3.93 34.54 3239 1636 6.75
76% 47.25 12441 4.44 41.62 3442 1966 6.33
82% 47.11 13813 4.96 49.58 3623 2335 5.91
88% 46.97 15149 5.43 57.50 3798 2701 5.61
94% 46.80 16817 5.98 67.17 3979 3143 5.35
100% 46.61 18291 6.54 77.84 4142 3628 5.04
T-MOTOR

G29*9.5"

CF

 40% 47.88 3371 1.10 6.60 2020 316 10.67 /
42% 47.86 3643 1.19 7.32 2097 351 10.39
44% 47.84 3974 1.30 8.30 2199 397 10.01
46% 47.81 4498 1.47 9.72 2332 465 9.68
48% 47.79 4931 1.61 10.90 2442 521 9.47
50% 47.78 5338 1.74 12.00 2529 573 9.31
52% 47.74 5850 1.91 13.90 2657 664 8.82
54% 47.72 6290 2.05 15.25 2755 728 8.64
56% 47.68 6778 2.21 17.07 2854 814 8.33
58% 47.66 7230 2.35 18.52 2936 883 8.19
60% 47.63 7608 2.47 19.97 3012 951 8.00
62% 47.60 7960 2.59 21.38 3079 1018 7.82
64% 47.58 8330 2.72 22.86 3149 1088 7.66
66% 47.55 8737 2.84 24.55 3228 1167 7.49
68% 47.52 9214 2.99 26.37 3306 1253 7.35
70% 47.48 9632 3.14 28.43 3381 1350 7.14
76% 47.38 10865 3.53 33.93 3594 1608 6.76
82% 47.26 12235 3.99 40.64 3792 1921 6.37
88% 47.13 13656 4.47 48.19 3995 2272 6.01
94% 46.99 15086 4.93 56.17 4185 2640 5.72
100% 46.82 16504 5.42 65.18 4371 3052 5.41
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)


Packing List Includes:

  • 1x T-MOTOR P80 Ⅲ Pin Motor KV100
  • 1x Hardware pack


Ships in 4 to 7 working days from order placement
