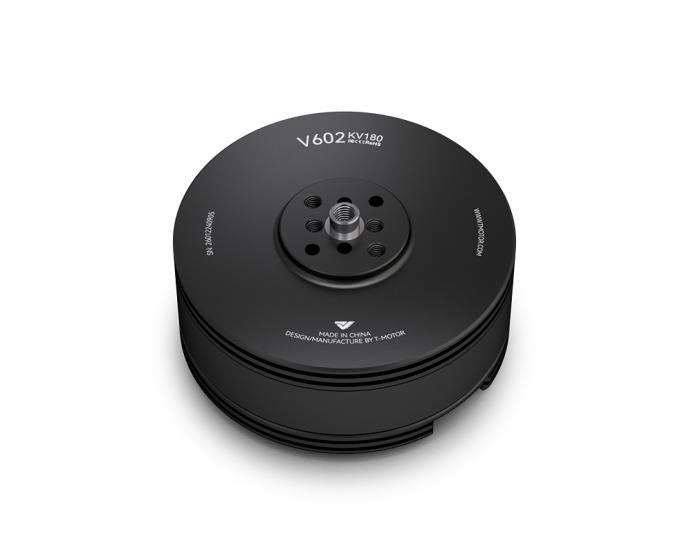

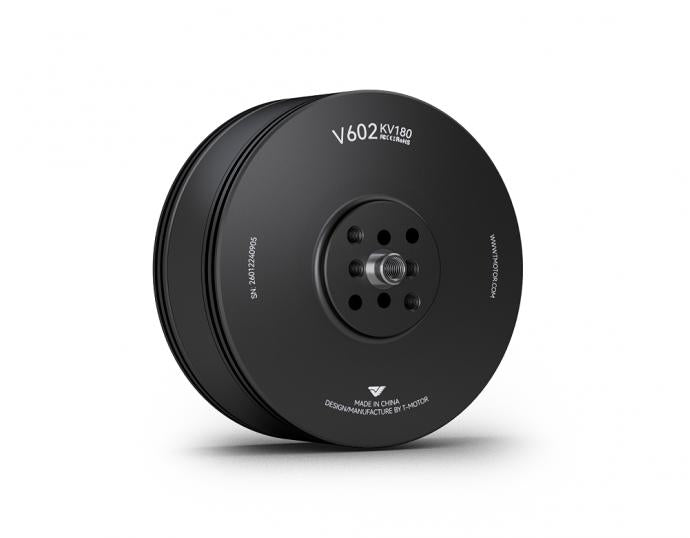

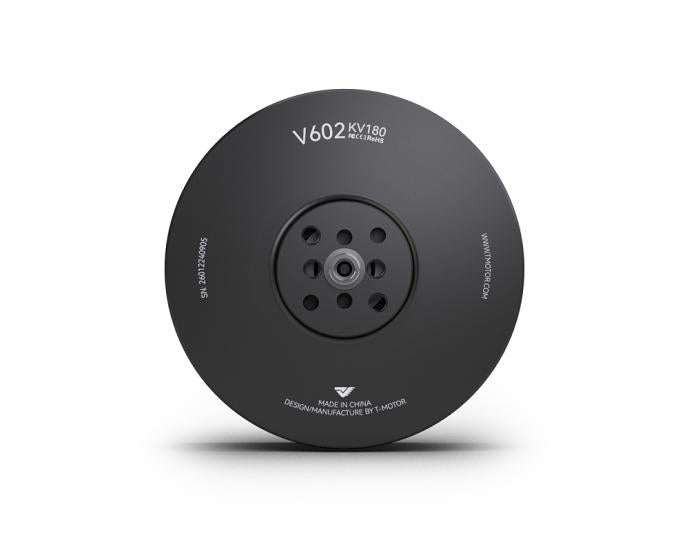

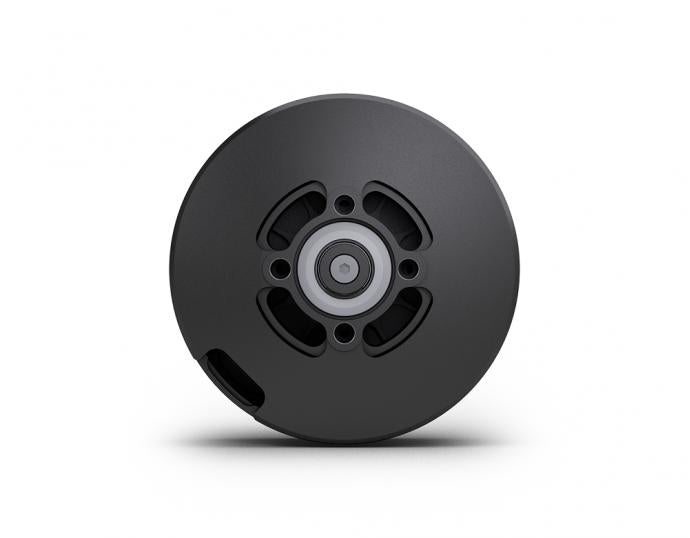

TMotor V602 KV180 12S Vtol Brushless Drone Motor

€139.00

SKU: TM-V602-KV180Categories: Motors

Technical Drawing


Model No./ Kv	V602 KV180	Magnet Temperature Resistance Grade	Class E 150℃
Motor Size(mm)	Φ68.8*36.9	Lead(mm)	14AWG*600
Stator Technology	Anti-rust treatment;180°C high temperature-resisting coatings	Enamelled Wires Temperature Resistance Grade	Class C 220℃
Configuration	24N28P	Coil Withdraw Voltage	500V/5s
Shaft Diameter(mm)	IN:6 OUT:6	Rotor Dynamic Balance Standard	≤5mg
Bearing	Imported 626ZZ	IP	IP45

KV Value	KV180	Battery (lipo)/Voltage Recommendation	12S(4.2V/Sl)/42-52V
Idle Current(18V)	0.9A	ESC Recommendation	FLAME 60A 12S
Peak Current(A)	45A/Continuous 180s	Propeller Recommendation	V22*7.4
Max. Power(W)	2000W/Continuous 180s	Motor Weight(g)	300g (345g Weight (incl.cables))
Internal Resistance(mΩ)	88	Package Weight(g)	530g

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature ℃)
V602- KV180	T-MOTOR V22*7.4	40%	47.74	2407	0.62	5.11	3016	243.91	9.87	89℃
		42%	47.71	2747	0.71	6.16	3202	293.97	9.34
		44%	47.69	2919	0.76	6.68	3289	318.36	9.17
		46%	47.67	3121	0.80	7.36	3395	351.02	8.89
		48%	47.65	3316	0.86	8.09	3498	385.34	8.61
		50%	47.63	3527	0.91	8.77	3594	417.61	8.45
		52%	47.59	3727	0.97	9.59	3690	456.44	8.17
		54%	47.57	3965	1.03	10.43	3792	496.12	7.99
		56%	47.55	4193	1.08	11.30	3881	537.39	7.80
		58%	47.51	4431	1.14	12.23	3977	580.98	7.63
		60%	47.48	4646	1.20	13.15	4069	624.35	7.44
		62%	47.45	4881	1.26	14.24	4166	675.61	7.22
		64%	47.42	5118	1.32	15.23	4251	722.02	7.09
		66%	47.37	5290	1.37	16.09	4313	762.38	6.94
		68%	47.35	5504	1.42	16.90	4392	800.10	6.88
		70%	47.31	5737	1.48	18.02	4478	852.56	6.73
		76%	47.21	6472	1.68	21.71	4727	1025.02	6.31
		80%	47.14	6986	1.81	24.34	4887	1147.41	6.09
		86%	47.09	7764	2.02	28.69	5121	1351.05	5.75
		90%	47.03	8202	2.14	31.60	5274	1485.92	5.52
		100%	46.81	9749	2.56	42.50	5700	1989.62	4.90
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
