Description
Specifications

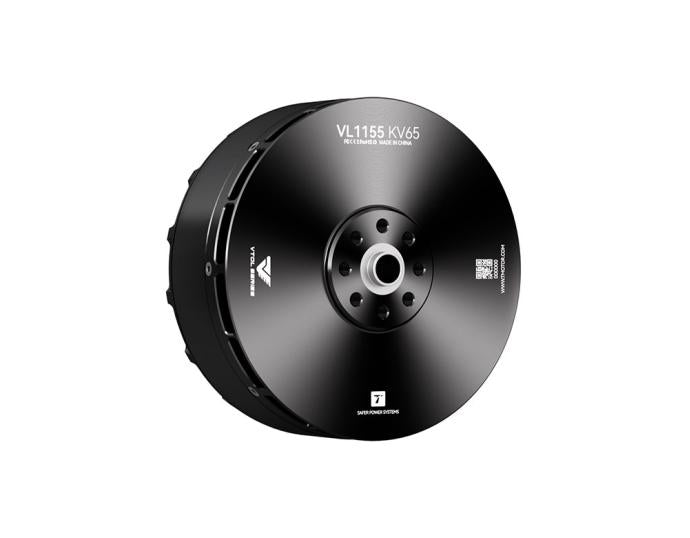

| Model No. | VL1155 KV65 |
|---|---|
| Magnet Level | 180℃ |
| Motor Size | Φ120.5*60.9mm |
| Lead Cable | Enameled Wire 150mm |
| Stator | 150°C High Temperature-Resisting Coatings |
| Copper Wire | 200℃ |
| Configuration | 36N40P |
| Coil Insulation Test | 1000V/5s |
| Shaft Diameter | IN: 15OUT: 12 |
| Rotor Dynamic BalanceStandard | ≤20mg |
| Bearing | Imported 6002 |
| IP | IPX5 |
| CentrifugalCooling Design | YES |
| Package Size | 282*172*80mm |
