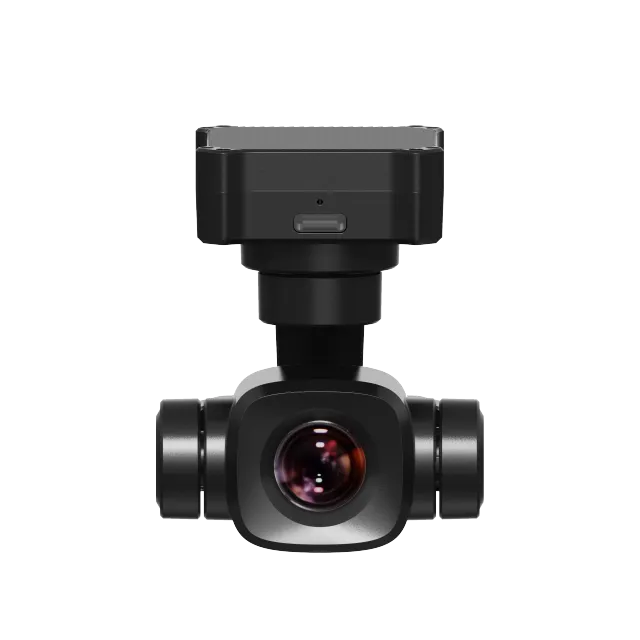

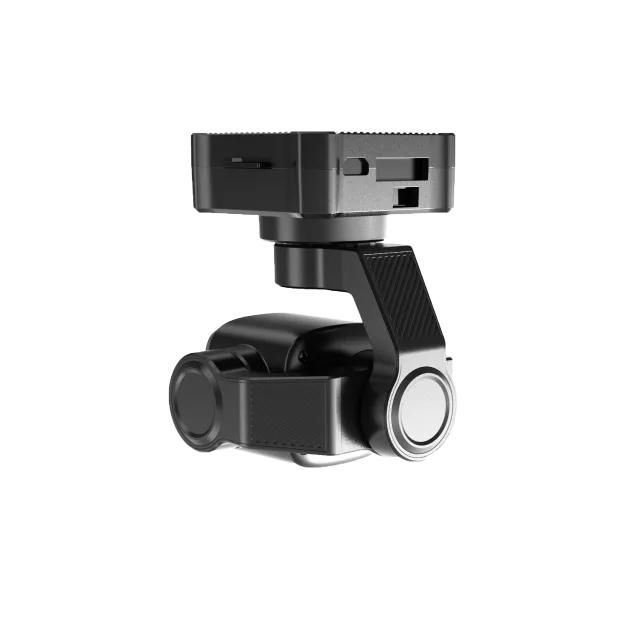

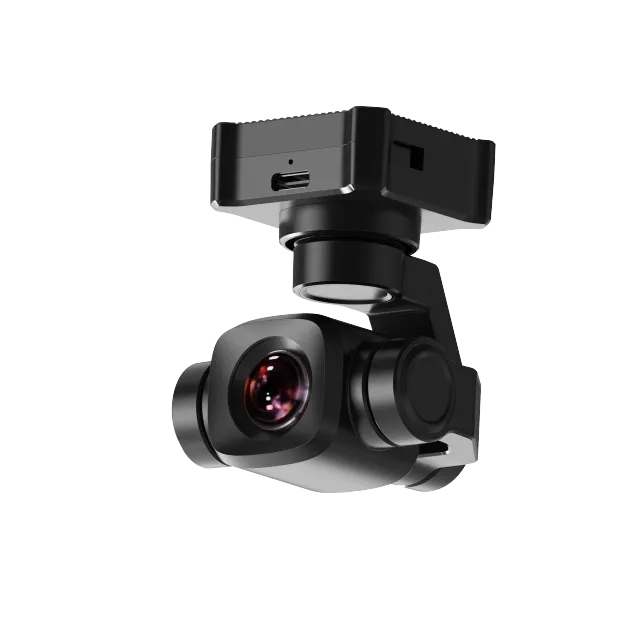

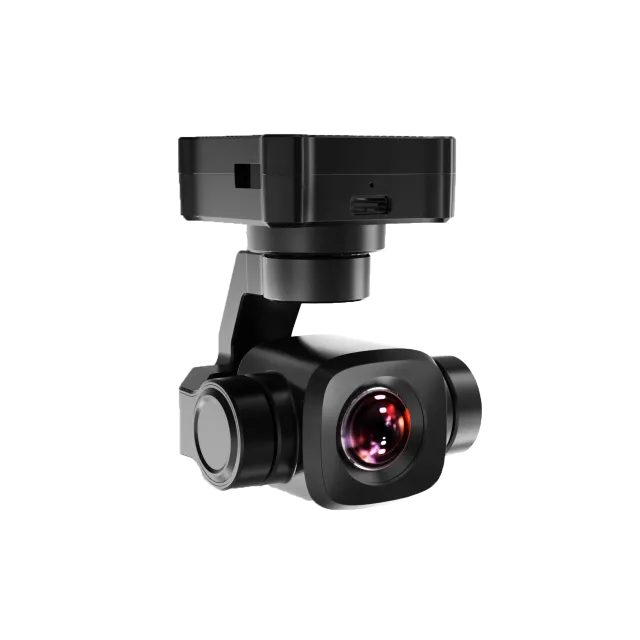

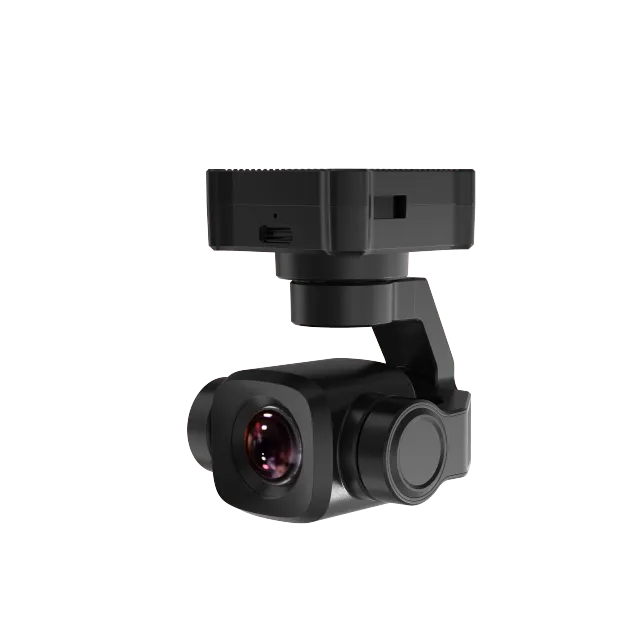

SIYI A8 mini Gimbal camera

4K 8MP Ultra HD 6X Digital Zoom Gimbal Camera with 1/1.7" Sony Sensor AI Smart Identify and Tracking HDR Starlight Night Vision Mini 3-Axis Stabilizer 95g Lightweight 55x55x70mm for UAV UGV USV RC Planes and FPV Drones

AI Smart Identify Tracking
1/1.7 Inch Sony CMOS
4K Ultra HD Photo & Video Recording
6X Digital Zoom

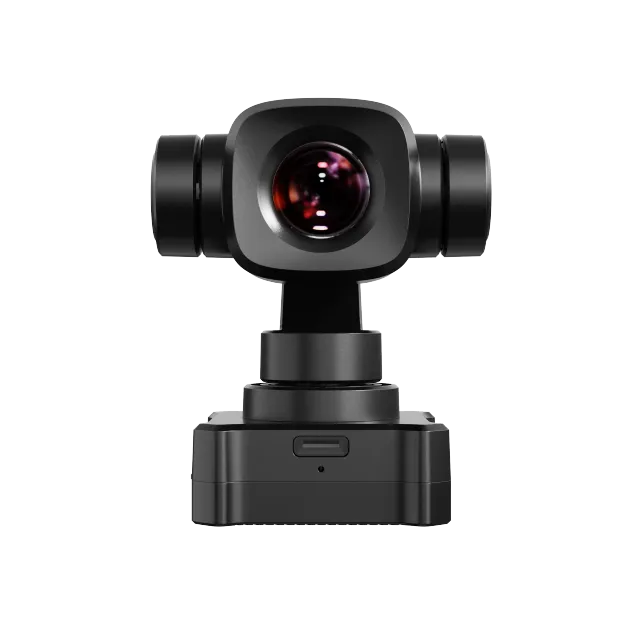

Upside Down Mode
Starlight Night Vision Camera

SPECIFICATION

Overall

Model: A8 mini

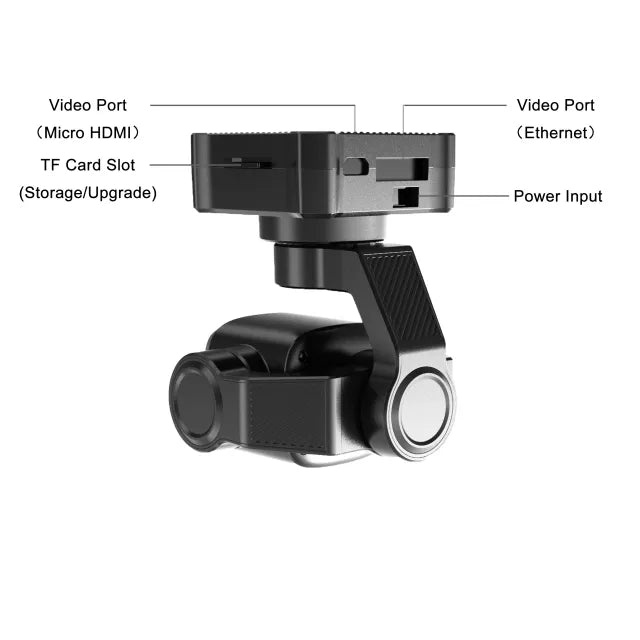

Video Output Port: Ethernet, HDMI, CVBS (AV)

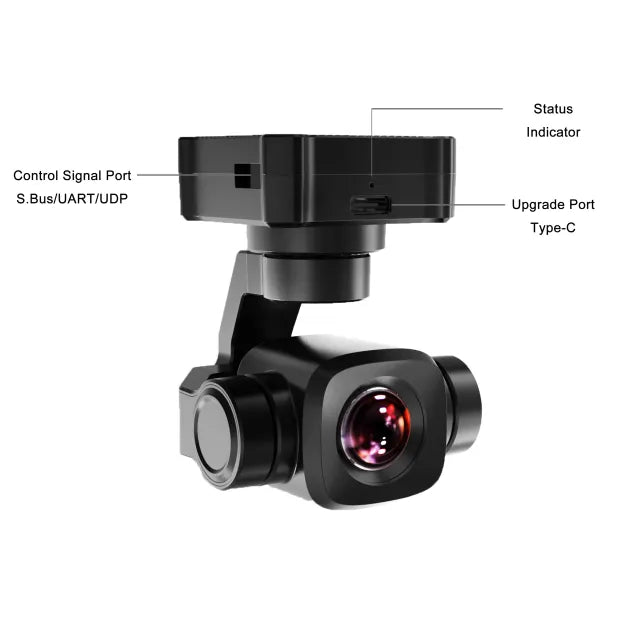

Control Signal Input Port: S.Bus, UART, Ethernet UDP
Control Signal Output Port: S.Bus
Working Voltage: 11 ~ 25.2 V *Early manufacturing lots of A8 mini may not support 25.2 V, please be careful
Power Consumption:
- Average 5 W
- Summit 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 55*55*70 mm
Weight: 95 g

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Rotatable Roll Angle: -30° ~ +30°

Camera
Lens: Fixed Focal Length, 6X Digital
Equivalent Focal Length: 21 mm
Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
Aperture: F2.8
FOV: Horizontal 81°
TF Recording Resolution:
- 4K (4096 x 2160) @ 25 fps
- 2K (2560 x 1440) @ 30 fps
- 1080p (1920 x 1080) @ 30 fps
- 720p (1280 x 720) @ 30 fps

Supported File System: FAT32
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10, max 128 GB
Still Photogaraphy Mode: Single
White Balance: Auto
