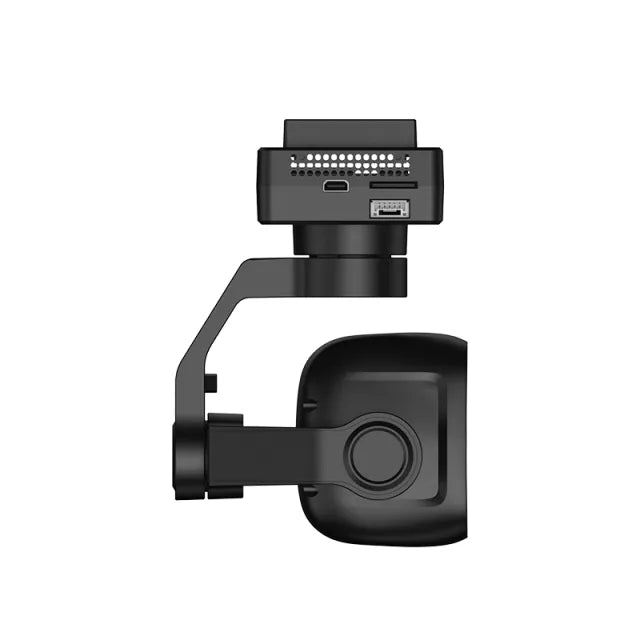

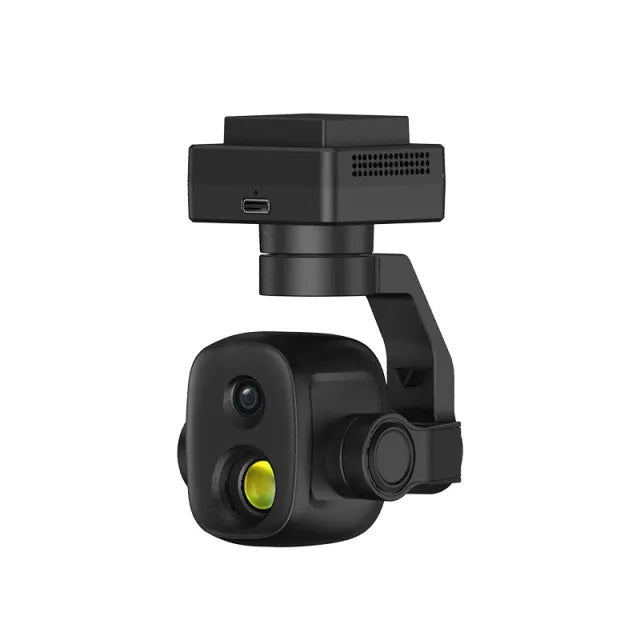

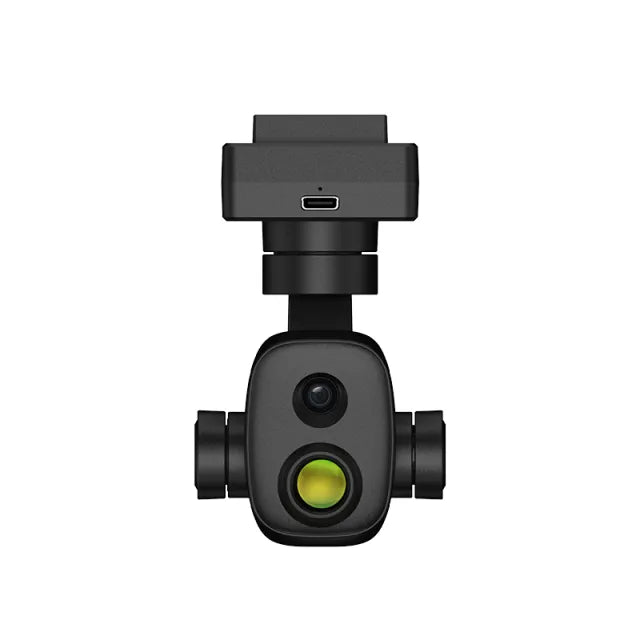

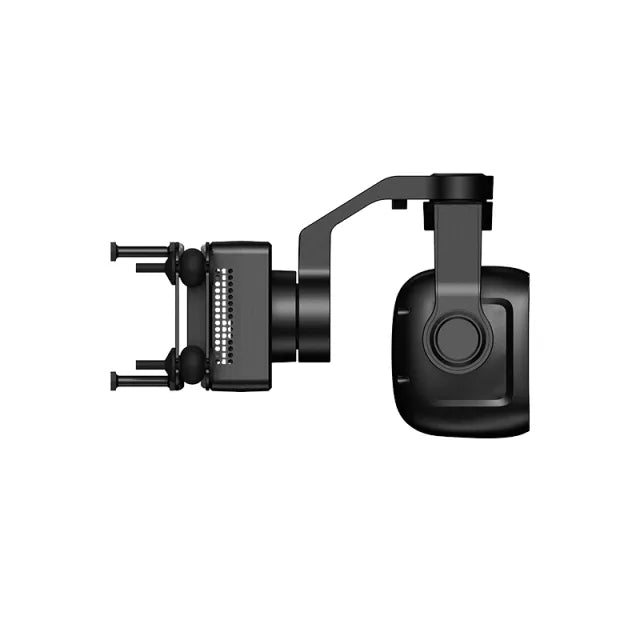

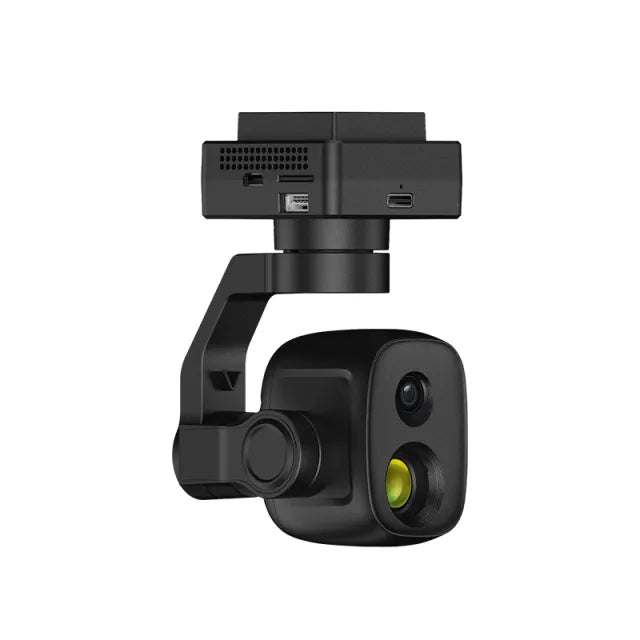

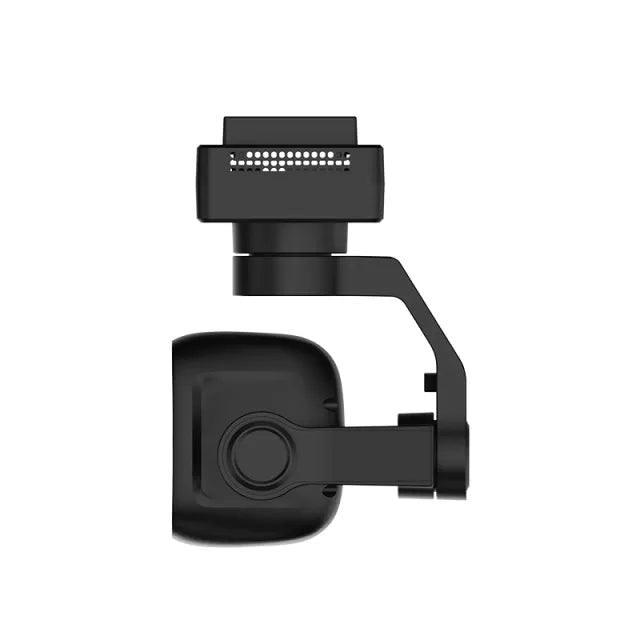

SIYI ZT6 Dual Sensor Gimbal Camera (8Mp 4K and 640x512 Thermal)

€2,600.00

SKU: SZT6Categories: Cameras & gimbals
Description

SIYI ZT6 Dual Sensor Mini Optical Pod with 4K 8MP 6x Digital Zoom Camera and 640x512 Thermal Imaging



Video Output Port

Ethernet

CVBS  (analog)

Micro-HDMI

Control Signal Input Port

S.Bus

UART

Ethernet (UDP / TCP)

Control Signal Output Port

S.Bus

High Accuracy 3 Axis Stabilization

Yaw, Pitch, Roll

Working Voltage

11 ~ 25.2 V

Power Consumption

Average 6.5 W

Peak15 W

Waterproof Level

IP53

Working Temperature

-10 ~ +50 ℃

Dimensions

73.5 x 75 x 131.5 mm

Weight

Excluding Anti-Vibration Board: 177 g

Including Anti-Vibration Board: 197 g

Gimbal

Angular Vibration Range

±0.01°

Controllable Pitch Angle

-90° ~ +25°

Controllable Yaw Angle

-270° ~ +270°

Rotatable Roll Angle

-45° ~ +45°

Optical Camera

Lens

Fixed Focal Length

6x Digital Zoom

Equivalent Focal Length

20 mm

Image Sensor

Sony 1/2.7 Inch CMOS

8 MP Effective Resolution

Aperture

F2.8

FOV

Diagonal 93°

Horizontal 84.5°

Video Recording Resolution

4K (3840 x 2160) @ 30 fps

2K (2560 x 1440) @ 30 fps

1080p (1920 x 1080) @ 30 fps

720p (1280 x 720) @ 30 fps

Still Photo Resolution

4K (3840 x 2160)

Thermal Imaging Camera

Thermal Sensor

Uncooled VOx Microbolometer

Resolution

640 x 512

Zoom

2X Digital

Lens

Focal Length: 13 mm

Aperture: F1.0

Fixed Focus

Athermalization

Wavelength Range

8 ~ 14 um

Temperature Measuring Range

High Gain: -20 ~ +150℃

Low Gain: 50 ~ +550℃

Temperature Measuring Accuracy

±2℃ (-20 ~ +150℃)

±5℃ (50 ~ +550℃)

Temperature Measuring Mode

Point Anywhere Measurement

Full Image Measurement

Selected Box Measurement

General Camera Specs

Video Storage Bitrate

15 Mbps (H.265 Codec)

File Storage Format

FAT32, ExFAT

Image Format

JPG

Video Format

MP4

Supported MicroSD Cards

MicroSD Class10, Max 256 GB

Still Photography Mode

Single

White Balance

Auto
