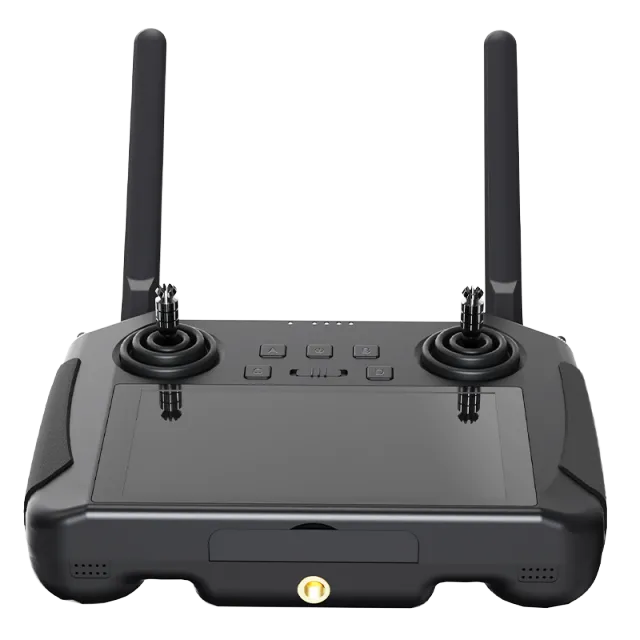

SIYI MK15 Mini HD Remote controller

Model: MK15
Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 13 physical channels, 16 communication channels

Compatible Flight Controllers:
- All CubePilot modules
- BOYING Paladin V2
- JIYI K++ V2 / K3A Pro
- VK V7AG
- Pixhawk / APM based flight controllers

Compatible Android GCS (standard RTSP video stream):
- QGround Control
- JIYI IFLY / Agri-Assistant
- BOYING Agriculture
- VK V7 Pro

Compatible Windows GCS (standard RTSP video stream):
- Mission Planner

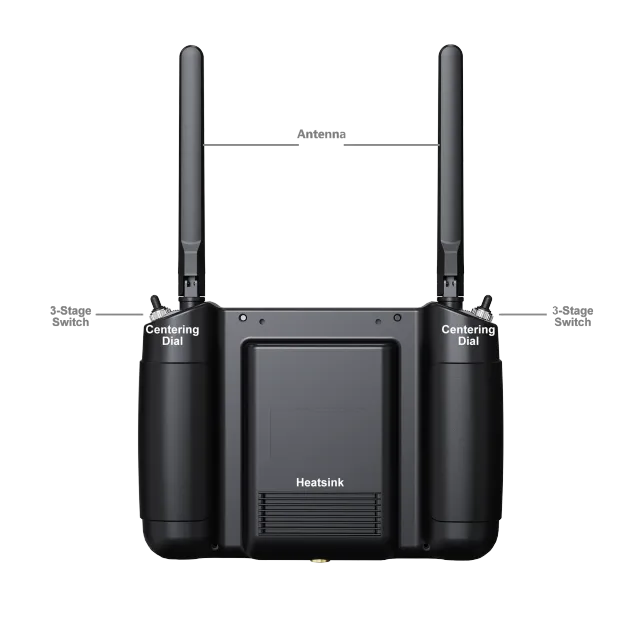

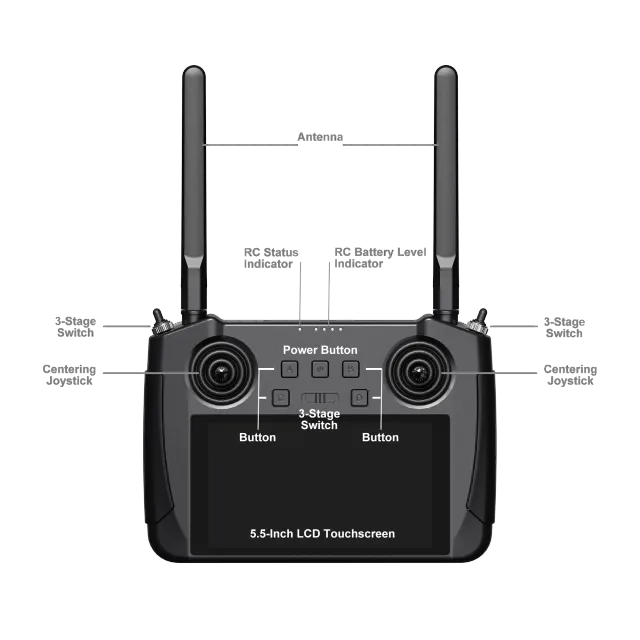

Remote Controller

Monitor: 5.5-inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 2 G RAM & 16 G ROM
Dimension (antenna overlapped): 189 x 138 x 41 mm
Weight: 850 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Battery Life: 15 hours
Interface & Ports:
- Charging: Type-C
- Firmware Upgrade: Bottom DATA (4-Pin)
- 4G/LTE Network: SIM Card Slot
- External Storage: TF Card Slot
- Tripod Connect: 1/4-inch Screw Hole
- Video Output: Standard HDMI
- External RTK: Top DATA (4-Pin)
- Data Transfer: USB-A
Waterproof Level: IP53
Working Temperature: -10 to 55℃

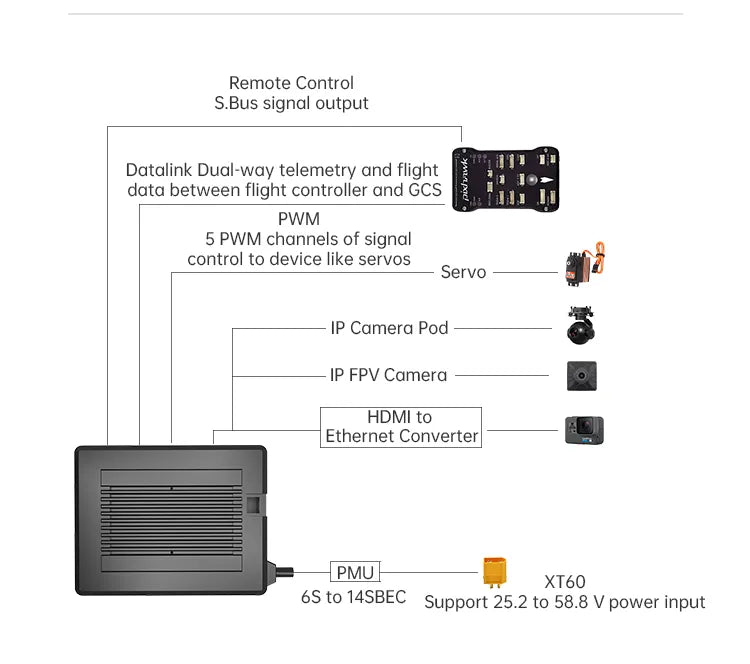

Air Unit

Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded): 70 x 55 x 16 mm
Weight (antenna excluded): 100 g
Antenna Gain (standard omni): 5 dBi
Power Input: 14.8 to 58.8 V (4S to 14S)
Working Temperature: -10 to 55℃
