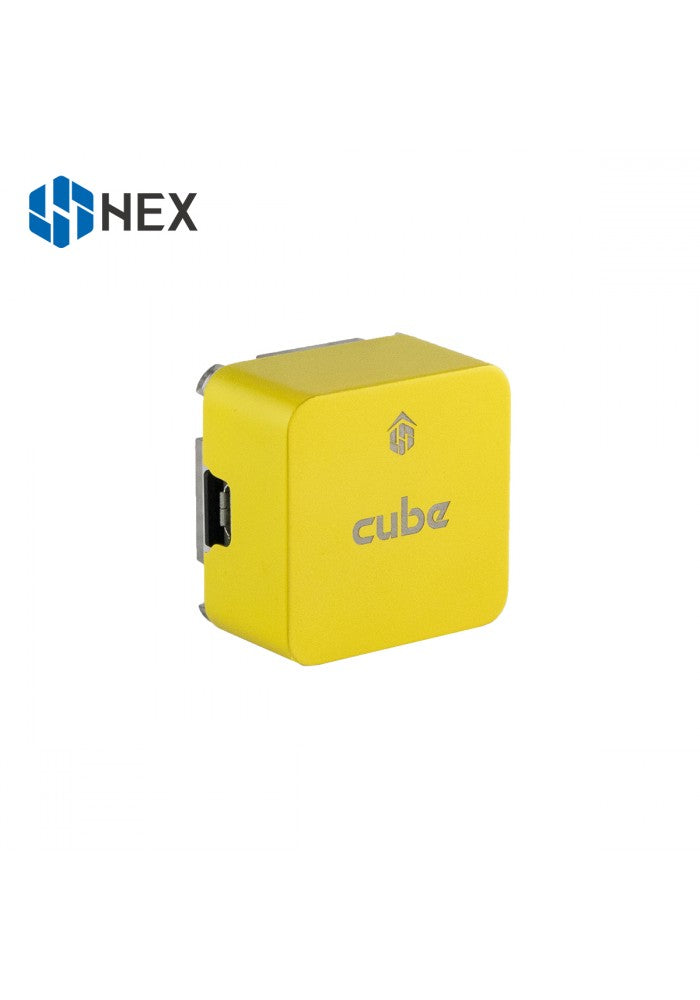

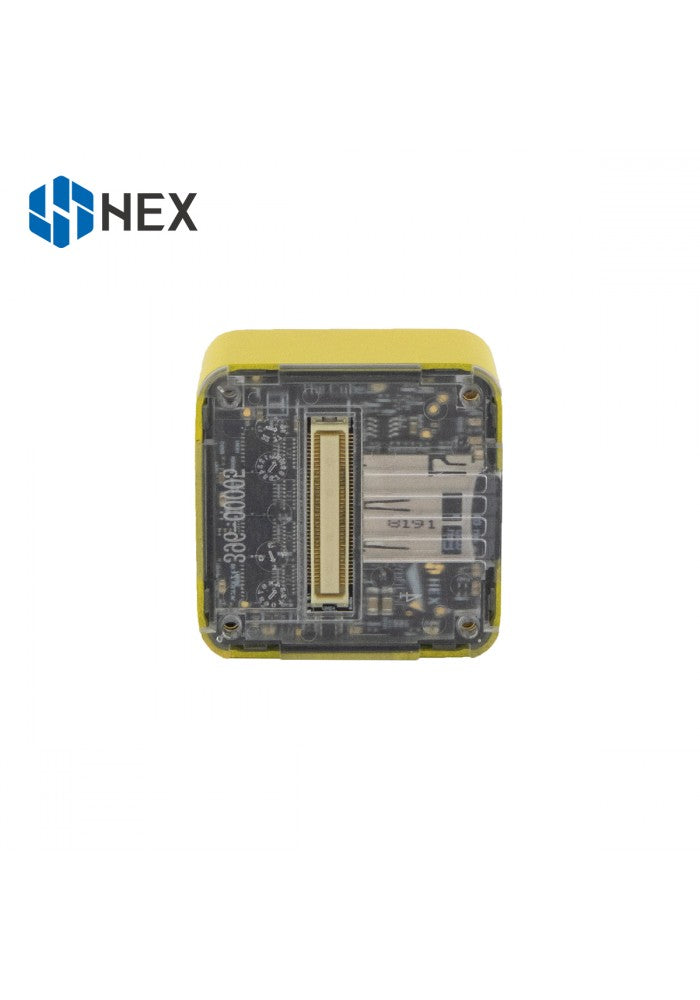

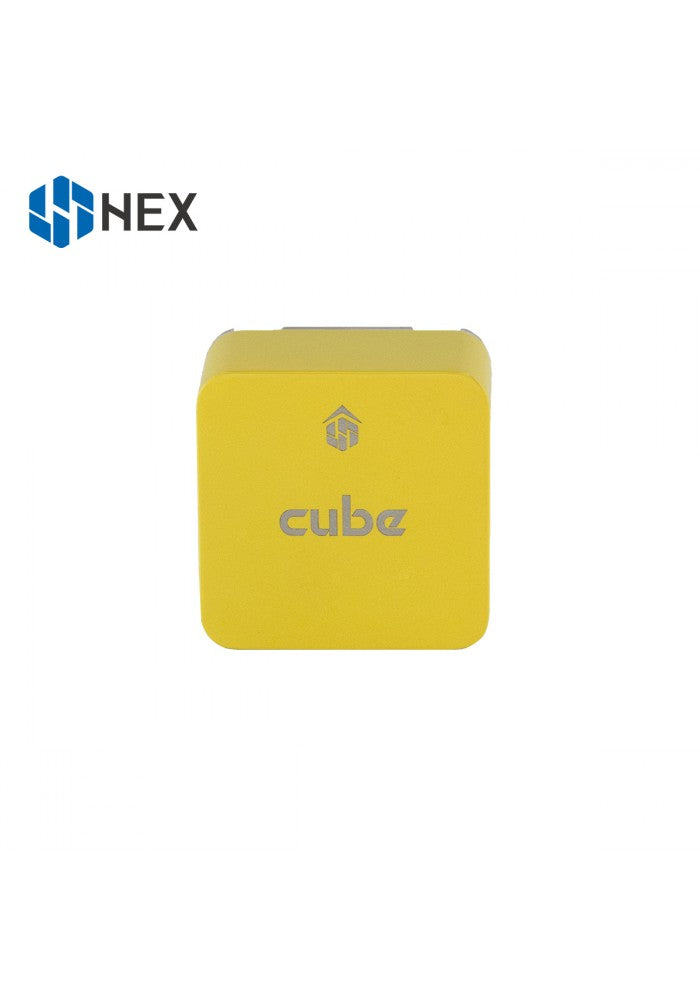

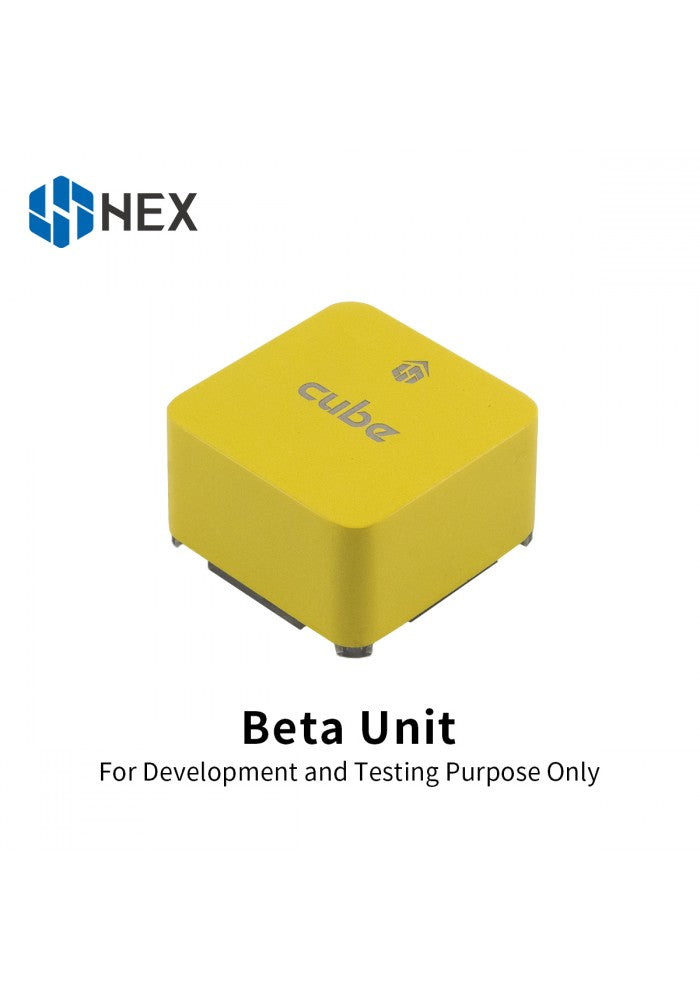

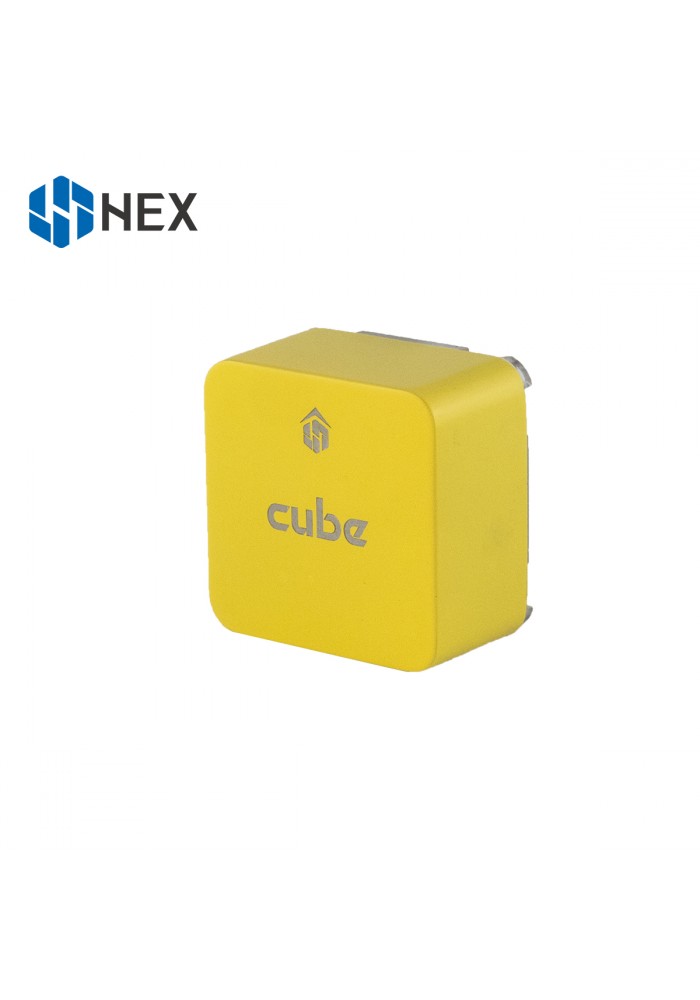

The Cube Yellow


SKU: HX4-06068Categories: Flight control & GPS

Cube Yellow target to education, drones lovers and professional cost-effective flight control hardware providers.
The new generation of more powerful F7 processor, stronger performance, faster, more secure, built-in
triple redundant sensor, temperature control shock absorption IUM.
With the help of flight software, Cube Yellow can completely fly any remotely controlled aircraft, helicopter
or multi-rotor vehicle and become a more professional uav platform.

Yellow Cube - New development with high performance Cortex®-M7

  • Pixhawk 2.1 Serie
  • High Performance H7 Processor (STM32F777VIT6)
    32 bit | 216MHz | 512Kbytes RAM | Cortex®-M7
  • 3 IMU's integrated
    Barometer | Magnetometer | Accelerometer | Gyroscope
  • several interfaces to DF17 Connector
    CAN | I2C | Serial | SWD | I/O
