Description

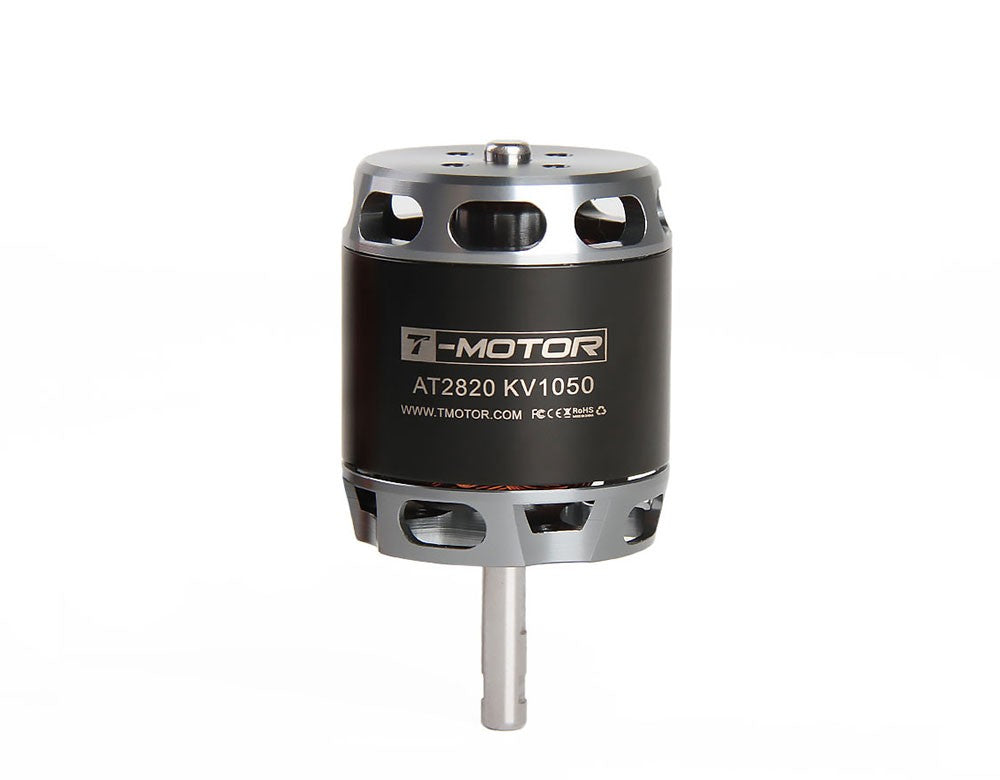

About T-MOTOR AT2820 3D F3A Long Shaft Fixed Wing Uav Motor
T-Motor AT2820 is specially designed for1.4-1.6kg flyingweight 3D ,F3A and UAV fixed-wing aircraft, with biggest thrust of 3.1kg.
It can support 3-4s lipos with a maximum power of 1000w. Recommend with T-Motor T12*6/T13*6.5propeller and T-Motor AT55A-75A ESC
AT2820 Highlights:
1. Robust body &release freely
2. Military-grade wire & more durable
3. Anti-stripping design safety assurance
4. High torque and more durable
Packing List Includes:
1x T-MOTOR AT2820 Motor
1x Hardware pack
Matching Guide:
AT55A ESC / AT75A ESC
T12*6 Propeller / T13*6.5 Propeller
Specifications
| Test Item | Long Shaft KV880 |
|---|---|
| Weight (Incl. Cable) | 139g |
| Motor Dimensions | Φ35.2*63.5mm |
| Internal Resistance | 39mΩ |
| Lead | Enameled Wire100mm |
| Configuration | 12N14P |
| Shaft Diameter | IN：5mmOUT：5mm |
| Rated Voltage(Lipo) | 3-4S |
| Idle Current(10V) | 1.6A |
| Peak Current(180s) | 45A |
| Max Power (180S) | 700W |
| Recommendation | / |
