Description

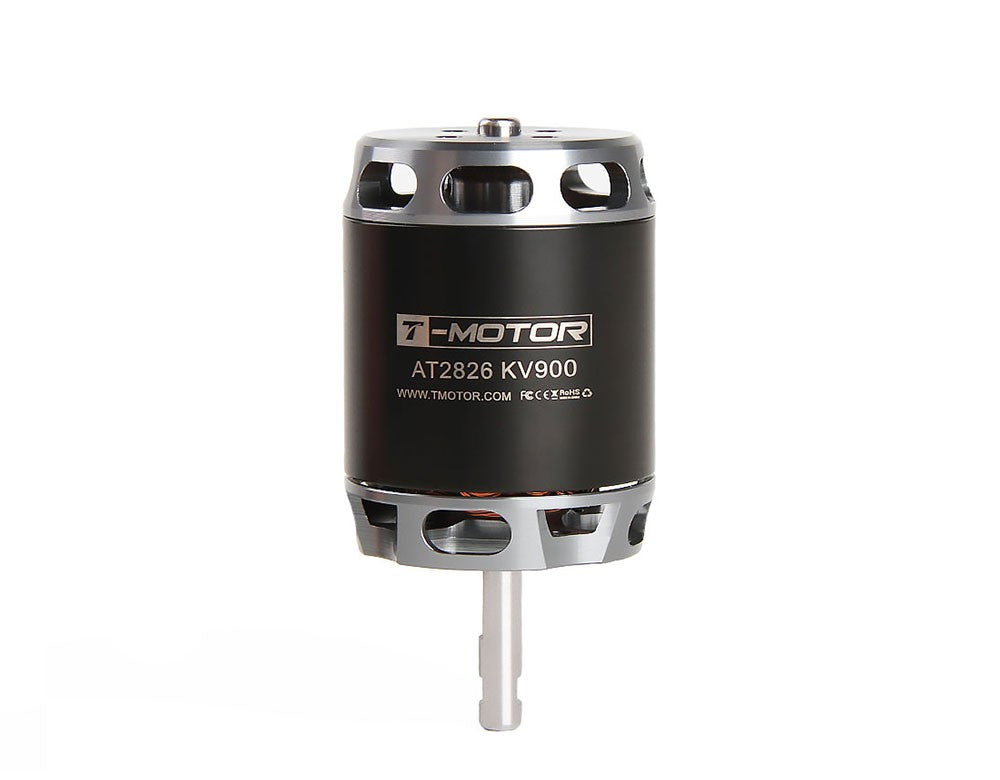

About T-MOTOR AT2826 3D F3A Fixed Wing Long Shaft Motor
T-Motor AT2826 is specially designed for sailplane and aircraft weight of 1.4-2.2kg. The motor weight is 175g and the maximum thrust is 3.4kg.
It can supports 3-4 lipos with a maximum power of 1100w. Recommend with T-Motor T13*6.5propeller and T-Motor AT75A ESC
AT2826 Highlights:
1. Robust body &release freely
2. Military-grade wire & more durable
3. Anti-stripping design safety assurance
4. High torque and more durable
Packing List Includes:
1x T-MOTOR AT2826 Motor
1x Hardware pack
Matching Guide:
AT75A ESC
T13*6.5 Propeller
Specifications
| Test Item | Long ShaftKV900 |
|---|---|
| Weight (Incl. Cable) | 175g |
| Motor Dimensions | Φ35.2*69.5mm |
| Internal Resistance | 24mΩ |
| Lead | Enameled Wire100mm |
| Configuration | 12N14P |
| Shaft Diameter | IN：5mmOUT：5mm |
| Rated Voltage(Lipo) | 3-4S |
| Idle Current(10V) | 2.2A |
| Peak Current(180s) | 57A |
| Max Power (180S) | 820W |
| Recommendation | / |
