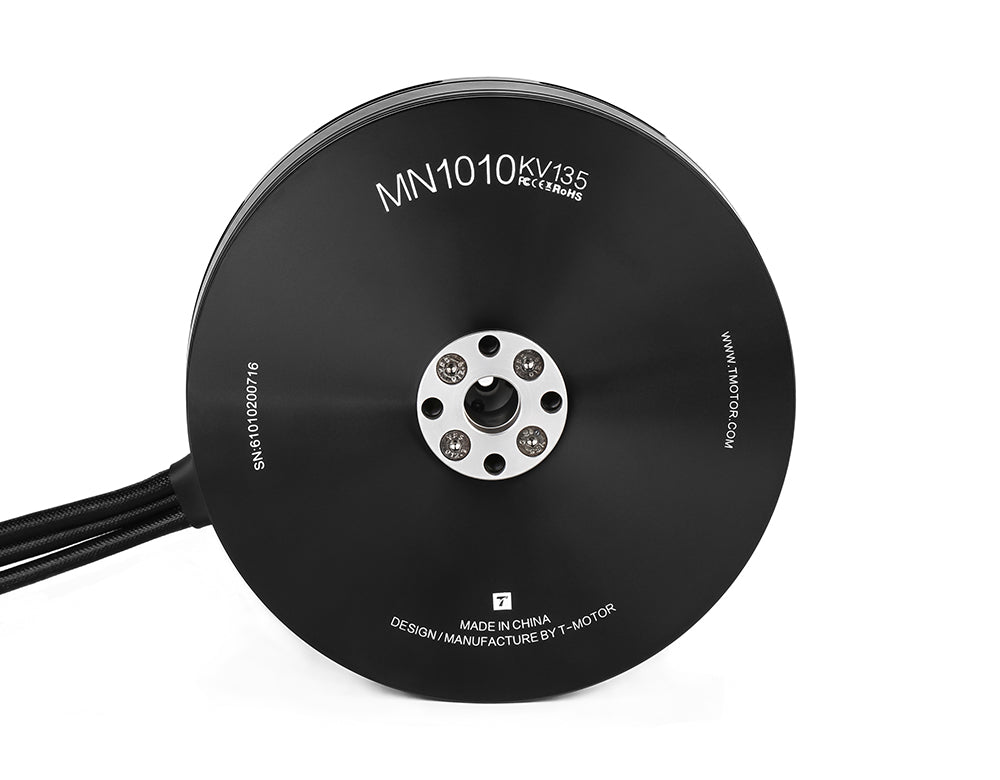

About T-MOTOR Navigator MN1010 Multirotor Fixed Wing UAV Motor KV135
T-MOTOR MN1010 Navigator Type UAV Motor: Lightweight and powerful with 21.5kg thrust at 100% throttle, perfect for heavy payloads and long flights. Features excellent cooling, high-temperature resistance, and anti-overload protection. Its built-in fan array ensures reliable performance even in hot conditions. Ideal for mapping, inspection, security, and small cargo delivery. Weighs just 0.645kg (incl. cables), offering remarkable efficiency and durability.
Navigator MN1010 Highlights:
- Max thrust: 21.5kg
- MTBF: About 1000hours
Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion; Heavy Payload Long Flight Time
"Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.
Application Areas：
Cargo Drones, Tethered, Mapping and Inspection.
Packing List Includes:
1x T-MOTOR MN1010 Motor KV135 ( kv which you choose)
1x Hardware pack
Matching Guide:
T-MOTOR G36*11.5 Prop / G32*11 Prop / ALPHA 120A 12S ESC
Specifications
| Motor Size | Φ118*34mm |
|---|---|
| Copper Wire | 220℃ high temperature resistance: Level C |
| Stator | Imported silicon steel sheet; Anti-rust treatment;150°Chigh temperature-resisting coatings |
| Coil Insulation Test | 1000V |
| Configuration | 36N42P |
| Centrifugal Cooling Design | YES |
| Shaft Diameter | IN：15mm |
| Rotor Dynamic Balance Standard | ≤5Mg |
| Bearing | Imported 6902ZZ |
| Motor Dynamic Balance Standard | ≤10Mg |
| Magnet Level | N45SH |
| KV | 135 |
| Rated Voltage ( Lipo ) | 6-12S |
| Idle Current（10V） | 2A |
| Propeller Recommendation | 30-32寸 |
| Peak Current（180s） | 104A |
| Motor Weight (indl. Cable) | 645g |
| Max.Power（180s） | 4930W |
| Package Weight | 1028g |
| Internal Resistance | 25mΩ |
