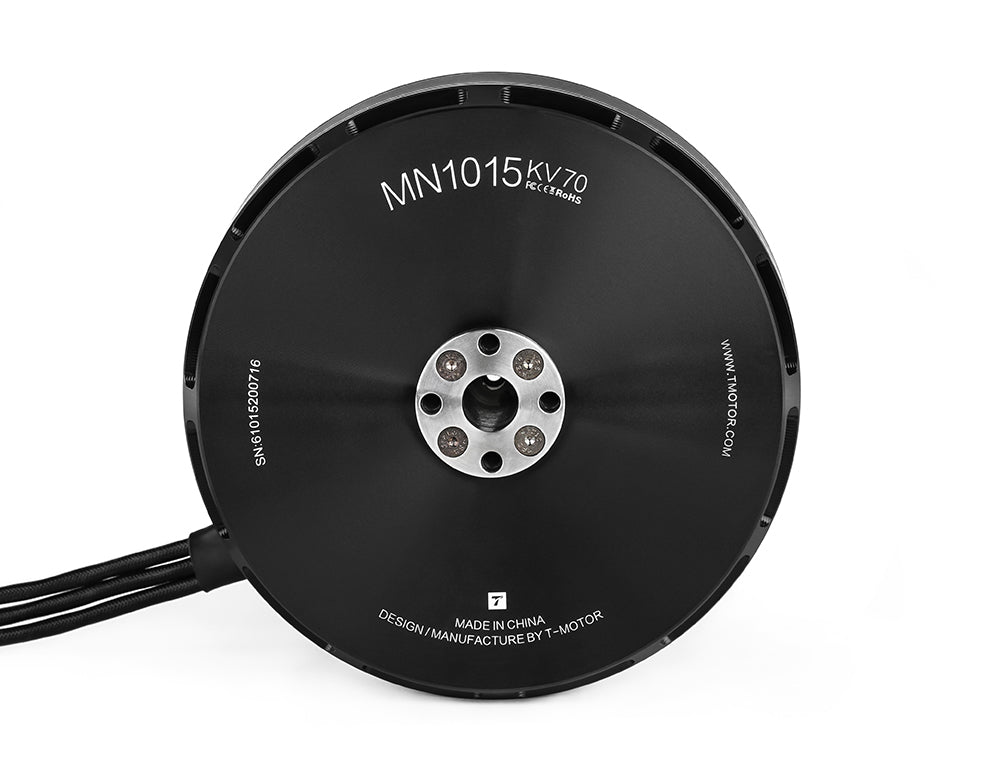

About T-MOTOR Navigator MN1015 Multirotor Fixed Wing UAV Motor KV70
T-Motor Navigator MN1015: Industrial-grade motor designed for cargo drones, mapping, and inspection. With a maximum thrust of 27.4kg, it excels in demanding conditions, offering outstanding cooling performance and resistance to dust, water, and corrosion. Ideal for long flights with heavy payloads, it features a durable design with a 1000-hour lifespan. The integrated fan array ensures reliable operation in hot temperatures, while the recommended T-Motor G36*11.5" prop delivers optimal performance. Perfect for a wide range of applications, from mapping and inspection to small cargo delivery.
Navigator MN1015 Highlights:
- Max thrust: 27.4kg
- MTBF: About 1000hours
- Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion; Heavy Payload Long Flight Time
Application Areas：
Cargo Drones, Tethered, Mapping and Inspection.
Packing List Includes:
1x T-MOTOR MN1015 Motor KV70 ( kv which you choose)
1x Hardware pack
Matching Guide:
T-MOTOR G36*11.5 Prop
Specifications
| Motor Size | Φ121*43.5mm |
|---|---|
| Copper Wire | 220℃ high temperature resistance: Level C |
| Stator | Imported silicon steel sheet; Anti-rust treatment;150°Chigh temperature-resisting coatings |
| Coil Insulation Test | 1000V |
| Configuration | 36N42P |
| Centrifugal Cooling Design | YES |
| Shaft Diameter | IN：15mm |
| Rotor Dynamic Balance Standard | ≤5Mg |
| Bearing | Imported 6902ZZ |
| Motor Dynamic Balance Standard | ≤10Mg |
| Magnet Level | N45SH |
| KV | 70 |
| Rated Voltage ( Lipo ) | 12-24S |
| Idle Current（18V） | 1.35A |
| Propeller Recommendation | 34-36寸 |
| Peak Current（180s） | 66.5A |
| Motor Weight (indl. Cable) | 855g |
| Max.Power（180s） | 5800W |
| Package Weight | 1260g |
| Internal Resistance | 49mΩ |
