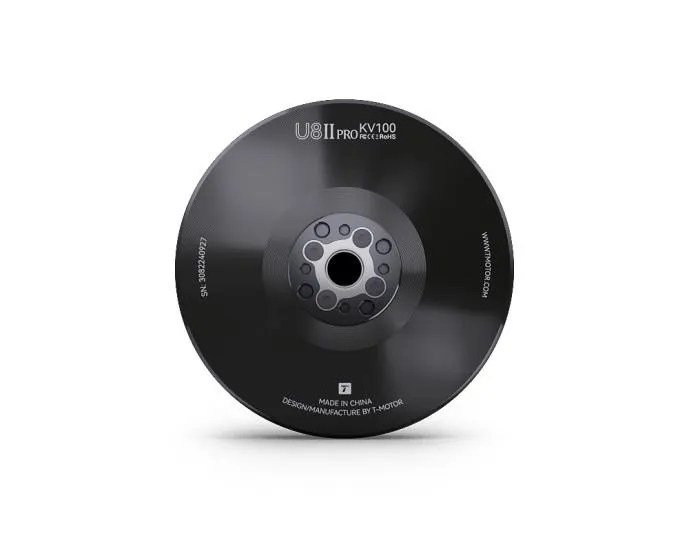

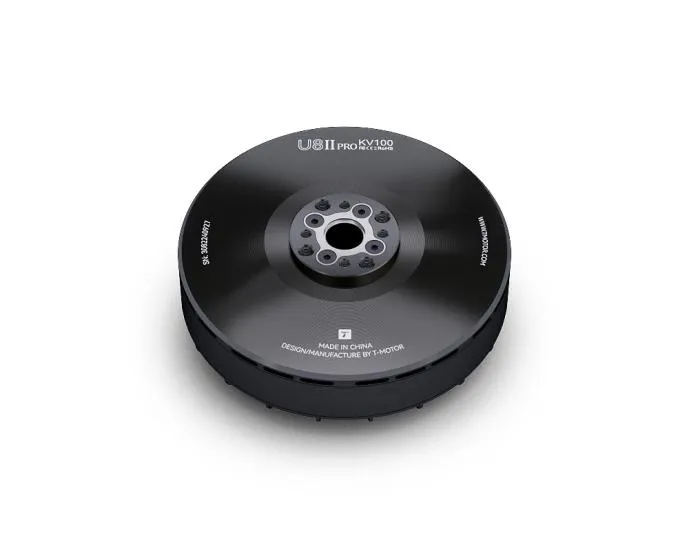

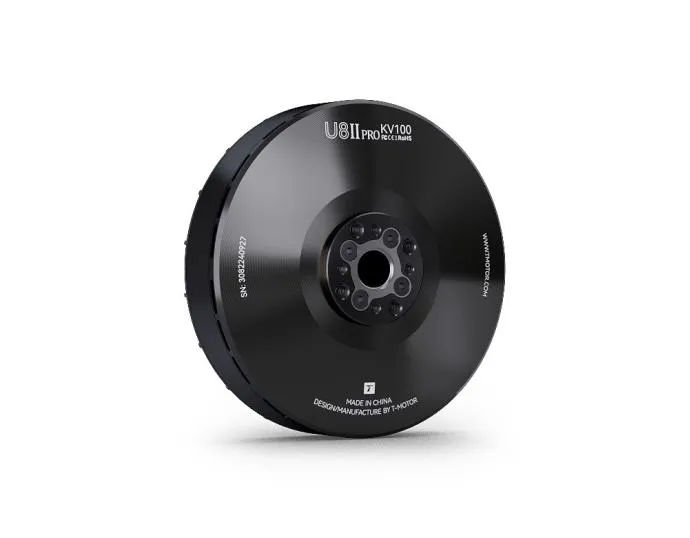

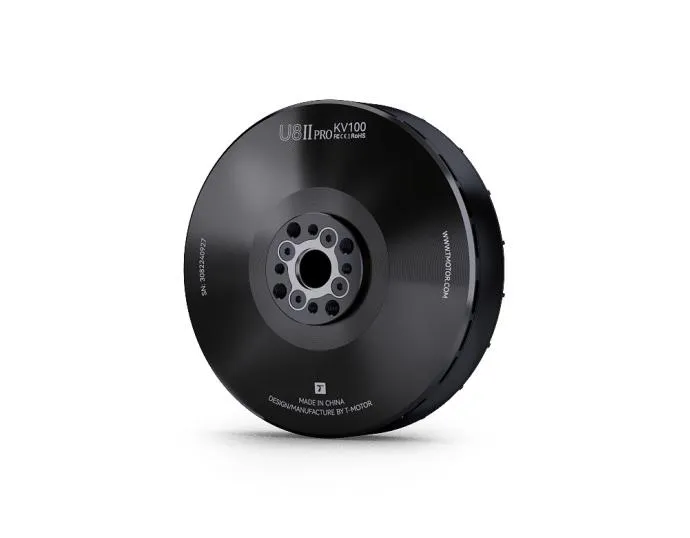

TMotor U8Ⅱ PRO Efficiency Type Multirotor UAV Motor KV100

About T-MOTOR U8Ⅱ Pro Power Efficiency Multirotor UAV Motor KV100

T-Motor U8 V2 Pro is a high-performance Multi-rotor brushless motor designed for outdoor aircraft, delivering up to 9.1kg thrust with a lifespan of 1,500 flights. Built with industrial-grade materials, it’s fireproof, dustproof, and waterproof for maximum durability. Its advanced design, featuring Japanese bearings and optimized magnetic circuits, ensures smoother, longer flights. With patented protection and self-cooling, it’s the ideal choice for reliable, efficient performance across various aircraft.

U8Ⅱ Pro Highlights:

1.Max. thrust ：9.1kg
MTBF：About 1000hours
Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings
Industrial grade, dust proof, water proof.
"U Efficiency" motors (from U-series) are aimed for high end UAVs requiring long endurance. This kind of UAVs are usually for surveillance, cruise, security and protection, surveying and mapping.
Lightweight design allows you to fly longer, Industrial-grade dustproof and waterproof and anti-aging, greatly extends the working life of the motor. Curved magnets with precise tolerance control and rational magnet space for optimal motor magnetic circuit help improve motor performance. The motor uses imported customized bearings to extend the service life of the motor and ensure smooth flight and longer flight time.

Technical Drawing

U8II PRO-draw.png

Specification

Motor Size	Φ87.3*29.55mm	Lead Cable	90mm
Stator	Anti-rust treatment; 180℃ high temperature-resisting coatings	Copper Wire	220℃ high temperature resistance
Configuration	36N42P	Coil Insulation Test	1000V/5s
Shaft Diameter	IN：12mm	Rotor Dynamic Balance Standard	≤15Mg
Bearing	Imported 6901ZZ	IP	IP56
Magnet Level	180℃ high temperature resistance	Packing Size	13011150.6mm

KV	100	Rated Voltage(Lipo)	12S(4.2V/pc) / 48-52V
Idle Current(24V)	1.0A	Internal Resistance	134-141mΩ
Peak Current(180s)	31A	Weight (Incl. Cable)	287g
Max Power (180S)	1450W	Package Weight	454g

Test Data Export to Excel

Type	Propeller	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
U8II Pro KV100	T-MOTO G27*8.8	40%	48	2038	0.61	3.47	1935	165	12.33	90℃
		45%	48	2542	0.76	4.68	2155	223	11.42
		50%	48	3000	0.90	5.95	2330	283	10.60
		55%	48	3458	1.03	7.24	2489	344	10.05
		60%	47	3956	1.17	8.72	2651	414	9.55
		65%	47	4491	1.33	10.43	2808	495	9.08
		70%	47	4888	1.44	11.87	2926	561	8.72
		75%	47	5442	1.61	13.90	3078	656	8.29
		80%	47	5958	1.77	16.05	3220	756	7.88
		90%	47	7052	2.09	20.75	3488	973	7.25
		100%	47	8442	2.51	27.64	3794	1289	6.55
	T-MOTOR G28*9.2	40%	47	2260	0.72	3.92	1900	186	12.15	104℃
		45%	47	2843	0.90	5.43	2120	257	11.05
		50%	47	3307	1.04	6.71	2277	317	10.43
		55%	47	3787	1.18	8.19	2434	387	9.79
		60%	47	4323	1.33	9.87	2586	466	9.28
		65%	47	4851	1.51	11.71	2729	551	8.81
		70%	47	5396	1.67	13.79	2863	647	8.35
		75%	47	5905	1.83	15.72	2991	736	8.02
		80%	47	6479	1.99	17.96	3120	840	7.71
		90%	47	7663	2.35	23.31	3367	1088	7.04
		100%	47	9122	2.81	31.11	3673	1450	6.29
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
