Description
Specifications

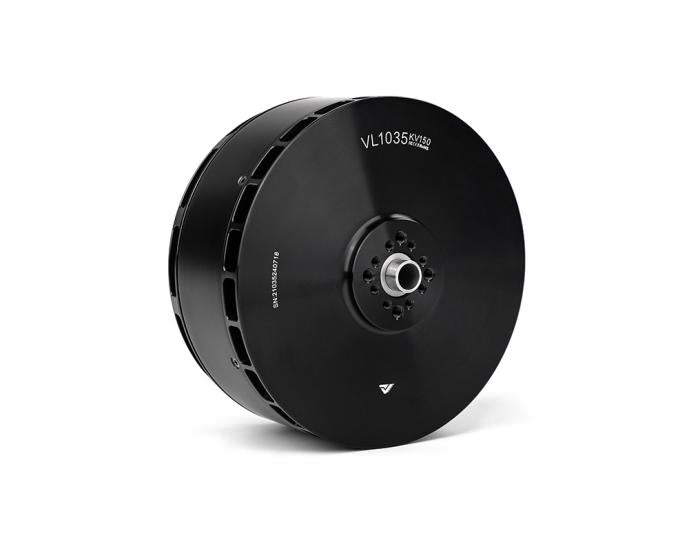

| Model No. | VL1035 |
|---|---|
| Magnet Level | 180℃ |
| Motor Size | Φ109.6*61mm |
| Lead Cable | Enameled wire 150mm |
| Stator | 150°C high temperature-resisting coatings |
| Copper Wire | 220℃ |
| Configuration | 24N28P |
| Coil Insulation Test | 1000V/5s |
| Shaft Diameter | IN: 12 OUT: 10 |
| Rotor Dynamic Balance Standard | ≤15mg |
| Bearing | Imported 6901 |
| IP | IPX5 |
| CentrifugalCooling Design | YES |
| Package Size | 190*140*80mm |
