Description
Specifications

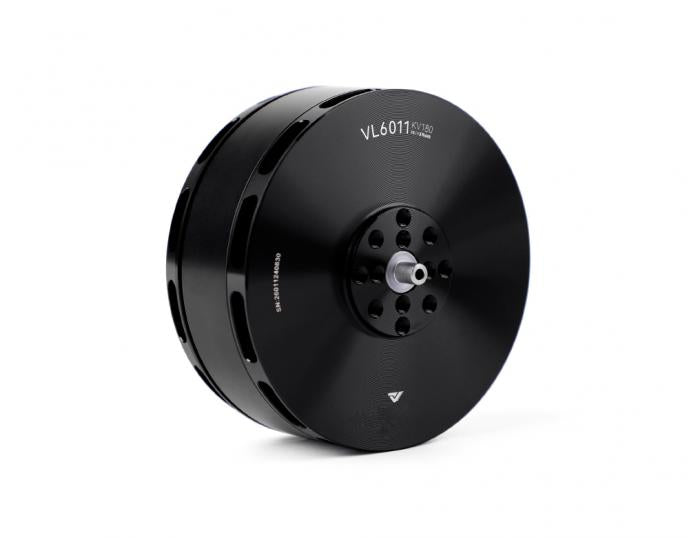

| Model No. | VL6011 |
|---|---|
| Magnet Level | 180℃ |
| Motor Size | Φ67.2*38.4mm |
| Lead Cable | Silicone wire16# 600mm |
| Stator | 150°C high temperature-resisting coatings |
| Copper Wire | 220℃ |
| Configuration | 24N28P |
| Coil Insulation Test | 1000V/5s |
| Shaft Diameter | IN: 6 OUT: 4 |
| Rotor Dynamic BalanceStandard | ≤10mg |
| Bearing | Imported 696 |
| IP | IPX5 |
| CentrifugalCooling Design | YES |
| Package Size | 126*103*51mm |
