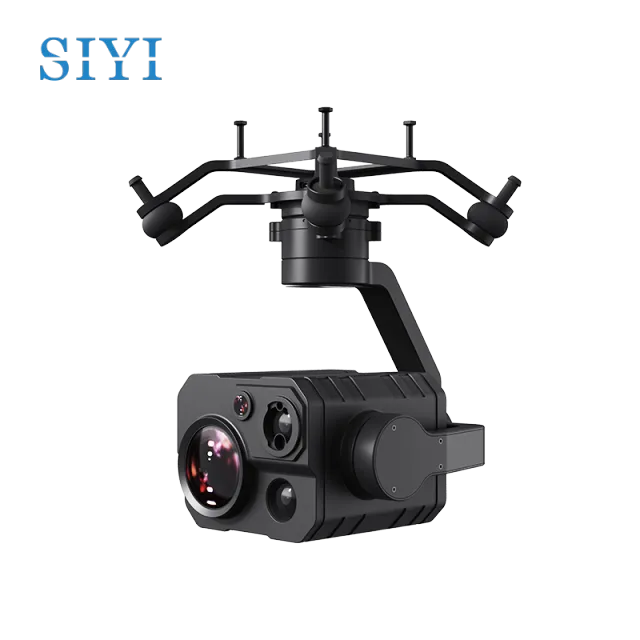

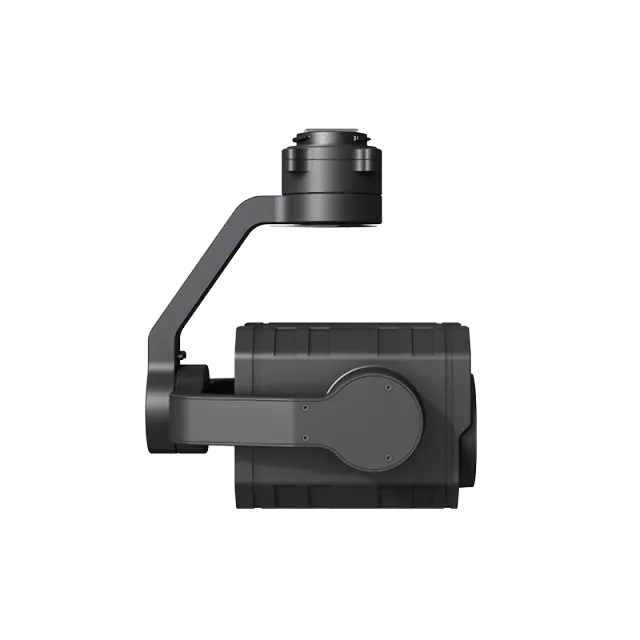

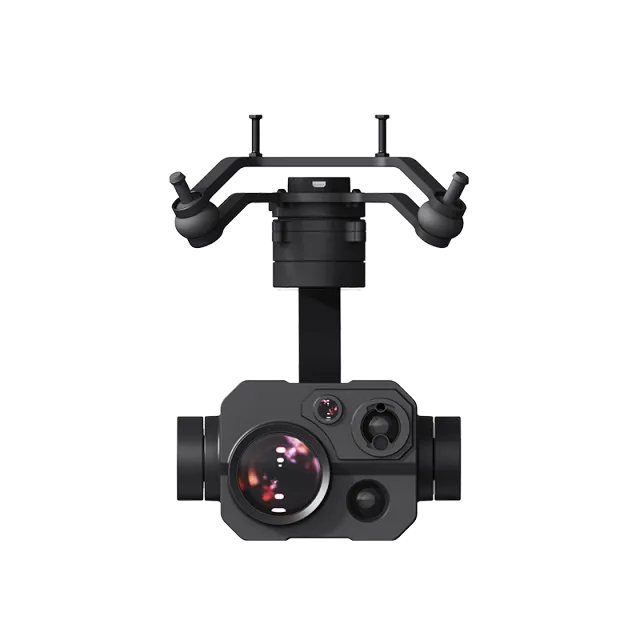

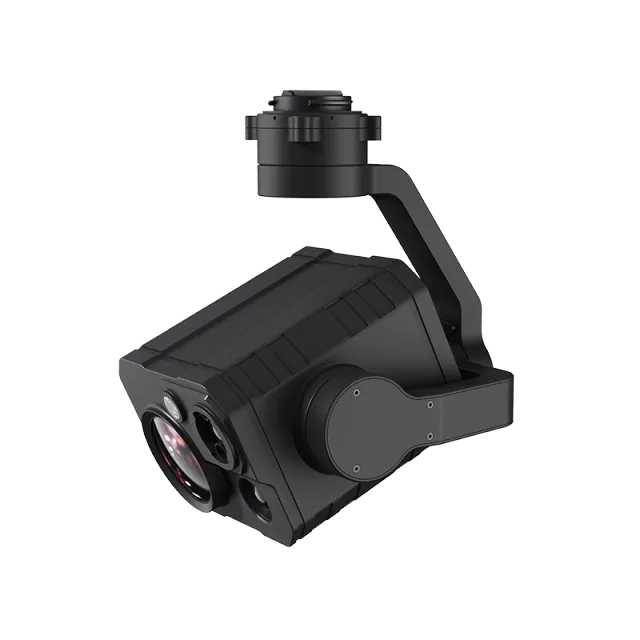

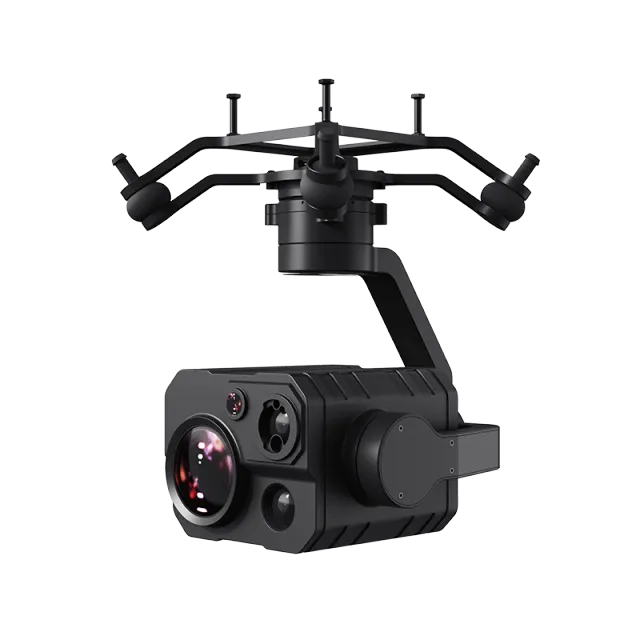

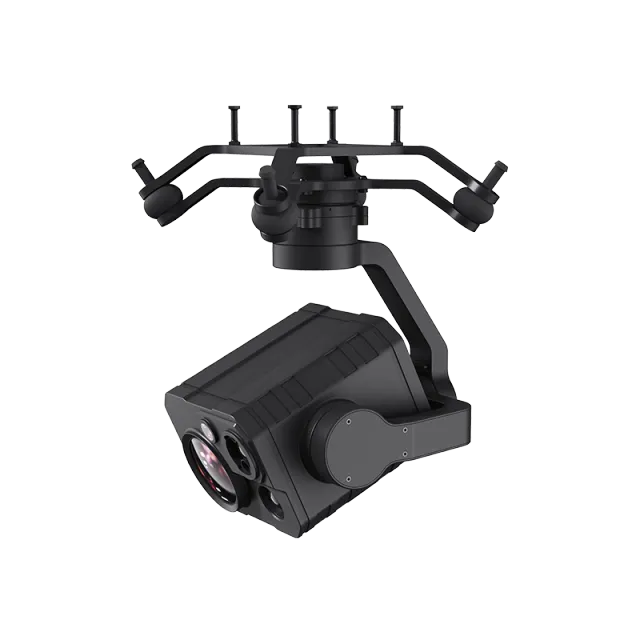

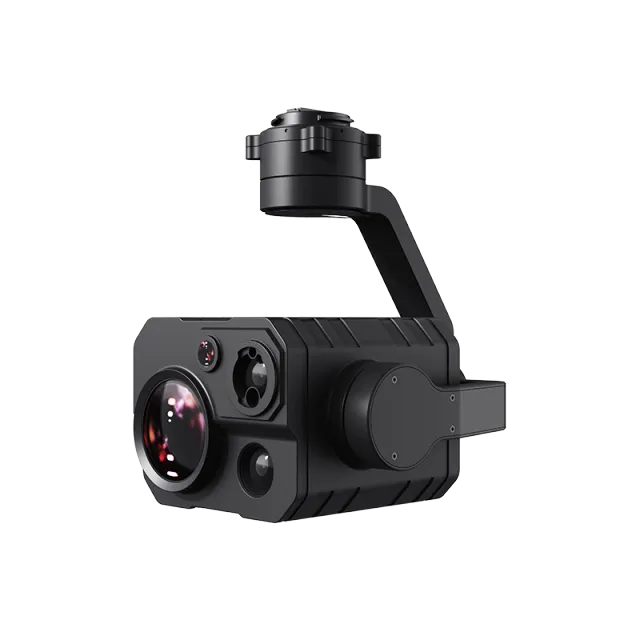

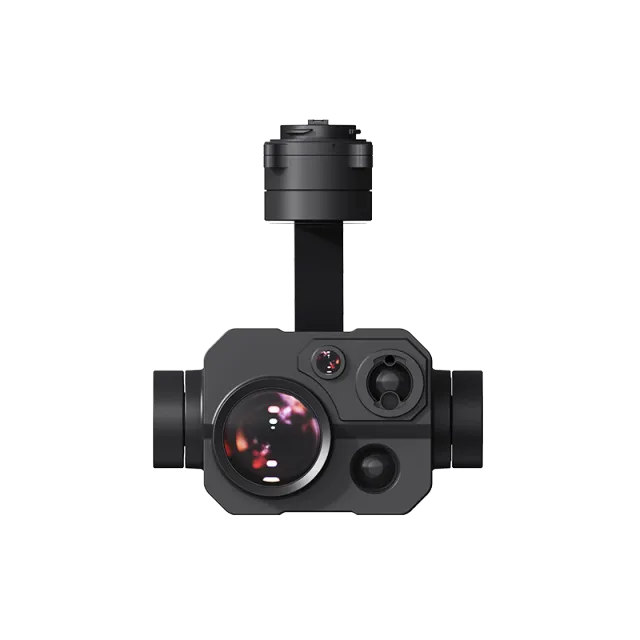

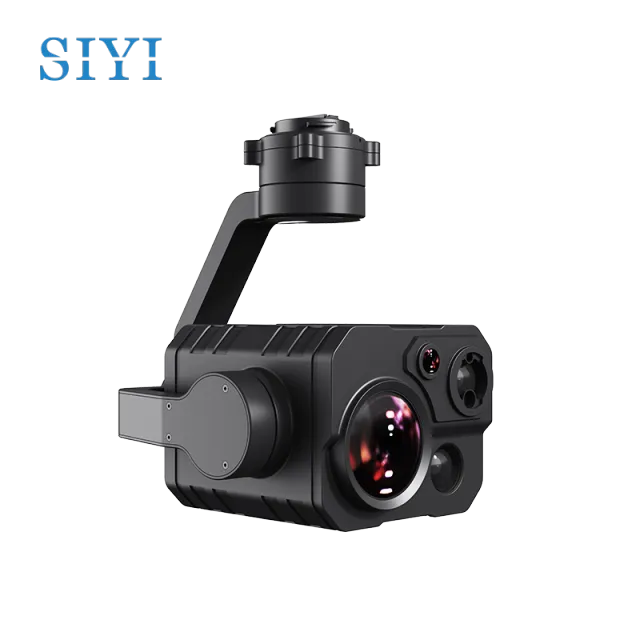

SIYI ZT30 Optical Pod
Four Sensors 4K 8MP 180X Hybrid 30X Optical Zoom Gimbal Camera 640 x 512 Thermal Imaging High Accuracy Laser Rangefinder 2K Wide Angle with AI Smart Tracking 3-Axis Stabilizer UAV UGV USV Pod Payload for Drone Surveillance Inspection
640 x 512 High-Resolution Thermal Imaging (Temperature Measuring)
4K 180X Hybrid Zoom, 30X Optical Zoom
2K Ultra-Wide Angle
1200-Meter Range Laser Rangefinder
AI Smart Identify and Tracking
Limitless Yaw, Quick Release

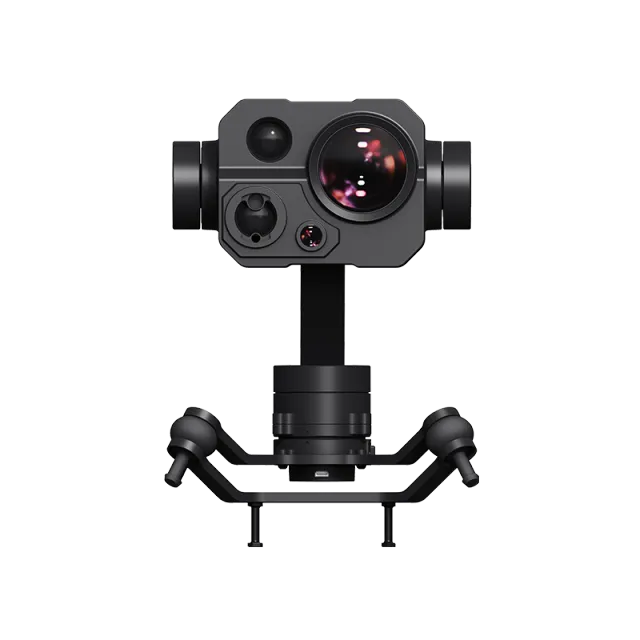

Upside Down Mode
Starlight Night Vision
SPECIFICATION
Overall
Model: ZT30
Video Output Port: Ethernet
Control Signal Input Port:
- S.Bus, UART
- UDP (Ethernet)
High-Accuracy 3-Axis Stabilization: Yaw, Pitch, Roll
Working Voltage: 11 to 25.2 V
Power Consumption: Average 9 W, Summit 20 W
Waterproof Level: IP4X
Working Temperature: -10 ~ 50 ℃
Video Output Port: Ethernet
Control Signal Input Port:
- S.Bus, UART
- UDP (Ethernet)
High-Accuracy 3-Axis Stabilization: Yaw, Pitch, Roll
Working Voltage: 11 to 25.2 V
Power Consumption: Average 9 W, Summit 20 W
Waterproof Level: IP4X
Working Temperature: -10 ~ 50 ℃
Dimension: 182*140*134.5 mm (including the quick release anti-vibration claw)
Weight: 870 g (including the quick release anti-vibration claw)

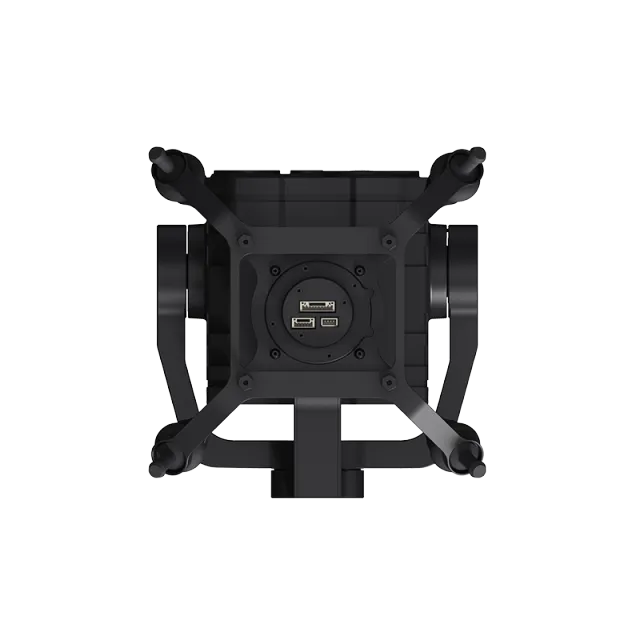

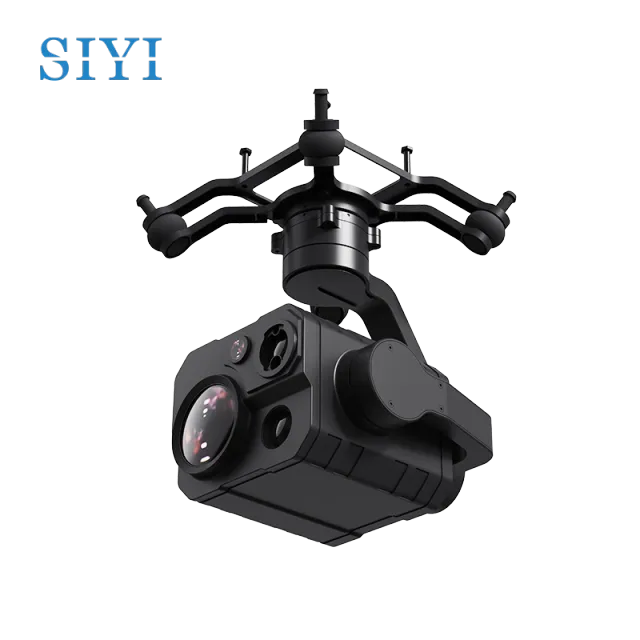

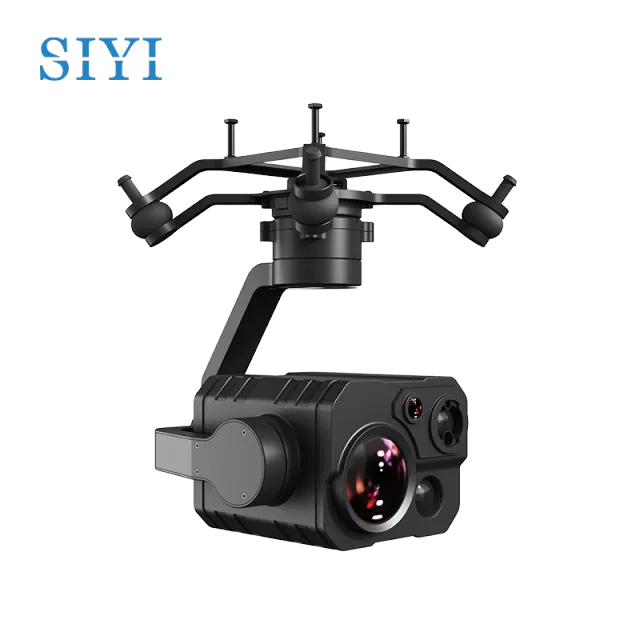

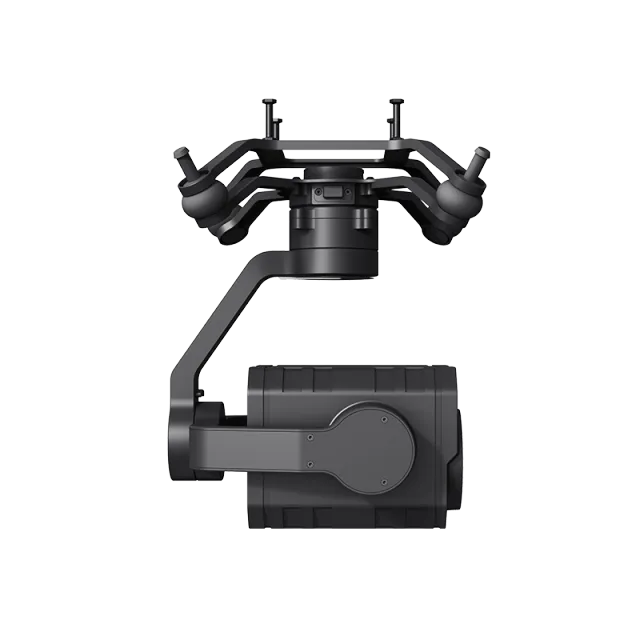

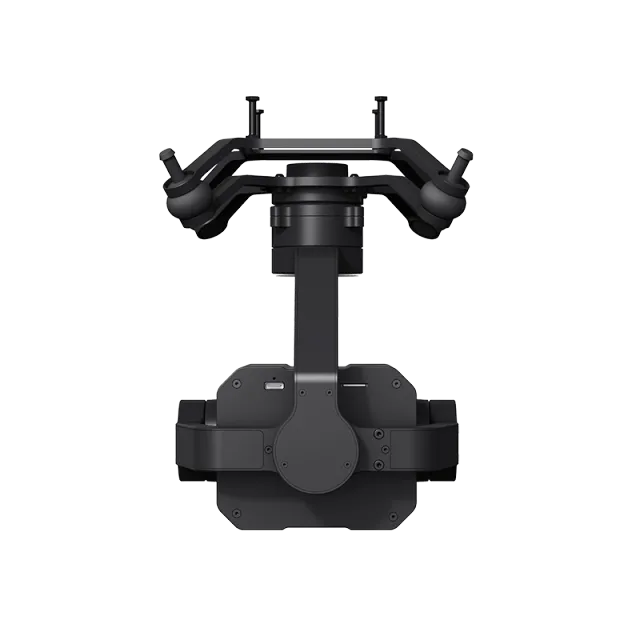

ZT30 Quick Release Anti-Vibration Claw
Dimension: 141*140*42.5 mm
Weight: 104 g
Weight: 104 g
Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Controllable Yaw Angle: Limitless
Roll Angle: -45° to +45°
Controllable Pitch Angle: -90° to +25°
Controllable Yaw Angle: Limitless
Roll Angle: -45° to +45°
Zoom Camera
Lens: 30X Optical Zoom (180X Hybrid Zoom)
Focal Length: 4.8% to 149 mm (±5%)
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
Aperture: F1.3 to F4.8 (±5%)
FOV: Horizontal 62°
Video Recording Resolution:
- 4K (4096 x 2160) @ 30 fps
- 2K (2560 x 1440) @ 30 fps
- 1080p (1920 x 1080) @ 30 fps
- 720p (1280 x 720) @ 30 fps
- 4K (4096 x 2160) @ 30 fps
- 2K (2560 x 1440) @ 30 fps
- 1080p (1920 x 1080) @ 30 fps
- 720p (1280 x 720) @ 30 fps
Still Photo Resolution: 4K (4096 x 2160)
Video Storage Bitrate: 15 Mbps (H.265 codec)
Thermal Imaging Camera
Resolution: 640 x 512
Digital Zoom: 2X
Lens
- Focal Length: 19 mm
Digital Zoom: 2X
Lens
- Focal Length: 19 mm
- Aperture: F1.1
- Fixed Focus
- Athermalization
- Fixed Focus
- Athermalization
Wavelength Range: 8 ~ 14 um
Temperature Measuring Range
- High Gain: -20 ~ +150℃
- Low Gain: 0 ~ +550℃
Temperature Measuring Accuracy
- ±2℃ (-20 ~ +150℃)
- ±3℃ (0 ~ +550℃)
Temperature Measuring Mode
- Point to Measurement
- Full Screen Measurement
General Camera SpecsTemperature Measuring Range
- High Gain: -20 ~ +150℃
- Low Gain: 0 ~ +550℃
Temperature Measuring Accuracy
- ±2℃ (-20 ~ +150℃)
- ±3℃ (0 ~ +550℃)
Temperature Measuring Mode
- Point to Measurement
- Full Screen Measurement
Wide Angle Camera
Image Sensor: 1/2.8 Inch, 4 MP effective resolution
Equivalent Focal Length: 21 mm
FOV: Horizontal 88°
Image Sensor: 1/2.8 Inch, 4 MP effective resolution
Equivalent Focal Length: 21 mm
FOV: Horizontal 88°
Video Recording Resolution: 2K (2560 x 1440) @ 30 fps
Still Photo Resolution: 2K (2560 x 1440)
Range Finder
Range: 5 ~ 1200 m
Wavelength Range: 900 ~ 908 nm
Resolution: 0.1 m
Ranging Accuracy:
- ±1 m (3 ~ 100 m)
- ±1 + L*0.25% m, L=Length (100 ~ 600 m)
Laser Pulse Frequency: 3 Hz
Max Laser Power: 5 mW
Range Finder
Range: 5 ~ 1200 m
Wavelength Range: 900 ~ 908 nm
Resolution: 0.1 m
Ranging Accuracy:
- ±1 m (3 ~ 100 m)
- ±1 + L*0.25% m, L=Length (100 ~ 600 m)
Laser Pulse Frequency: 3 Hz
Max Laser Power: 5 mW
Video Storage Bitrate: 15 Mbps (H.265 codec)
File Storage Format: FAT32
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
