Description

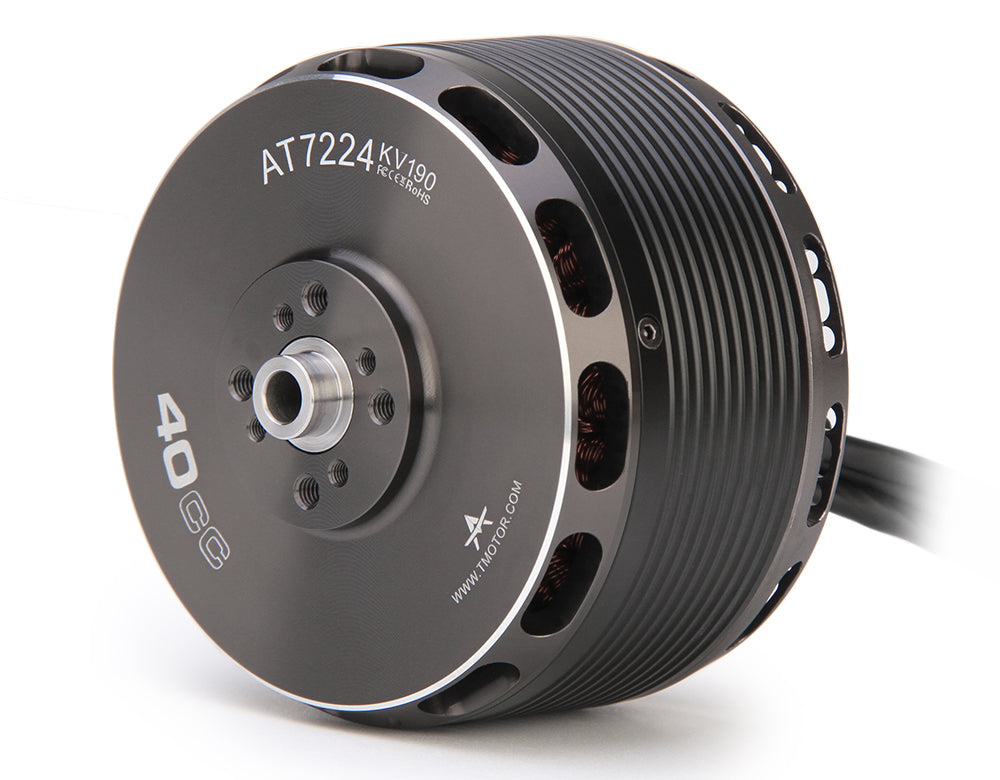

About T-MOTOR AT7224 40CC VTOL Fixed Wing Aircraft Long Shaft Brushless Motor
AT7224 is a hi-end motor suitable for larger airplanes of the Outdoor category. T-MOTOR powerful AT7224 enables to mounting on the fixed-wing and multicopter.
The 6000w maximum power provides strong power for 40CC airplane with 17.72kg thrust. It supports 10-12S is capable to reach currents up to 135A shortly.
AT7224 40CC Highlights:
1.Light and flexible
2.Robust and enjoyable
3.Precise and smooth
Packing List Includes:
1x T-Motor AT7224 Motor
1x Hardware Kit
Matching Guide:
AT 115A ESC
Specifications
| Test Item | Long Shaft KV160 |
|---|---|
| Weight (Incl. Cable) | 780g |
| Motor Dimensions | Φ81.4*66.9mm |
| Internal Resistance | 24mΩ |
| Lead | Enameled Wire 100mm |
| Configuration | 24N22P |
| Shaft Diameter | IN：10mmOUT：10mm |
| Rated Voltage(Lipo) | 10-12S |
| Idle Current(10V) | 3.1A |
| Peak Current(180s) | 105A |
| Max Power (180S) | 4800W/12S |
