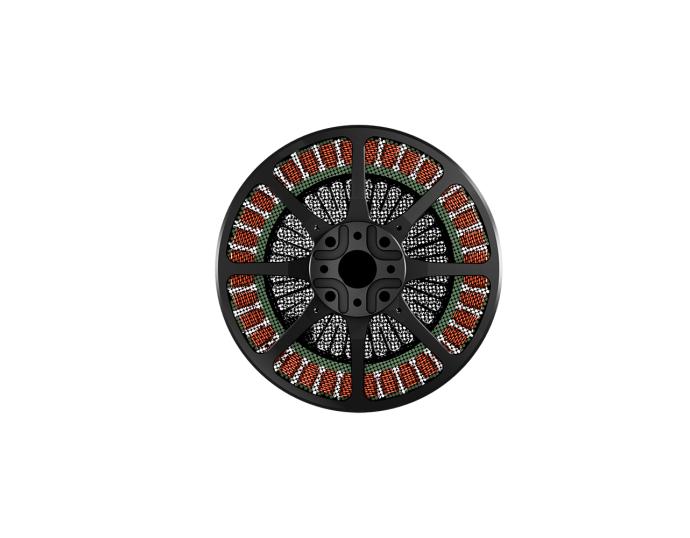

About T-MOTOR U8 Lite L Efficiency Multirotor UAV Motor KV110
T-MOTOR U8 Lite L KV110 delivers exceptional thrust up to 11.2kg with an ultra-light design for extended flight durations. Built with imported custom bearings, it features a redesigned structure tested for axial and radial stresses, ensuring a lifespan of 1,000 operational hours and up to 1,500 flights. Its advanced magnetic circuit matches the efficiency of the U8 Lite, offering unmatched power and reliability.
U8 Lite L KV110 Highlights:
1.Max. thrust :11.2kg
2.MTBF:About 1000hours
3.Features:Industrial Grade, Waterproof, dustproof, low noise, large bearings
4.Industrial grade, dust proof, water proof.
Application Areas:
Surveillance, cruise, security and protection, surveying and mapping.
Packing List Includes:
1x T-MOTOR U8 Lite L Motor KV110
1x Hardware pack
Matching Guide:
T-MOTOR G30*10.5 Prop
Specifications
| KV | 95 |
|---|---|
| Rated Voltage(Lipo) | 12S(4.2V/pc) / 48-52V |
| Motor Weight (Incl. Cable) | 280g |
| Motor Dimensions | Φ87.1×28.05mm |
| Idle Current(18V) | 0.7A |
| Shaft Diameter | 15mm |
| Internal Resistance | 146mΩ |
| Configu ration | 36N42P |
| Peak Current(180s) | 38A |
| Cable Length | 90mm |
| Max Power (180S) | 1790W |
| Packing Size | 130*111*50.6mm |
