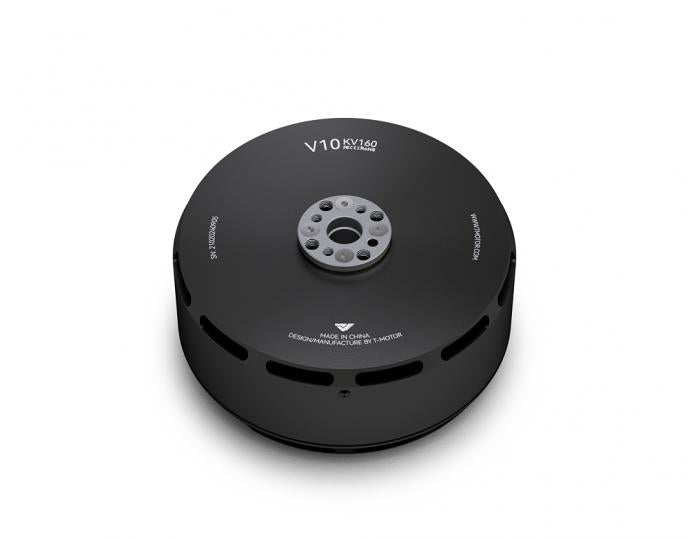

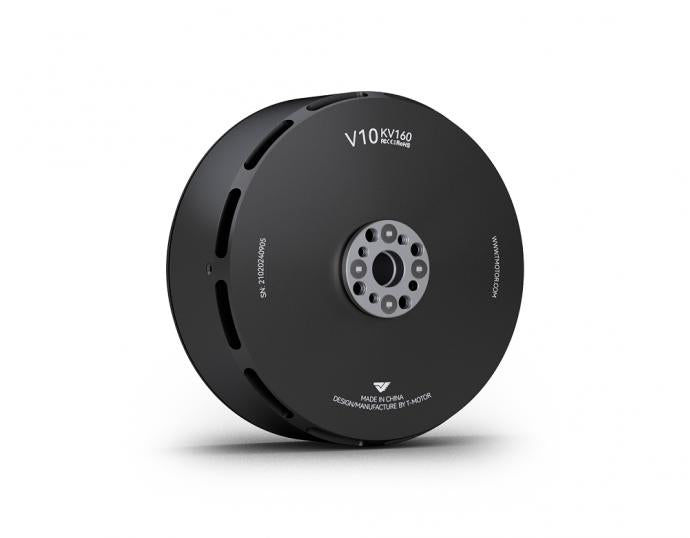

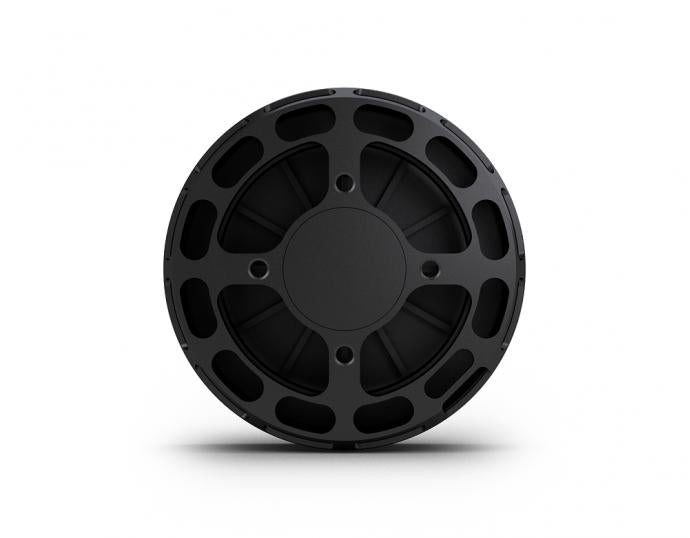

TMotor V10 KV160 12S Brushless Motor for Large Vtol

€369.00

SKU: TM-V10-KV160Categories: Motors

Technical Drawing


Model No./ Kv	V10 KV160	Magnet Temperature Resistance Grade	Class C 150℃
Motor Size(mm)	Φ106.6*48	Lead(mm)	Enameled Wire 150mm
Stator Technology	Anti-rust treatment ;180°C high temperature-resisting coatings	Enamelled Wires Temperature Resistance Grade	Class C 220℃
Configuration	36N42P	Coil Withdraw Voltage	1000V/5s
Shaft Diameter(mm)	IN:15	Rotor Dynamic Balance Standard	≤5mg
Bearing	Imported 6202ZZ	IP	IP35

KV Value	KV160	Battery (lipo)/Voltage Recommendation	12S(4.2V/Sl)/42-52V
Idle Current(18V)	4.4A	ESC Recommendation	FLAME 200A 14S
Peak Current(A)	155A/Continuous 180s	Propeller Recommendation	G30*10.5
Max. Power(W)	7000W/Continuous 180s	Motor Weight(g)	865g Weight (incl.cables)
Internal Resistance(mΩ)	12	Package Weight(g)	1230g

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature ℃)
V10 KV160	T-MOTOR G29*9.5	40%	47.55	5060	1.67	13.07	2562	621.35	8.15	127℃
		45%	47.43	6654	2.19	18.84	2929	893.77	7.45
		50%	47.33	8000	2.62	24.17	3199	1143.89	6.99
		55%	47.20	9465	3.10	30.78	3470	1452.91	6.51
		60%	47.06	10985	3.60	37.97	3724	1787.01	6.15
		65%	46.71	12420	4.06	46.13	3943	2154.98	5.76
		70%	46.60	13912	4.55	53.58	4155	2496.49	5.57
		75%	46.42	15575	5.10	63.45	4386	2945.13	5.29
		80%	46.21	17377	5.68	74.60	4621	3447.20	5.04
		90%	45.81	21004	6.91	100.19	5074	4589.40	4.58
		100%	45.23	25171	8.35	134.53	5539	6084.92	4.14
	T-MOTOR G30*10.5	40%	47.48	5816	1.99	15.29	2512	726.02	8.01	HOT
		45%	47.42	7276	2.48	20.26	2797	960.91	7.57
		50%	47.24	9186	3.15	28.46	3138	1344.32	6.83
		55%	47.08	10865	3.73	36.14	3397	1701.42	6.39
		60%	46.79	12523	4.30	44.44	3628	2079.35	6.02
		65%	46.64	14339	4.93	54.27	3864	2531.14	5.67
		70%	46.49	15824	5.45	63.16	4057	2936.51	5.39
		75%	46.25	17565	6.09	74.56	4263	3448.38	5.09
		80%	46.03	19445	6.74	87.05	4485	4006.83	4.85
		90%	45.52	23571	8.17	117.00	4901	5325.58	4.43
		100%	44.82	27976	9.75	155.92	5318	6988.97	4.00
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
