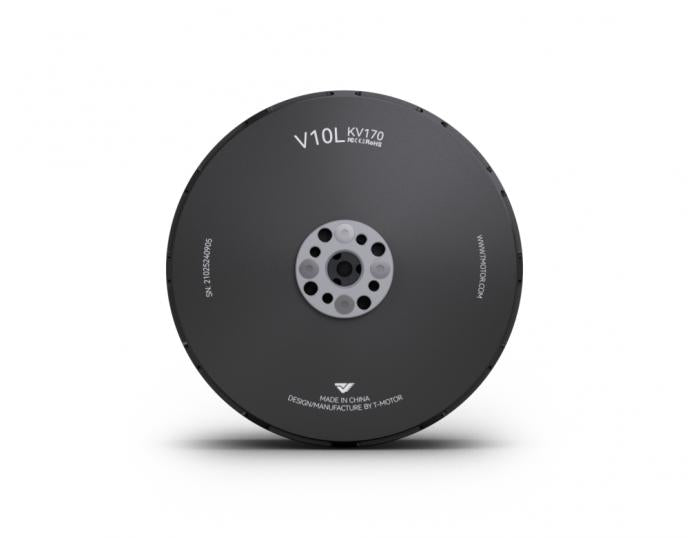

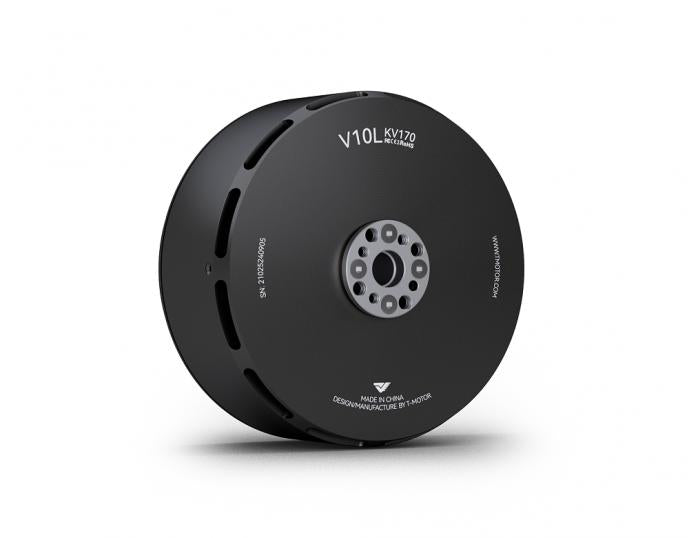

TMotor V10L KV170 12S Brushless Vtol Drone Motor

€399.00

SKU: TM-V10L-KV170Categories: Motors

Technical Drawing


Model No./ Kv	V10L KV170	Magnet Temperature Resistance Grade	180℃
Motor Size(mm)	Φ106.6*53	Lead(mm)	Enameled Wire 150mm
Stator Technology	Anti-rust treatment ;180°C high temperature-resisting coatings	Enamelled Wires Temperature Resistance Grade	Class C 220℃
Configuration	36N42P	Coil Withdraw Voltage	1000V/5s
Shaft Diameter(mm)	IN:15	Rotor Dynamic Balance Standard	≤5mg
Bearing	Imported 6202ZZ	IP	IP35

KV Value	KV170	Battery (lipo)/Voltage Recommendation	12S(4.2V/Sl)/42-52V
Idle Current(18V)	4.4A	ESC Recommendation	FLAME 200A 14S
Peak Current(A)	196A/Continuous 180s	Propeller Recommendation	G30*10.5
Max. Power(W)	9000W/Continuous 180s	Motor Weight(g)	980g Weight (incl. cables)
Internal Resistance(mΩ)	8	Package Weight(g)	1340g

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature ℃)
V10L KV170	T-MOTOR G29*9.5	40%	47.39	6527	2.15	20.29	2887	961.70	6.79	121℃
		45%	47.29	7915	2.59	26.22	3177	1240.05	6.38
		50%	47.17	9501	3.12	33.26	3472	1568.88	6.06
		55%	47.02	11254	3.69	41.80	3759	1965.33	5.73
		60%	46.86	12909	4.24	50.47	4003	2364.78	5.46
		65%	46.59	14691	4.81	60.59	4254	2822.56	5.21
		70%	46.38	16509	5.42	72.05	4509	3341.97	4.94
		75%	46.20	18463	6.08	84.09	4751	3884.70	4.76
		80%	45.94	20407	6.73	98.31	4978	4516.04	4.52
		90%	45.31	24463	8.14	131.18	5446	5944.10	4.12
		100%	44.53	28869	9.69	172.33	5888	7673.50	3.76
	T-MOTOR G30*10.5	40%	47.39	7033	2.41	21.25	2751	1007.10	6.98	HOT
		45%	47.24	8969	3.08	29.56	3108	1396.31	6.42
		50%	47.08	10802	3.71	37.81	3392	1780.30	6.07
		55%	46.86	12716	4.38	48.01	3669	2250.11	5.65
		60%	46.54	14600	5.03	58.24	3903	2710.09	5.39
		65%	46.32	16335	5.66	69.31	4128	3210.35	5.09
		70%	46.08	18570	6.41	82.55	4365	3804.08	4.88
		75%	45.87	20650	7.14	97.10	4598	4453.91	4.64
		80%	45.62	22826	7.89	113.22	4808	5164.64	4.42
		90%	44.95	27116	9.46	149.64	5247	6726.47	4.03
		100%	44.08	31798	11.23	196.24	5651	8650.57	3.68
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
